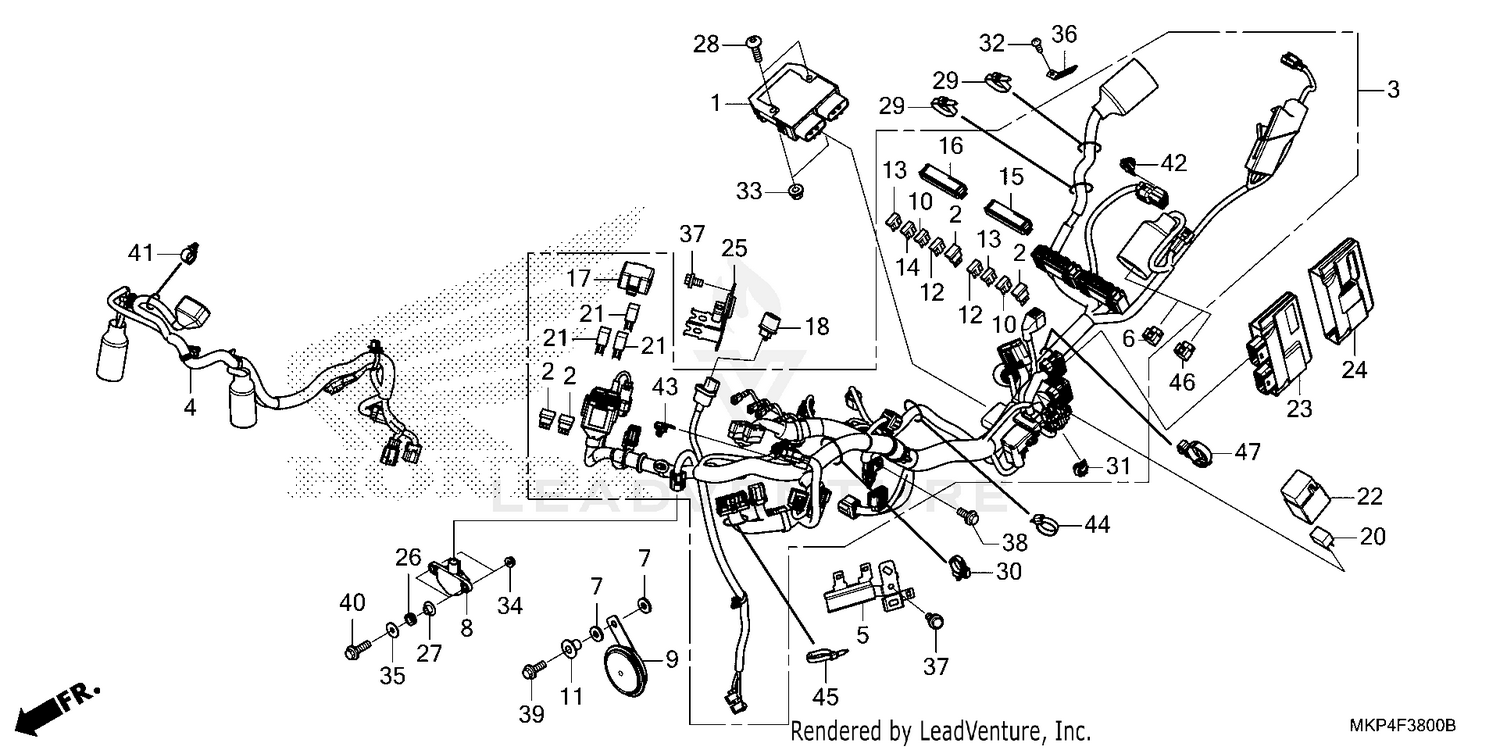

| Ref | Part Number | Description |
|---|
| 1 |
31600-MKN-D51 |
RECTIFIER ASSY., REGULATOR Price: $228.55 |
| 2 |
31730-MAS-601 |
DIODE ASSY., THREE WAY (SUMITOMO) Price: $13.09 |
| 3 |
32100-MKP-AL0 |
WIRE HARNESS Price: $1,660.47 |
| 4 |
32103-MKP-A80 |
SUB-HARNESS, FR. Price: $145.26 |
| 5 |
32206-MGZ-J00 |
STAY, CONNECTOR Price: $8.93 |
| 7 |
33714-KL3-620 |
RUBBER, TAILLIGHT BRACKET Price: $2.87 |
| 8 |
35160-MGS-D31 |
SENSOR ASSY., BANK ANGLE Price: $171.40 |
| 9 |
38110-MGZ-J01 |
HORN (HIGH) Price: $31.75 |
| 10 |
38221-SNA-A31 |
FUSE, BLADE (7.5A) Price: $3.90 |
| 11 |
38117-KFE-701 |
COLLAR, HORN SETTING Price: $0.87 |
| 12 |
38221-SNA-A41 |
FUSE, BLADE (10A) Price: $3.90 |
| 13 |
38221-SNA-A51 |
FUSE, BLADE (15A) Price: $3.90 |
| 14 |
38221-SNA-A81 |
FUSE, BLADE (30A) Price: $2.53 |
| 15 |
38255-MKP-T80 |
COVER (UPPER) Price: $20.95 |
| 16 |
38256-MKP-T80 |
COVER (UPPER) Price: $20.95 |
| 17 |
38281-MGZ-J01 |
COVER, RELAY BOX Price: $16.71 |
| 18 |
38301-KZZ-J01 |
RELAY, TURN SIGNAL Price: $64.98 |
| 20 |
38501-KWN-901 |
RELAY, POWER (MICRO ISO 4P) (OMRON) Price: $7.69 |
| 21 |
38501-MKP-DN1 |
RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003. Price: $5.85 |
| 22 |
38506-KZZ-900 |
COVER, RELAY (2P) Price: $4.13 |
| 23 |
38770-MKP-A81 |
PGM-FI UNIT Price: $558.41 |
| 24 |
38774-MKP-D00 |
CUSHION, PGM-FI UNIT Price: $4.47 |
| 25 |
50194-MGZ-J00 |
STAY, RELAY BOX Price: $10.78 |
| 26 |
64535-MFJ-D00 |
RUBBER, SIDE COVER Price: $2.22 |
| 27 |
90129-MGZ-J00 |
COLLAR, BANK ANGLE SENSOR Price: $2.62 |
| 28 |
90135-K87-A00 |
SCREW, PAN (6X25) Price: $0.82 |
| 29 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 30 |
90652-HC4-003 |
CLAMP, HARNESS Price: $7.47 |
| 31 |
91535-STK-003 |
CLIP, CONNECTOR (DARK BLUE) Price: $7.70 |
| 32 |
93903-24380 |
SCREW, TAPPING (4X12) Price: $0.95 |
| 33 |
94050-06070 |
NUT, FLANGE (6MM) Price: $1.52 |
| 34 |
94050-06080 |
NUT, FLANGE (6MM) Price: $0.68 |
| 35 |
94103-06800 |
WASHER, PLAIN (6MM) Price: $0.82 |
| 36 |
94591-49000 |
CLIP (4X90) Price: $3.78 |
| 37 |
95701-06010-00 |
BOLT, FLANGE (6X10) BOLT, FLANGE (6X12) Price: $1.32 |
| 38 |
95701-06014-08 |
BOLT, FLANGE (6X14) Price: $1.70 |
| 39 |
95701-06020-07 |
BOLT, FLANGE (6X20) Price: $1.70 |
| 40 |
95701-06022-08 |
BOLT, FLANGE (6X22) Price: $1.88 |
| 41 |
90683-SA0-003 |
CLIP, WIRE HARNESS (25MM) Price: $10.40 |
| 42 |
91535-TA0-003 |
CLIP, CONNECTOR (DARK BROWN) Price: $5.20 |
| 43 |
91565-SEL-003 |
CLIP, CONNECTOR (BLACK) (Honda Code 7386865) Price: $4.62 |
