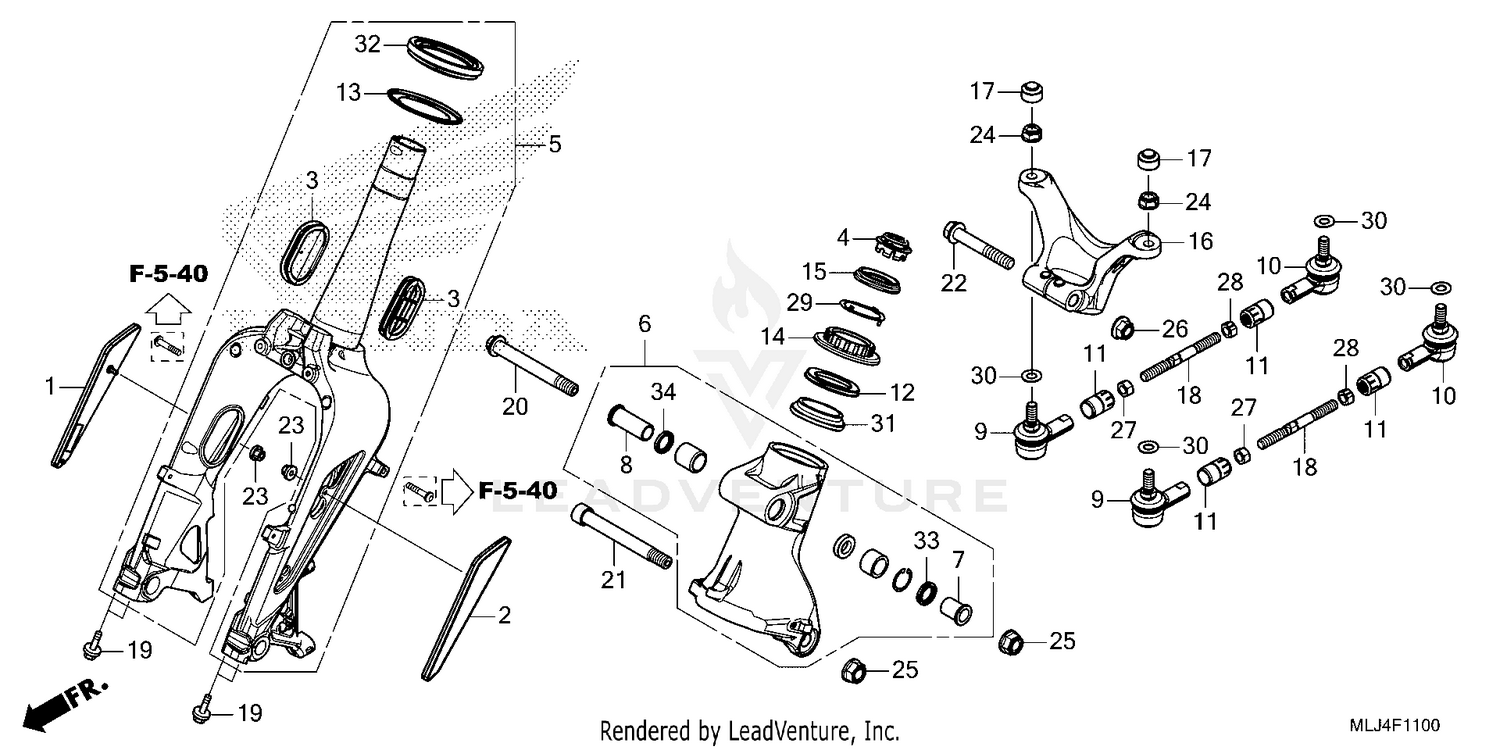

| Ref | Part Number | Description |
|---|
| 1 |
33741-MKC-A05 |
REFLECTOR, R. FR. REFLEX Price: $61.93 |
| 2 |
33742-MKC-A05 |
REFLECTOR, L. FR. REFLEX Price: $61.93 |
| 3 |
51114-MKC-A00 |
GROMMET, FR. FORK Price: $8.20 |
| 4 |
51117-MKC-A00 |
CAP, STEM PIPE Price: $9.91 |
| 5 |
51119-MKC-A00ZB |
FORK SUB-ASSY., FR. (TYPE1) Price: $1,426.35 |
| 6 |
51200-MKC-A00ZB |
HOLDER ASSY., FR. FORK (TYPE1) Price: $405.33 |
| 7 |
51365-MKC-A00 |
COLLAR, L. PIVOT DISTANCE Price: $15.64 |
| 8 |
51366-MKC-A00 |
COLLAR B, R. PIVOT DISTANCE Price: $21.55 |
| 9 |
53157-MKC-A01 |
END, R. TIE ROD (RIGHT HAND THREAD) Price: $57.78 |
| 10 |
53158-MKC-A01 |
END, L. TIE ROD (LEFT HAND THREAD) Price: $57.78 |
| 11 |
53159-MKC-A00 |
COVER, TIE ROD Price: $16.13 |
| 12 |
53214-MKC-A01 |
DUST SEAL (UPPER) Price: $16.36 |
| 13 |
53215-MKC-A01 |
DUST SEAL (LOWER) Price: $22.36 |
| 14 |
53220-MKC-A00 |
THREAD, STEERING HEAD TOP Price: $44.80 |
| 15 |
53233-MKC-A00 |
SEAL, FR. FORK Price: $10.51 |
| 16 |
53240-MKC-A00 |
ARM, STEERING Price: $158.96 |
| 17 |
53242-MKC-A00 |
CAP, NUT Price: $11.00 |
| 18 |
53521-MKC-A00 |
TIE ROD, STEERING Price: $12.62 |
| 19 |
90134-MEL-000 |
BOLT (8X45) Price: $3.53 |
| 20 |
90174-MKC-A00 |
BOLT, HEAD PIPE PIVOT (UPPER) Price: $32.87 |
| 21 |
90175-MKC-A00 |
BOLT, HEAD PIPE PIVOT (LOWER) Price: $35.69 |
| 22 |
90176-MKC-A00 |
BOLT, FLANGE (12X78) Price: $9.33 |
| 23 |
90301-MG8-000 |
NUT, FLANGE (5MM) (FUSE RASHI) Price: $5.33 |
| 24 |
90304-GE8-003 |
NUT, U (10MM) NUT, SELF-LOCK (10MM) Price: $4.62 |
| 25 |
90305-MCB-610 |
NUT, SPECIAL U (16MM) Price: $9.62 |
| 26 |
90306-KV6-911 |
NUT, U FLANGE (12MM) Price: $2.98 |
| 27 |
90311-MKC-A00 |
NUT A, HEX. (10MM) Price: $3.78 |
| 28 |
90315-MKC-A00 |
NUT B, HEX. (10MM) (LH) Price: $3.78 |
| 29 |
90502-MKC-A00 |
WASHER, LOCK Price: $8.38 |
| 30 |
90504-MKC-A00 |
WASHER (10X20X1.0) Price: $3.55 |
| 31 |
91061-MKC-A01 |
BEARING, HEAD PIPE (UPPER) Price: $44.62 |
| 32 |
91062-MKC-A01 |
BEARING, HEAD PIPE (LOWER) Price: $103.58 |
| 33 |
91253-HL1-A01 |
OIL SEAL (22X30X5) Price: $7.29 |
