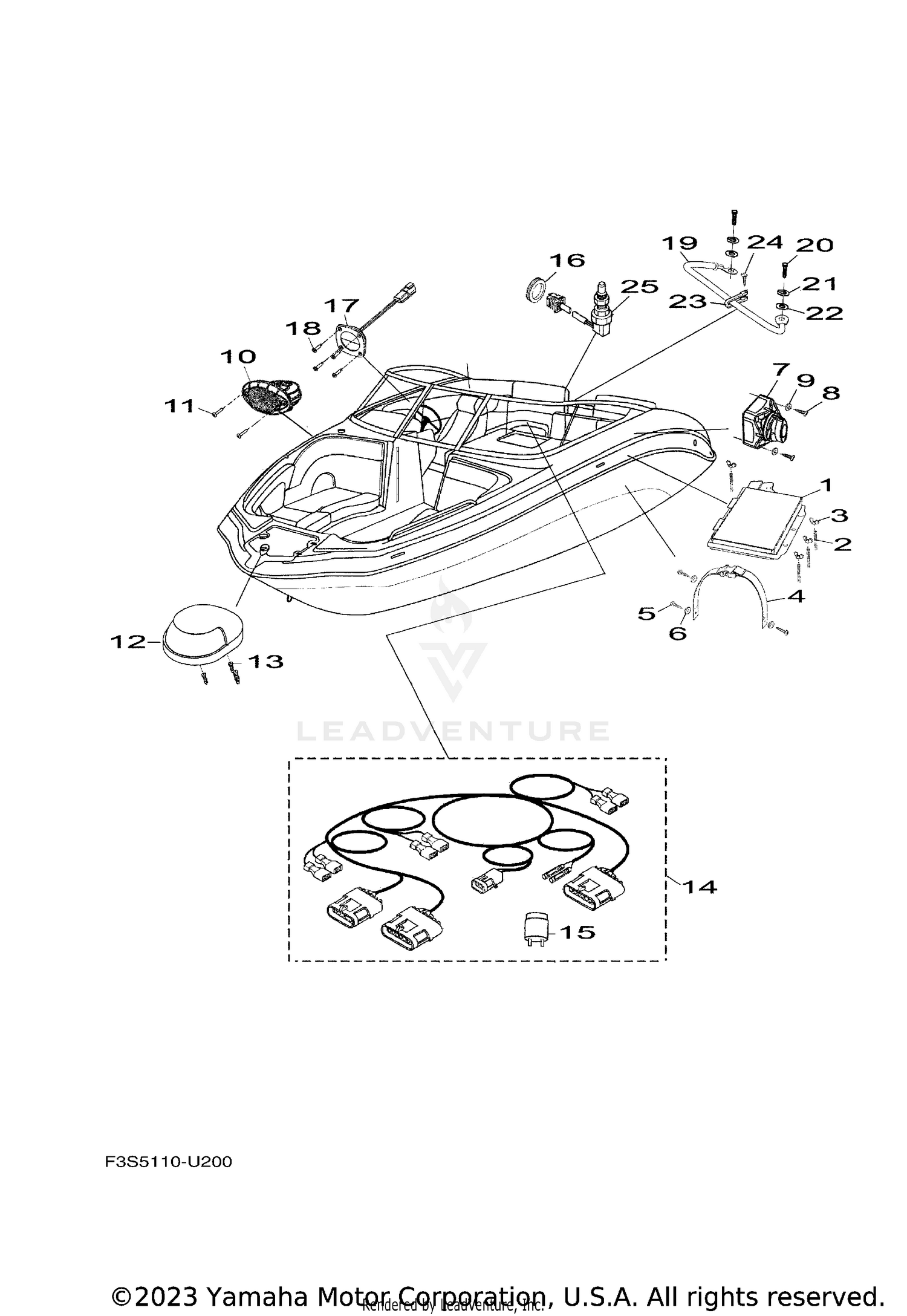

| Ref | Part Number | Description |
|---|
| 1 |
F3R-U8212-00-00 |
LID, BATTERY CASE Price: $66.99 |
| 2 |
90116-14S32-00 |
BOLT, STUD Price: $16.99 |
| 3 |
90175-14SA1-00 |
NUT, WING Price: $1.20 |
| 4 |
F3R-U821D-00-00 |
BAND, BATTERY 1 Price: $31.99 |
| 5 |
90167-08S10-00 |
SCREW, TAPPING Price: $5.99 |
| 6 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 7 |
F2G-U8314-00-00 |
SWITCH,BATTERY Price: $96.99 |
| 8 |
90167-08S24-00 |
SCREW, TAPPING Price: $5.99 |
| 9 |
90204-10S00-00 |
WASHER, SPRING Price: $6.99 |
| 10 |
F3H-U8304-00-00 |
SINGLE HORN ASSY. Price: $77.99 |
| 11 |
90167-08S16-00 |
SCREW, TAPPING Price: $0.25 |
| 12 |
GP1-U8130-00-00 |
BOW LIGHT ASSY. Price: $88.99 |
| 13 |
90167-08S10-00 |
SCREW, TAPPING Price: $5.99 |
| 14 |
F3S-U827L-21-00 |
WIRE HARNESS 9 This part replaces F3S-U827L-20-00. Price: $2,918.99 |
| 15 |
F3S-U8341-00-00 |
BUZZER Price: $115.99 |
| 16 |
F1C-U136D-10-00 |
GROMMET Price: $5.99 |
| 17 |
F3F-U8124-00-00 |
LIGHT, ROOM 1 Price: $34.99 |
| 18 |
90161-06S12-00 |
SCREW, COUTERSUNK Price: $5.99 |
| 19 |
F0R-U827J-00-00 |
WIRE HARNESS 7 Price: $83.99 |
| 20 |
90101-08SA3-00 |
BOLT Price: $5.99 |
| 21 |
90204-08800-00 |
WASHER, SPRING Price: $5.99 |
| 22 |
9299R-08600-00 |
WASHER Price: $6.99 |
| 23 |
90464-44801-00 |
CLAMP Price: $0.20 |
| 24 |
90167-08S12-00 |
SCREW, TAPPING Price: $5.99 |
