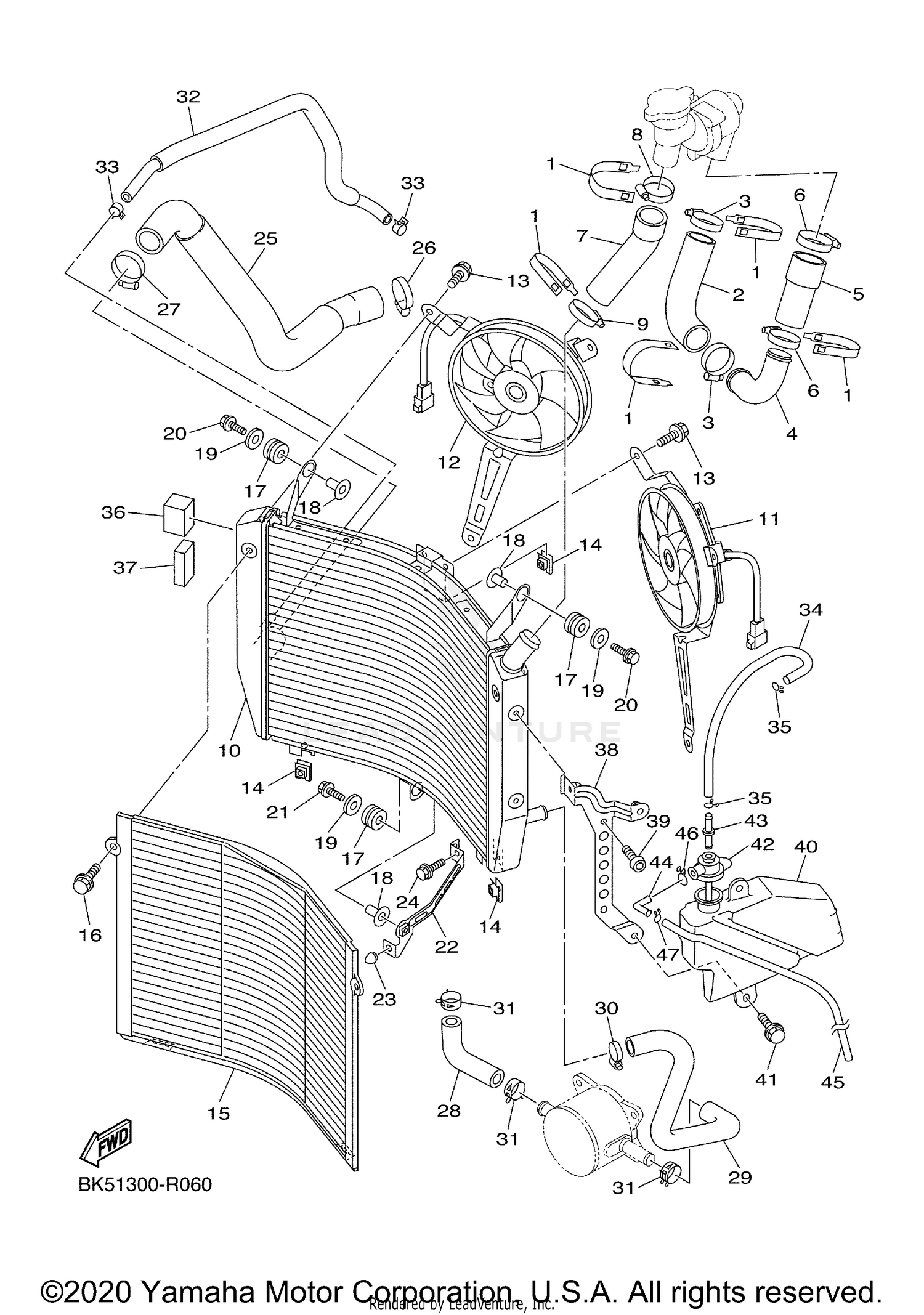

| Ref | Part Number | Description |
|---|
| 1 |
5GV-1246E-00-00 |
COVER 2 Price: $5.49 |
| 2 |
3P6-12551-00-00 |
HOSE 7 Price: $24.99 |
| 3 |
90450-38040-00 |
HOSE CLAMP ASSY Price: $19.49 |
| 4 |
3P6-12482-02-00 |
PIPE 2 Price: $47.99 |
| 5 |
3P6-12588-00-00 |
HOSE 5 Price: $14.49 |
| 6 |
90450-38040-00 |
HOSE CLAMP ASSY Price: $19.49 |
| 7 |
3P6-1243F-00-00 |
HOSE, 3 Price: $19.99 |
| 8 |
90450-38040-00 |
HOSE CLAMP ASSY Price: $19.49 |
| 9 |
90450-32003-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 10 |
1MC-12461-00-00 |
RADIATOR COMP Price: $479.99 |
| 11 |
1MC-12405-02-00 |
BLOWER ASSY Price: $156.99 |
| 12 |
1MC-12405-12-00 |
BLOWER ASSY Price: $156.99 |
| 13 |
3D8-12675-00-00 |
BOLT, BLOWER HOLDING Price: $8.49 |
| 14 |
1AA-12535-00-00 |
PLATE Price: $15.49 |
| 15 |
3P6-12467-00-00 |
COVER, RADIATOR Price: $46.99 |
| 16 |
90119-06155-00 |
BOLT, WITH WASHER This part replaces 90119-06154-00. Price: $9.49 |
| 17 |
90480-15363-00 |
GROMMET Price: $9.49 |
| 18 |
90387-06039-00 |
COLLAR Price: $9.49 |
| 19 |
90201-063J2-00 |
WASHER, PLATE This part replaces 90201-06071-00. Price: $6.49 |
| 20 |
95817-06030-00 |
BOLT,FLANGE This part replaces 95822-06030-00. Price: $4.65 |
| 21 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95822-06025-00. Price: $1.75 |
| 22 |
3P6-12464-00-00 |
STAY, RADIATOR Price: $27.99 |
| 23 |
5A8-21639-00-00 |
DAMPER 2 Price: $9.49 |
| 24 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95822-06012-00. Price: $1.95 |
| 25 |
3P6-12589-00-00 |
HOSE 6 Price: $61.99 |
| 26 |
90450-38003-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 27 |
90450-38040-00 |
HOSE CLAMP ASSY Price: $19.49 |
| 28 |
5JW-12551-00-00 |
HOSE 7 Price: $22.99 |
| 29 |
3P6-12552-00-00 |
HOSE 8 Price: $32.99 |
| 30 |
90450-18M09-00 |
HOSE CLAMP ASSY This part replaces 90450-22001-00. Price: $11.49 |
| 31 |
90467-200A0-00 |
CLIP Price: $9.99 |
| 32 |
3P6-1243A-00-00 |
HOSE 1 Price: $46.99 |
| 33 |
90467-10038-00 |
CLIP Price: $2.30 |
| 34 |
3P6-1244G-00-00 |
HOSE, 4 Price: $11.99 |
| 35 |
90467-08021-00 |
CLIP This part replaces 90467-08075-00. Price: $9.49 |
| 36 |
90520-20002-00 |
DAMPER, PLATE Price: $1.75 |
| 37 |
90520-10020-00 |
DAMPER, PLATE Price: $1.75 |
| 38 |
3P6-21873-10-00 |
BRACKET, RECOVERY TANK Price: $35.99 |
| 39 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 40 |
3P6-21871-00-00 |
TANK, RECOVERY Price: $48.99 |
| 41 |
90119-06155-00 |
BOLT, WITH WASHER Price: $9.49 |
| 42 |
3P6-21875-00-00 |
CAP Price: $10.49 |
| 43 |
4XY-14568-00-00 |
JOINT Price: $7.49 |
| 44 |
26H-21828-00-00 |
ELBOW Price: $30.99 |
| 45 |
3P6-21816-01-00 |
PIPE 1 Price: $22.99 |
| 46 |
90467-10M04-00 |
CLIP Price: $7.70 |
