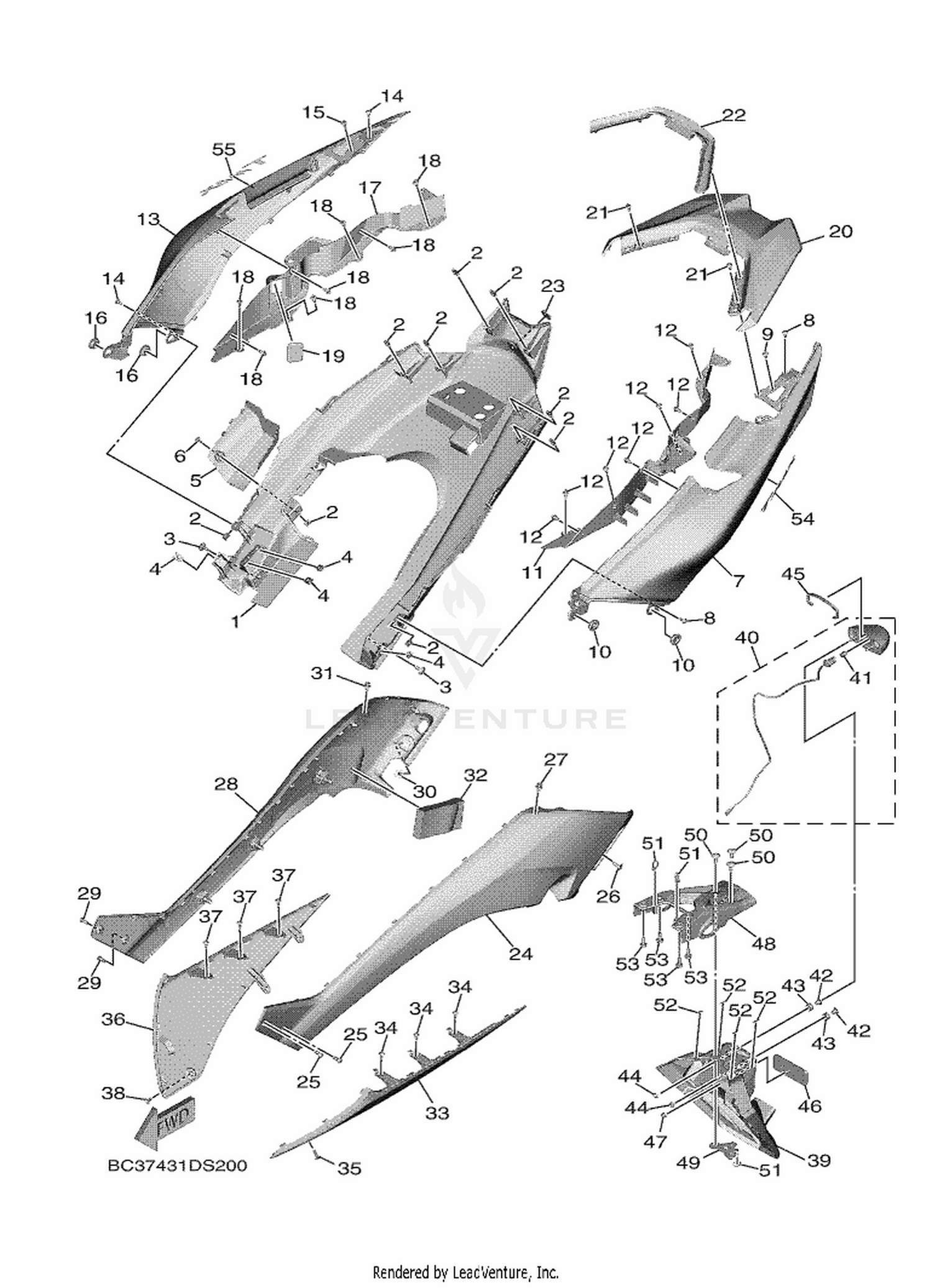

| Ref | Part Number | Description |
|---|
| 1 |
BC3-2171E-00 |
COVER, SIDE 5 Price: Call Us |
| 2 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 3 |
90111-06089 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 4 |
90183-060A6 |
NUT, SPRING Price: Call Us |
| 5 |
BC3-2177B-00 |
LID, COVER Price: Call Us |
| 6 |
90167-05079 |
SCREW, TAPPING Price: Call Us |
| 8 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 9 |
90269-06008 |
RIVET Price: Call Us |
| 10 |
90480-01559 |
GROMMET Price: Call Us |
| 11 |
BC3-2172G-00 |
PANEL 3 Price: Call Us |
| 12 |
90269-06008 |
RIVET Price: Call Us |
| 14 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 15 |
90269-06008 |
RIVET Price: Call Us |
| 16 |
90480-01559 |
GROMMET Price: Call Us |
| 17 |
BC3-2172H-00 |
PANEL 4 Price: Call Us |
| 18 |
90269-06008 |
RIVET Price: Call Us |
| 19 |
90338-36004 |
PLUG Price: Call Us |
| 21 |
90269-06008 |
RIVET Price: Call Us |
| 22 |
BC3-2175N-00 |
COVER, FLANGE Price: Call Us |
| 23 |
8GC-2836B-02 |
TUNING FORK MARK Price: Call Us |
| 25 |
92014-06012 |
BOLT, BUTTON HEAD Price: Call Us |
| 27 |
90269-06081 |
RIVET Price: Call Us |
| 29 |
92014-06012 |
BOLT, BUTTON HEAD Price: Call Us |
| 31 |
90269-06081 |
RIVET Price: Call Us |
| 32 |
90520-20010 |
DAMPER, PLATE Price: Call Us |
| 34 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 35 |
90167-05076 |
SCREW, TAPPING Price: Call Us |
| 37 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 38 |
90167-05076 |
SCREW, TAPPING Price: Call Us |
| 39 |
BC3-21629-00 |
GUARD, MUD Price: Call Us |
| 40 |
BC3-84740-00 |
LICENCE LIGHT ASSY Price: Call Us |
| 42 |
90387-05042 |
COLLAR Price: Call Us |
| 43 |
90480-11009 |
GROMMET Price: Call Us |
| 44 |
95602-05200 |
NUT, SELF-LOCKING Price: Call Us |
| 45 |
BC3-21773-00 |
GROMMET Price: Call Us |
| 46 |
3Y6-85130-02 |
REAR REFLECTOR ASSY Price: Call Us |
| 47 |
95607-05200 |
NUT, U FLANGE Price: Call Us |
| 48 |
BC3-21671-00 |
REINF., REAR FENDER Price: Call Us |
| 49 |
BC3-2161G-00 |
BRACKET 6 Price: Call Us |
| 50 |
90111-06089 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 51 |
90465-10098 |
CLAMP Price: Call Us |
| 52 |
BC3-21669-00 |
SEAL Price: Call Us |
| 53 |
95D32-06016 |
BOLT, FLANGE DEEP RECESS Price: Call Us |
| 54 |
5GJ-2173B-20 |
EMBLEM 3D Price: Call Us |
