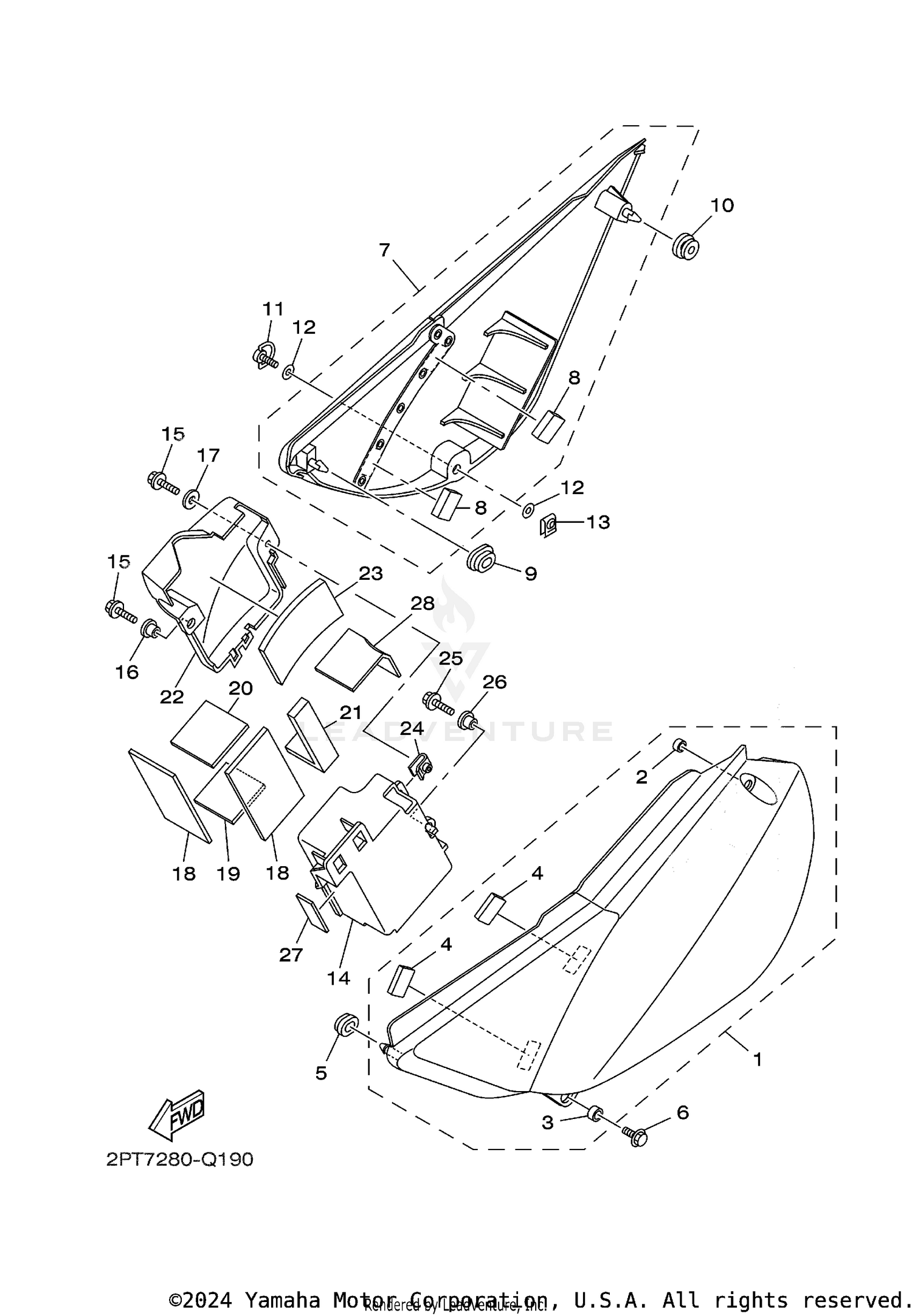

| Ref | Part Number | Description |
|---|
| 1 |
1B2-F1710-10-00 |
SIDE COVER ASSY 1 Price: $28.99 |
| 2 |
90387-064X4-00 |
COLLAR Price: $8.49 |
| 3 |
90387-1001B-00 |
COLLAR Price: $3.55 |
| 4 |
1B2-21717-00-00 |
DAMPER Price: $5.99 |
| 5 |
90480-01558-00 |
GROMMET This part replaces 90480-01868-00. Price: $4.65 |
| 6 |
90119-06018-00 |
BOLT, WITH WASHER Price: $9.49 |
| 7 |
1B2-F1720-10-00 |
SIDE COVER ASSY 2 Price: $37.99 |
| 8 |
1B2-21778-00-00 |
DAMPER, LOCATING 1 Price: $5.99 |
| 9 |
90480-01558-00 |
GROMMET This part replaces 90480-01868-00. Price: $4.65 |
| 10 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 11 |
3FV-28386-00-00 |
HEAD Price: $44.99 |
| 12 |
2TK-21757-00-00 |
WASHER, SPECIAL 1 Price: $1.95 |
| 13 |
4XV-2177L-01-00 |
PLATE, SPRING Price: $7.49 |
| 14 |
1B2-F177G-00-00 |
BOX, BATTERY Price: $33.99 |
| 15 |
95817-06020-00 |
BOLT, FLANGE This part replaces 9580M-06020-00. Price: $3.50 |
| 16 |
90387-06178-00 |
COLLAR Price: $5.49 |
| 17 |
90201-06020-00 |
WASHER, PLATE This part replaces 90201-064H0-00. Price: $10.49 |
| 18 |
1B2-F174X-00-00 |
DAMPER Price: $2.35 |
| 19 |
1B2-F1746-00-00 |
DAMPER Price: $1.15 |
| 20 |
1B2-F174Y-01-00 |
DAMPER Price: $2.35 |
| 21 |
1B2-F1747-00-00 |
DAMPER Price: $1.15 |
| 22 |
1B2-H2129-10-00 |
COVER, BATTERY Price: $23.99 |
| 23 |
1B2-H2121-00-00 |
PAD, BATTERY Price: $4.60 |
| 24 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06800-00. Price: $7.49 |
| 25 |
95817-06016-00 |
BOLT, FLANGE This part replaces 9580M-06016-00. Price: $1.95 |
| 26 |
90387-087L0-00 |
COLLAR This part replaces 90387-061U9-00. Price: $9.49 |
| 27 |
1B2-F1639-01-00 |
DAMPER 2 Price: $0.40 |
