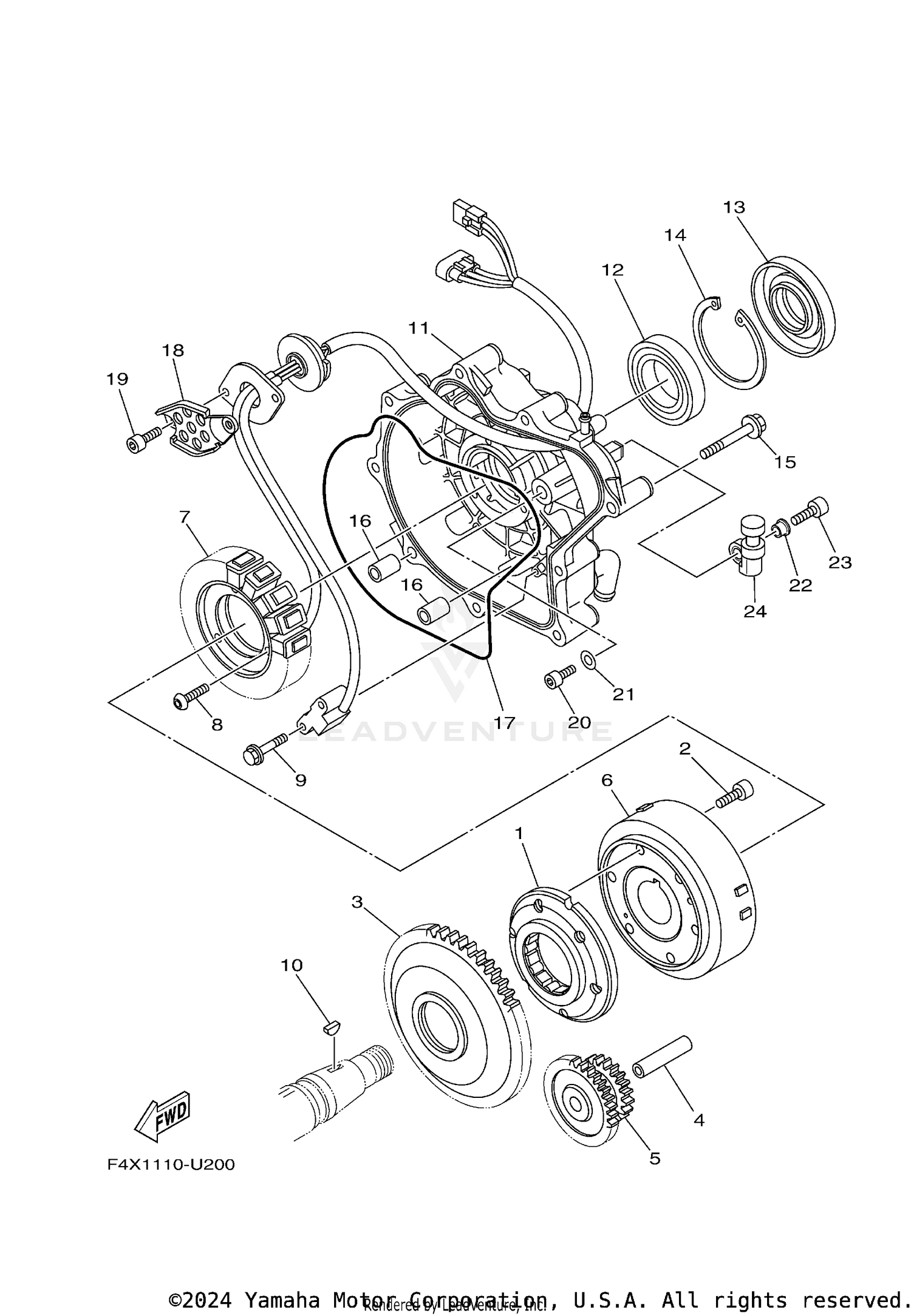

| Ref | Part Number | Description |
|---|
| 1 |
6S5-15590-00-00 |
STARTER ONE-WAY ASSY Price: $273.99 |
| 2 |
90111-08080-00 |
BOLT,HEX. SOCKET BUT This part replaces 90111-08003-00. Price: $2.35 |
| 3 |
6LE-15515-00-00 |
GEAR 3 This part replaces 6S5-15515-01-00. Price: $349.99 |
| 4 |
6S5-15521-00-00 |
SHAFT 1 Price: $10.49 |
| 5 |
6S5-15517-00-00 |
GEAR, IDLER 2 Price: $153.99 |
| 6 |
6JC-81450-00-00 |
ROTOR ASSY Price: $608.49 |
| 7 |
6JC-81410-01-00 |
STATOR ASSY This part replaces 6JC-81410-00-00. Price: $564.49 |
| 8 |
90149-06112-00 |
SCREW This part replaces 90149-06075-00. Price: $6.49 |
| 9 |
97513-05514-00 |
BOLT, WITH WASHER Price: $3.99 |
| 10 |
90280-03047-00 |
KEY, WOODRUFF Price: $6.49 |
| 11 |
6S5-81337-31-00 |
COVER, FLYWHEEL Price: $267.49 |
| 12 |
93306-00809-00 |
BEARING Price: $65.49 |
| 13 |
6LE-81167-00-00 |
OIL SEAL This part replaces 6S5-81167-10-00. Price: $73.99 |
| 14 |
93420-72065-00 |
CIRCLIP (70R) This part replaces 99009-72500-00. Price: $8.99 |
| 15 |
90105-08249-00 |
BOLT, FLANGE Price: $2.49 |
| 16 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 17 |
6S5-81168-00-00 |
O-RING Price: $42.99 |
| 18 |
6S5-81328-00-00 |
CLAMP Price: $8.49 |
| 19 |
91317-06014-00 |
BOLT,HEX.SOCKET HEAD Price: $10.49 |
| 20 |
91317-05010-00 |
BOLT, HEX. SOCKET HEAD Price: $2.75 |
| 21 |
90201-052E8-00 |
WASHER, PLATE Price: $5.49 |
| 22 |
90387-06M05-00 |
COLLAR Price: $8.70 |
| 23 |
90110-06114-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 91380-06020-00. Price: $11.49 |
