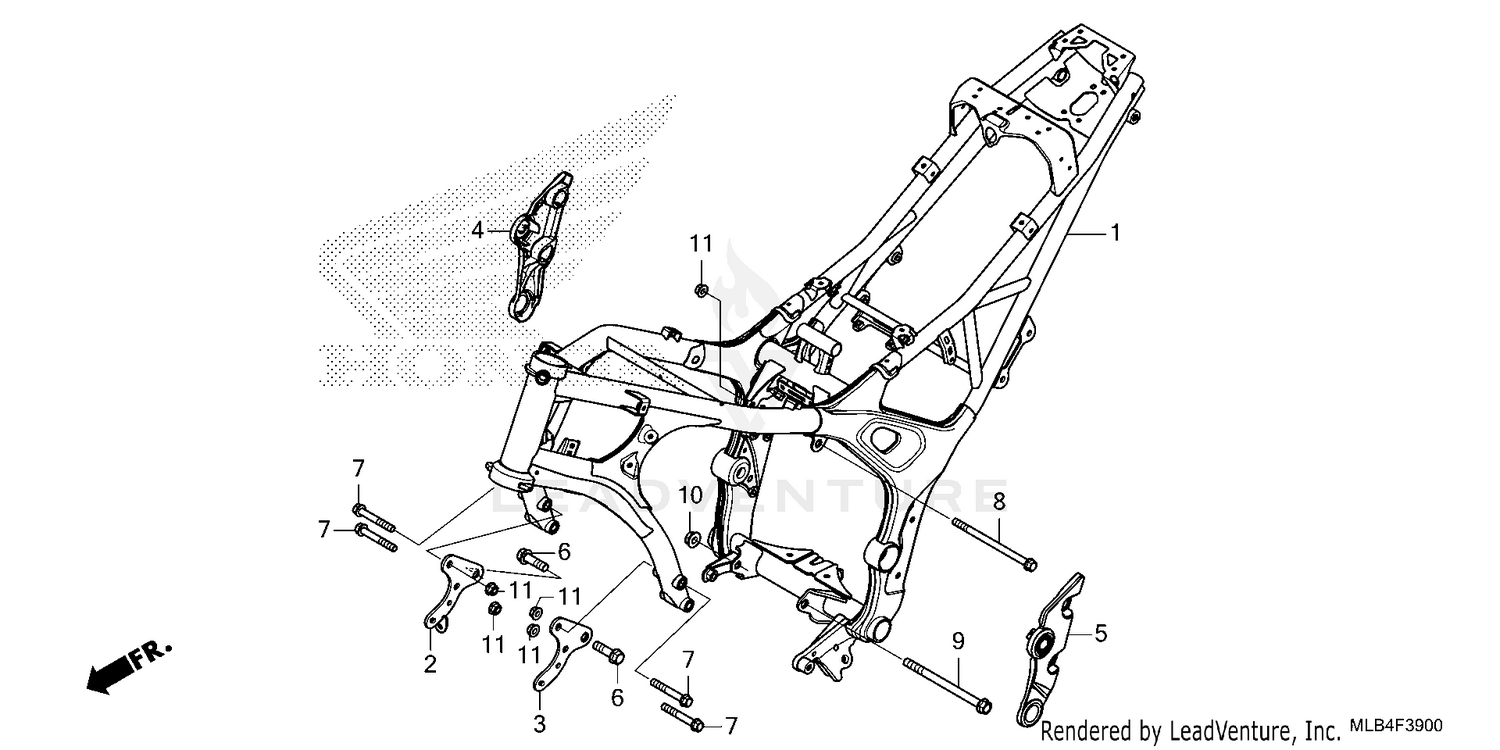

FRAME
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 50100-MLB-D20ZB | FRAME *NHA86M* Price: $1,642.65 |
| 2 | 50350-MLB-D00 | PLATE COMP, FR. Price: $26.65 |
| 3 | 50360-MLB-D00 | PLATE COMP, FR. Price: $26.65 |
| 4 | 50401-MLB-D00 | COVER, R. PIVOT Price: $10.20 |
| 5 | 50451-MLB-D00 | COVER, L. PIVOT Price: $10.20 |
| 6 | 90101-MLB-D00 | BOLT (12X40) Price: $4.55 |
| 7 | 90102-MLB-D00 | BOLT (10X67) Price: $3.84 |
| 8 | 90103-MLB-D00 | BOLT (10X156) Price: $7.65 |
| 9 | 90104-MLB-D00 | BOLT, FLG (12X160) Price: $10.45 |
| 10 | 90364-MEJ-000 | NUT, FLANGE (12MM) Price: $1.96 |
| 11 | 90303-428-900 | NUT, FLANGE (10MM) Price: $4.20 |
