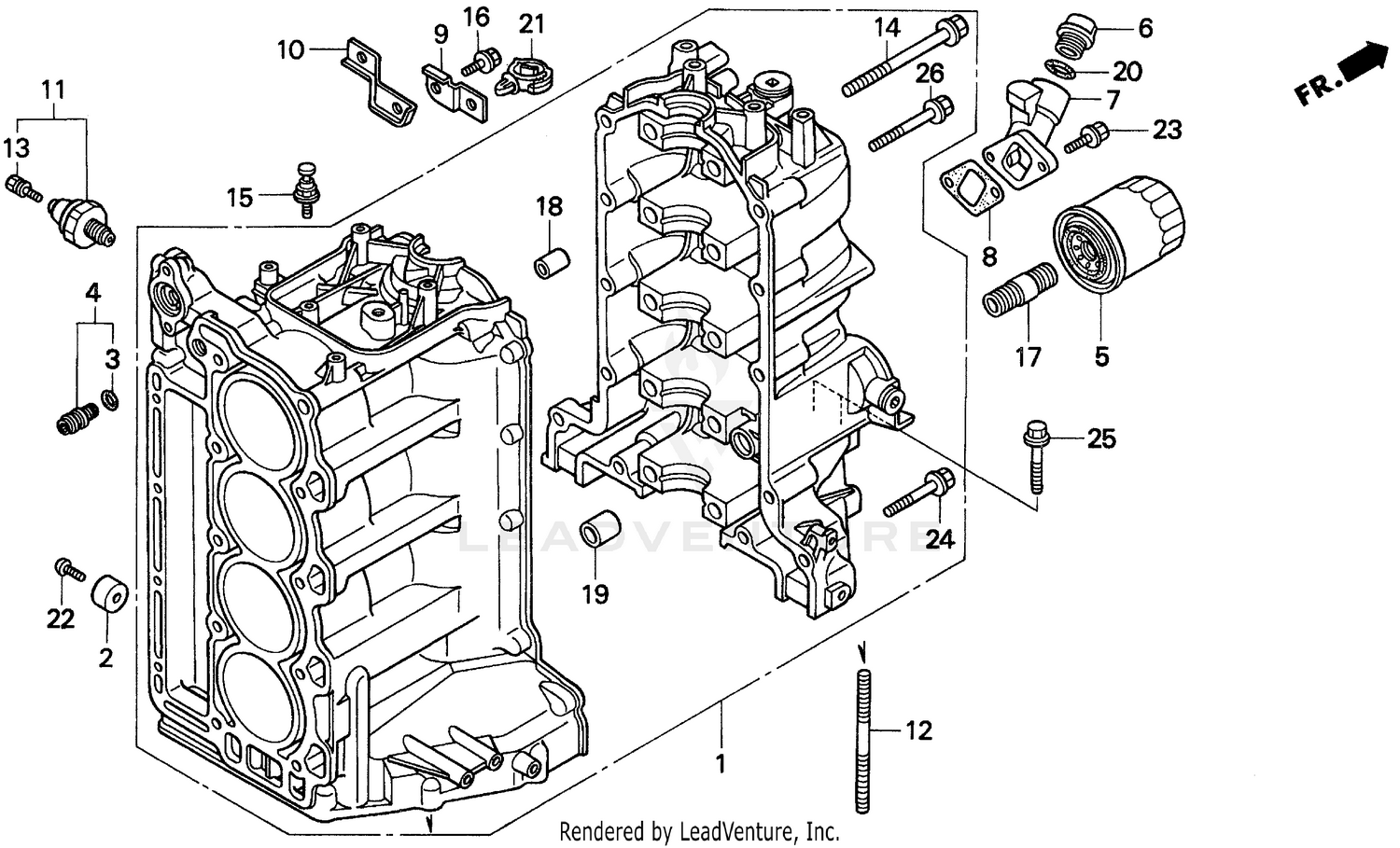

| Ref | Part Number | Description |
|---|
| 1 |
12000-ZW1-000ZA |
BLOCK ASSY., CYLINDER *NH8* (DARK GRAY) Price: $2,119.36 |
| 2 |
12155-ZV5-010 |
METAL, ANODE This part replaces 12155-ZV5-000. Price: $13.06 |
| 3 |
15142-PH3-003 |
SEE PART DETAILS - PRI; O-RING (10.8X2.4) (ARAI) Price: $3.88 |
| 4 |
15150-ZW1-000 |
ORIFICE ASSY., OIL PASSAGE Price: $10.06 |
| 5 |
15400-P0H-305PE |
SEE PART DETAILS - SUP; FILTER, OIL (SOLD INDIVIDUALLY) Price: Call Us |
| 5 |
15400-PLM-A02PE |
FILTER, OIL This part replaces 15400-PLM-A01PE. Price: $12.42 |
| 6 |
15611-921-000 |
CAP, OIL Price: $13.88 |
| 7 |
15631-ZW1-000ZA |
SEE PART DETAILS - SUP; EXTENSION, OIL FILLER *NH8* (DARK GRAY) Price: Call Us |
| 8 |
15635-ZG3-800 |
GASKET, EXTENSION OIL FILLER (NON-ASBESTOS) Price: $2.32 |
| 9 |
32119-ZW1-010 |
SEE PART DETAILS - PRI; BRACKET, HARNESS CLIP This part replaces 32119-ZW1-000. Price: $4.92 |
| 10 |
32743-PJ7-010 |
CLAMP C, ENGINE WIRE HARNESS Price: $13.82 |
| 11 |
37240-ZG3-E01 |
SWITCH, OIL PRESSURE Price: $46.10 |
| 12 |
90001-ZW1-000 |
BOLT, STUD (10X125) Price: $10.70 |
| 13 |
90002-ZG5-004 |
SCREW-WASHER (4X8) Price: $9.36 |
| 14 |
90008-ZW1-003 |
BOLT-WASHER (10X112) This part replaces 90008-ZW1-000. Price: $4.54 |
| 15 |
90012-ZV5-003 |
SEE PART DETAILS - SUP; BOLT, TIMING BELT ADJUST SPRING Price: Call Us |
| 16 |
90013-ZV1-000 |
SEE PART DETAILS - SUP; BOLT, FLANGE (6X14) Price: Call Us |
| 17 |
90015-PH1-013 |
HOLDER, OIL FILTER Price: $10.34 |
| 18 |
90702-PE0-000 |
PIN, DOWEL (12X18) Price: $6.80 |
| 19 |
90703-PE0-000 |
PIN, DOWEL (18X22) Price: $12.68 |
| 20 |
91301-805-000 |
O-RING (26X2.7) Price: $5.00 |
| 21 |
91558-SD5-003 |
CLIP, WIRE HARNESS *NH1L* (BLACK) Price: $11.40 |
| 22 |
93500-06018-4J |
SCREW, PAN (6X18) Price: $2.04 |
| 23 |
95701-06022-02 |
BOLT, FLANGE (6X22) Price: $1.62 |
| 24 |
95701-08035-02 |
BOLT, FLANGE (8X35) Price: $2.60 |
| 25 |
95701-08040-02 |
BOLT, FLANGE (8X40) Price: $1.82 |
