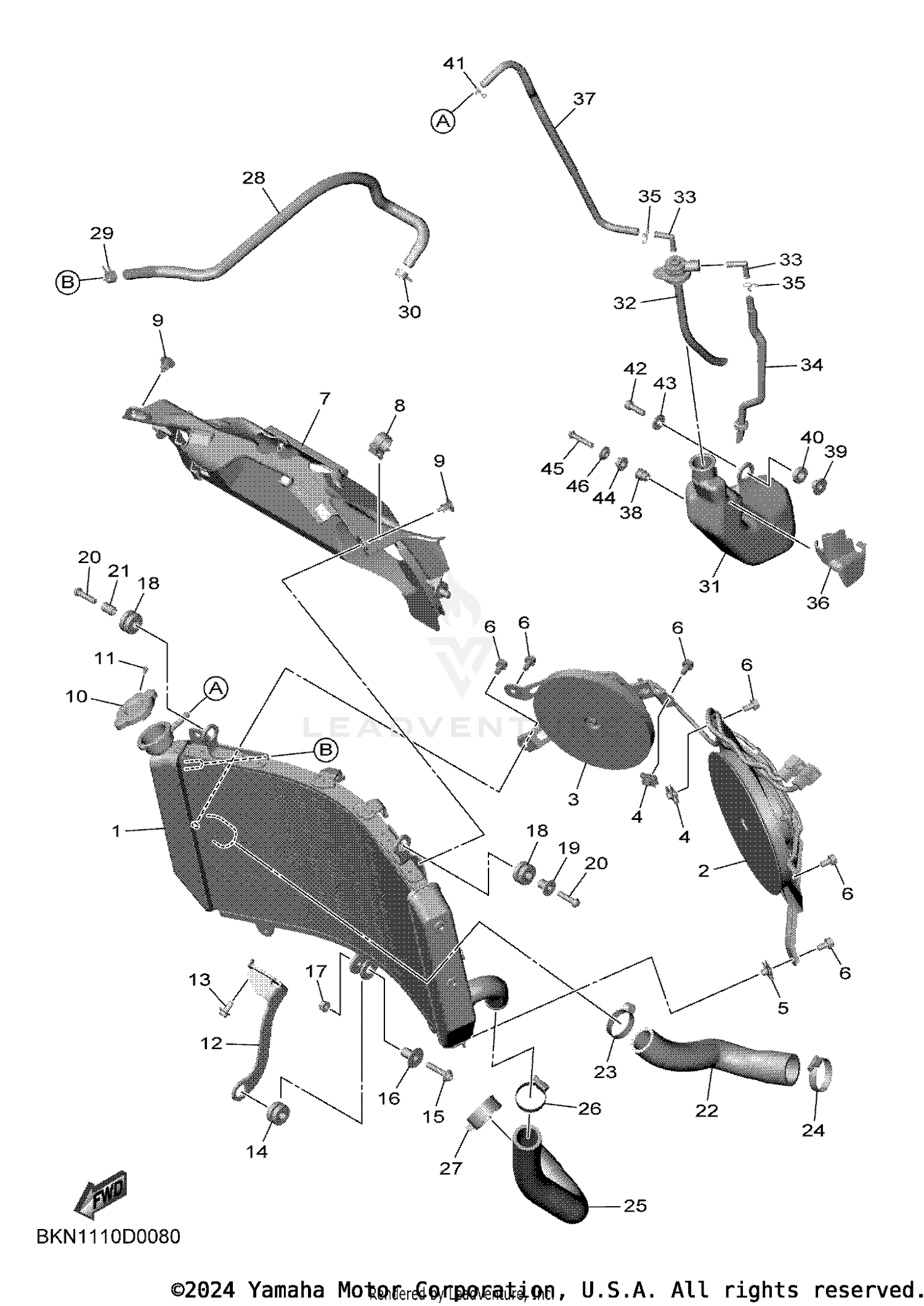

| Ref | Part Number | Description |
|---|
| 1 |
BKN-12461-00-00 |
RADIATOR COMP Price: $483.99 |
| 2 |
BKN-12405-00-00 |
BLOWER ASSY Price: $312.99 |
| 3 |
BKN-12405-10-00 |
BLOWER ASSY Price: $312.99 |
| 4 |
5SL-12671-00-00 |
NUT 1 Price: $7.49 |
| 5 |
BKN-12671-00-00 |
NUT 1 Price: $5.99 |
| 6 |
5GJ-12675-00-00 |
BOLT, BLOWER HOLDING Price: $8.49 |
| 7 |
BKN-12467-00-00 |
COVER, RADIATOR Price: $68.99 |
| 8 |
90464-16006-00 |
CLAMP Price: $10.49 |
| 9 |
90269-07077-00 |
RIVET Price: $9.49 |
| 10 |
B5Y-12462-00-00 |
CAP, RADIATOR Price: $70.99 |
| 11 |
91317-03006-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 12 |
BKN-12638-00-00 |
STAY 2 Price: $52.99 |
| 13 |
90110-06426-00 |
BOLT, HEXAGON SOCKET Price: $1.55 |
| 14 |
90480-15363-00 |
GROMMET Price: $9.49 |
| 15 |
90110-06415-00 |
BOLT, HEXAGON SOCKET HEAD Price: $0.95 |
| 16 |
90387-06166-00 |
COLLAR Price: $13.49 |
| 17 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 18 |
90480-15363-00 |
GROMMET Price: $9.49 |
| 19 |
90387-06158-00 |
COLLAR Price: $9.49 |
| 20 |
92012-06025-00 |
BOLT, BUTTON HEAD Price: $3.40 |
| 21 |
90387-07057-00 |
COLLAR Price: $3.65 |
| 22 |
BKN-12588-00-00 |
HOSE 5 Price: $15.99 |
| 23 |
90450-35001-00 |
HOSE CLAMP ASSY Price: $6.49 |
| 24 |
90450-38040-00 |
HOSE CLAMP ASSY Price: $19.49 |
| 25 |
BKN-12576-00-00 |
HOSE 1 Price: $18.99 |
| 26 |
90450-35001-00 |
HOSE CLAMP ASSY Price: $6.49 |
| 27 |
90467-310A0-00 |
CLIP Price: $5.49 |
| 28 |
BKN-1243A-00-00 |
HOSE 1 Price: $36.99 |
| 29 |
90467-10039-00 |
CLIP Price: $10.49 |
| 30 |
90467-10039-00 |
CLIP Price: $10.49 |
| 31 |
1RC-21871-00-00 |
TANK, RECOVERY Price: $39.99 |
| 32 |
B7N-21875-00-00 |
CAP Price: $17.49 |
| 33 |
1RC-21828-00-00 |
ELBOW Price: $4.75 |
| 34 |
BKN-21826-00-00 |
PIPE, BREATHER Price: $15.99 |
| 35 |
90467-08021-00 |
CLIP This part replaces 90467-08075-00. Price: $9.49 |
| 36 |
B7N-22825-00-00 |
PROTECTOR 1 Price: $3.90 |
| 37 |
BKN-21816-00-00 |
PIPE 1 Price: $18.99 |
| 38 |
90179-05523-00 |
NUT Price: $7.49 |
| 39 |
90387-06024-00 |
COLLAR Price: $12.49 |
| 40 |
1RC-21749-00-00 |
COLLAR Price: $4.40 |
| 41 |
90467-08021-00 |
CLIP This part replaces 90467-08075-00. Price: $9.49 |
| 42 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 43 |
90201-06029-00 |
WASHER, PLATE Price: $6.49 |
| 44 |
1RC-21748-00-00 |
COLLAR Price: $5.99 |
| 45 |
92012-05030-00 |
BOLT, BUTTON HEAD Price: $8.49 |
