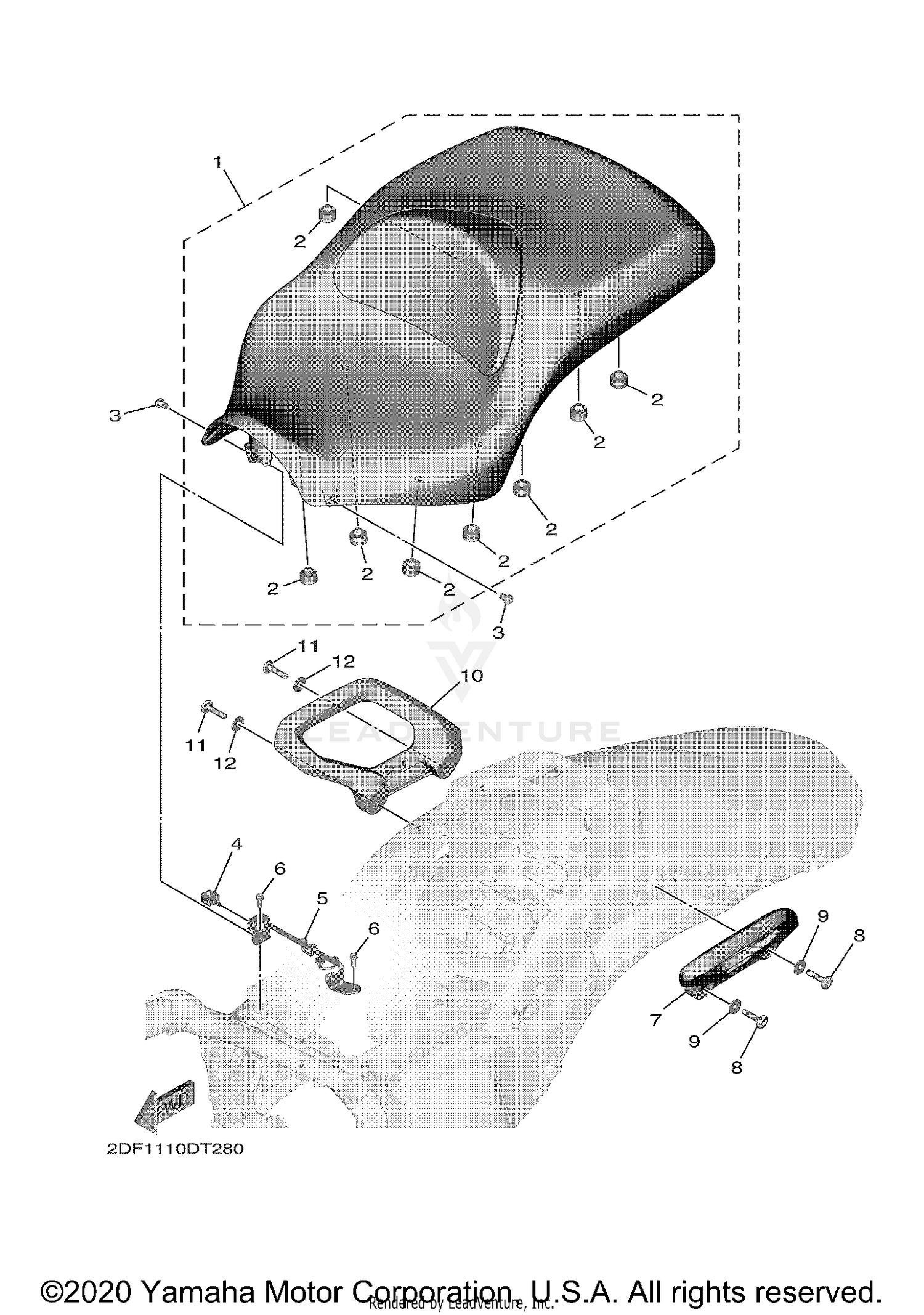

SEAT
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2DF-F4730-10-00 | DOUBLE SEAT ASSY Price: $729.99 |
| 2 | 2DF-F4723-00-00 | DAMPER, SEAT Price: $3.85 |
| 3 | 92017-08012-00 | BOLT, BUTTON HEAD Price: $9.49 |
| 4 | 90464-12M58-00 | CLAMP Price: $3.15 |
| 5 | 2DF-21341-00-00 | BRACKET, SEAT 1 Price: $44.99 |
| 6 | 90105-06100-00 | BOLT, FLANGE Price: $8.49 |
| 7 | 2DF-2474A-00-00 | ASSIST, GRIP Price: $139.99 |
| 8 | 90109-08245-00 | BOLT This part replaces 90109-08244-00. Price: $4.80 |
| 9 | 90201-086A3-00 | WASHER, PLATE Price: $9.49 |
| 10 | 2DF-2474W-00-00 | ASSIST,GRIP 2 Price: $139.99 |
| 11 | 90109-08245-00 | BOLT This part replaces 90109-08244-00. Price: $4.80 |
