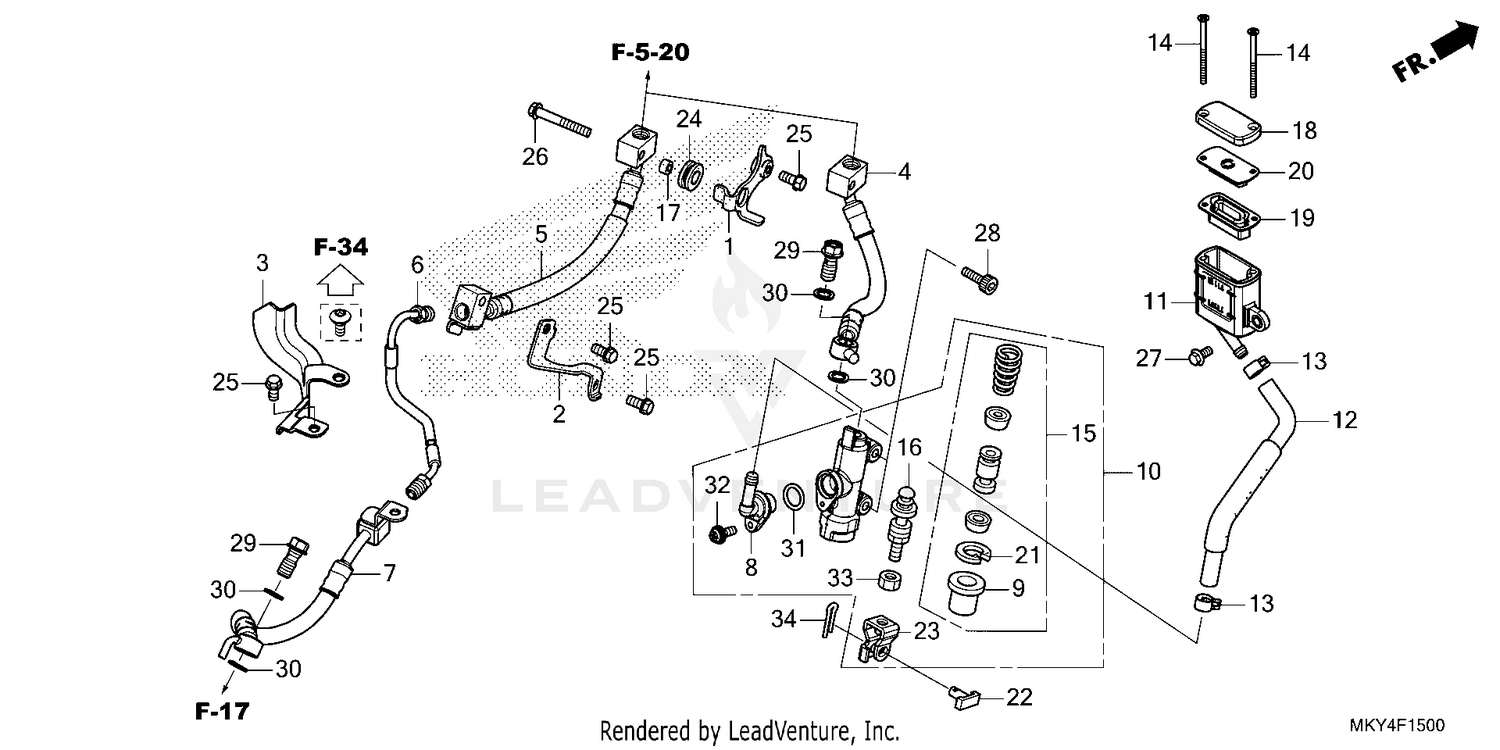

| Ref | Part Number | Description |
|---|
| 1 |
43160-MKN-D50 |
STAY A, RR. BRAKE Price: $9.42 |
| 2 |
43161-MKN-D50 |
STAY B, RR. BRAKE Price: $6.20 |
| 3 |
43162-MKN-D50 |
STAY C, RR. BRAKE Price: $9.09 |
| 4 |
43310-MKN-D51 |
HOSE A, RR. BRAKE Price: $26.24 |
| 5 |
43313-MKY-D51 |
HOSE D, RR. BRAKE Price: $40.95 |
| 6 |
43314-MKN-D50 |
PIPE E, RR. BRAKE Price: $11.33 |
| 7 |
43315-MKN-D51 |
HOSE F, RR. BRAKE Price: $40.82 |
| 8 |
43503-MR7-006 |
CONNECTOR Price: $17.00 |
| 9 |
43504-MB2-006 |
BOOT Price: $12.16 |
| 10 |
43510-MKN-D51 |
MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN) Price: $120.22 |
| 11 |
43511-K31-601 |
CUP, OIL Price: $13.16 |
| 12 |
43512-MKN-D51 |
HOSE, RR. BRAKE MASTER CYLINDER Price: $17.44 |
| 13 |
43514-KS6-701 |
CLAMP, MASTER CYLINDER OIL HOSE Price: $15.89 |
| 14 |
43516-MKY-D51 |
SCREW, FLAT (4X56) Price: $1.35 |
| 15 |
43520-MB2-315 |
PISTON SET, MASTER CYLINDER (NISSIN) Price: $56.36 |
| 16 |
43530-KV3-701 |
ROD, PUSH Price: $22.65 |
| 17 |
45161-K87-L50 |
COLLAR, BRAKE HOSE STAY Price: $1.87 |
| 18 |
45513-K33-D01 |
CAP, MASTER CYLINDER Price: $18.82 |
| 19 |
45520-GW0-911 |
DIAPHRAGM Price: $9.15 |
| 20 |
45521-GW0-911 |
PLATE, DIAPHRAGM Price: $7.20 |
| 21 |
46182-MEL-D21 |
CIRCLIP Price: $2.22 |
| 22 |
46503-MFG-D00 |
PIN, BRAKE ROD Price: $5.11 |
| 23 |
46504-MAL-601 |
JOINT, BRAKE ROD Price: $15.31 |
| 24 |
64312-KWW-640 |
GROMMET, MAIN PIPE COVER Price: $1.11 |
| 25 |
90013-GHB-620 |
BOLT, FLANGE (6X14) Price: $2.65 |
| 26 |
90013-GHB-710 |
BOLT, FLANGE (6X40) Price: $1.29 |
| 27 |
90017-GHB-620 |
BOLT, FLANGE (6X14) (NSHF) (NOT AVAILABLE) Price: $2.18 |
| 28 |
90135-MEL-000 |
BOLT, SOCKET (6X20) Price: $1.85 |
| 29 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 30 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 31 |
91212-422-006 |
O-RING (14.8X2.4) Price: $2.93 |
| 32 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
| 33 |
94002-080000S |
NUT,HEX 8MM Price: $1.37 |
