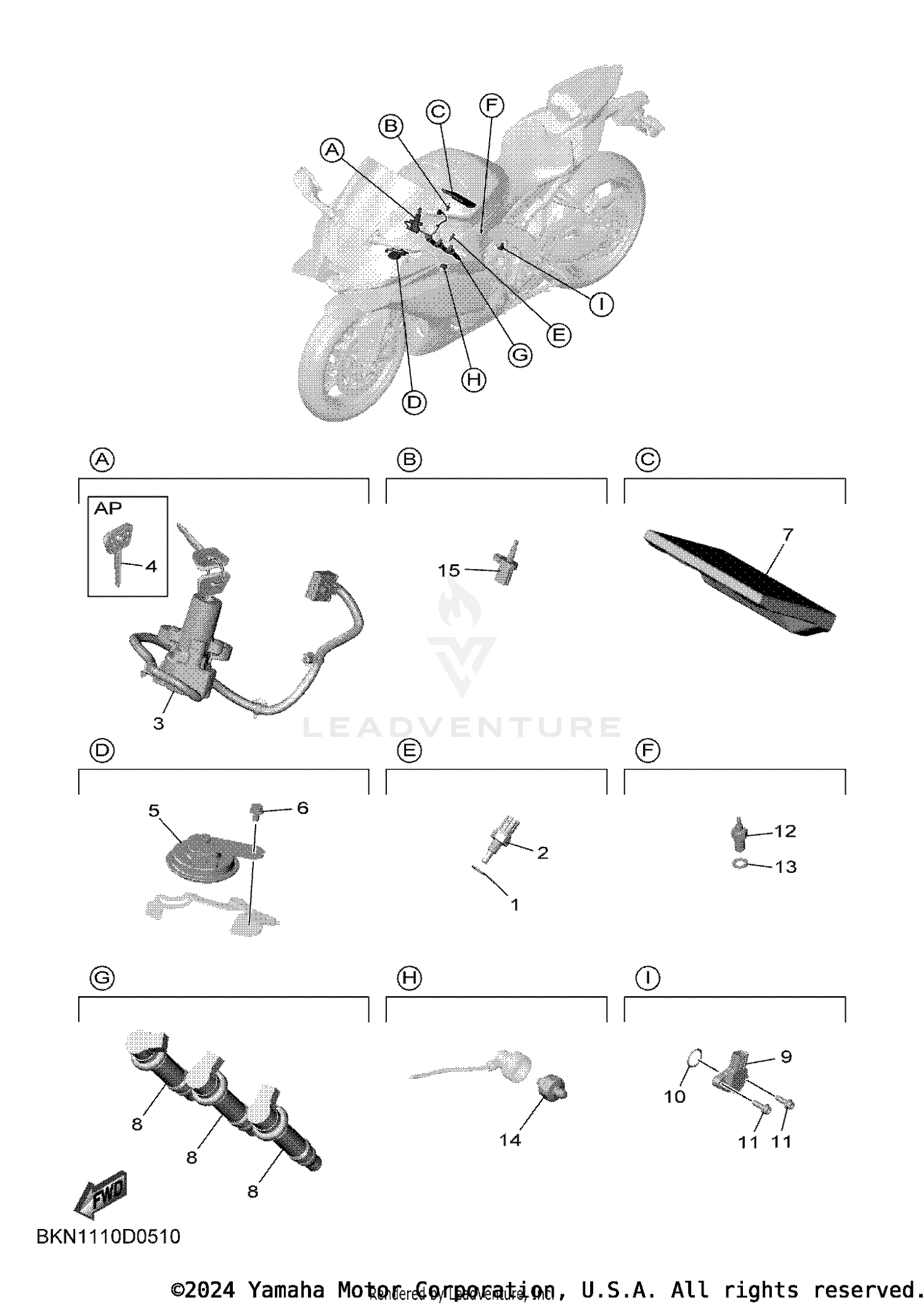

ELECTRICAL 2
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 90430-10004-00 | GASKET Price: $7.49 |
| 2 | 52B-H3591-00-00 | THERMO UNIT This part replaces 4P9-83591-00-00. Price: $37.99 |
| 3 | BKN-82501-10-00 | MAIN SWITCH STEERING LOCK Price: $146.99 |
| 5 | BEA-83371-00-00 | HORN Price: $54.99 |
| 6 | 95D32-06010-00 | BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 7 | BKN-8591A-10-00 | ENGINE CONTROL UNIT ASSY Price: $1,035.99 |
| 8 | BME-82310-00-00 | IGNITION COIL ASSY Price: $98.99 |
| 9 | 2CR-85899-10-00 | SENSOR, GEAR POSITION Price: $123.99 |
| 10 | 93210-17008-00 | O-RING Price: $2.65 |
| 11 | 90110-05038-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05067-00. Price: $8.49 |
| 12 | 3GB-82540-01-00 | NEUTRAL SWITCH ASSY Price: $63.99 |
| 13 | 90430-10148-00 | GASKET Price: $5.99 |
| 14 | 1WS-82504-01-00 | OIL PRESSURE SWITCH ASSY Price: $76.99 |
