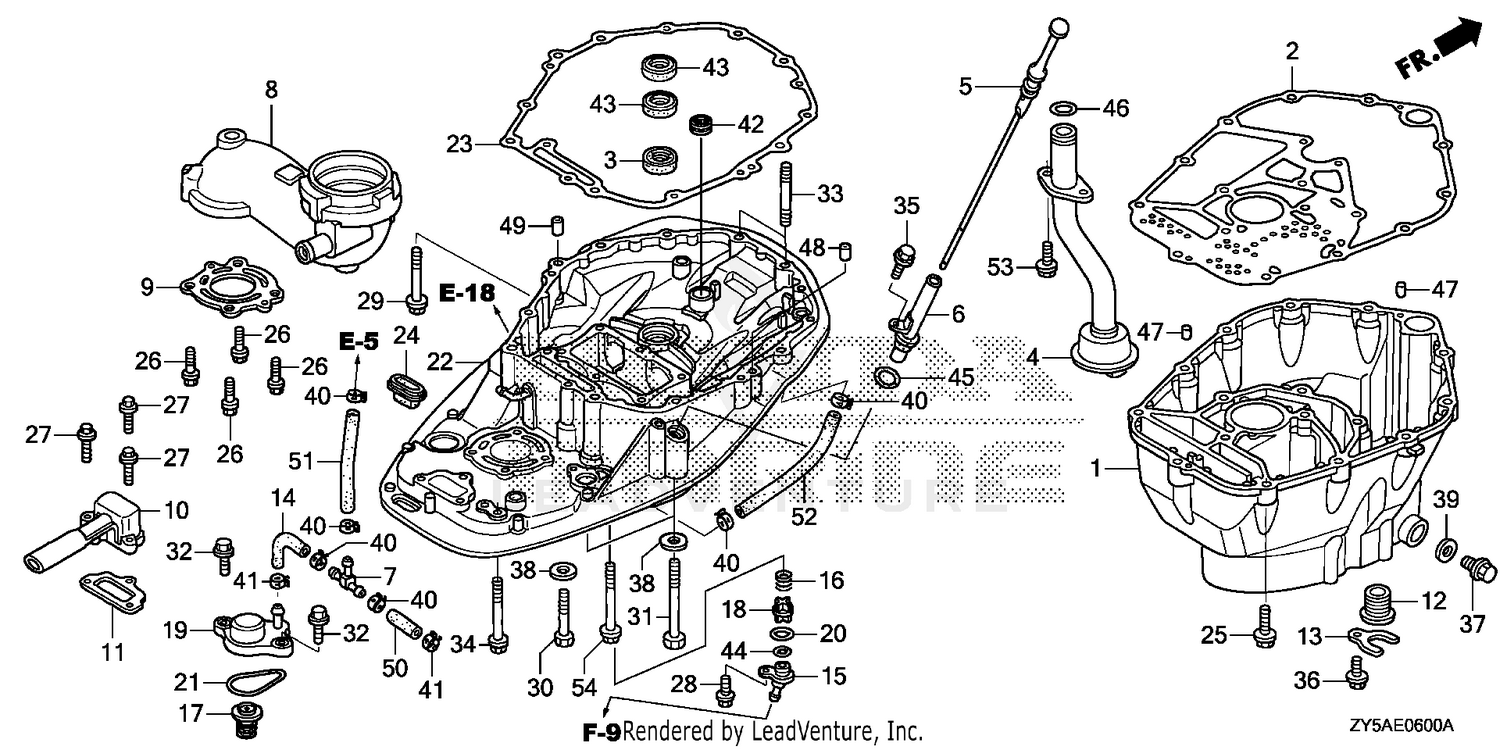

| Ref | Part Number | Description |
|---|
| 1 |
11321-ZY6-020ZB |
SEE PART DETAILS - PRI; CASE, OIL *TGRAY* (GRAY) Price: $674.56 |
| 2 |
11381-ZY6-010 |
GASKET, OIL PAN Price: $93.94 |
| 3 |
15113-ZW5-000 |
RUBBER, OIL PUMP Price: $11.32 |
| 4 |
15220-ZY6-010 |
STRAINER, OIL Price: $90.78 |
| 5 |
15655-ZY6-010 |
DIPSTICK, OIL Price: $18.62 |
| 6 |
15665-ZW1-030 |
PIPE, OIL LEVEL Price: $17.28 |
| 7 |
17195-MN5-000 |
T-JOINT Price: $12.70 |
| 8 |
18130-ZY6-000ZA |
GUIDE, EX. *NH8* (DARK GRAY) Price: $263.70 |
| 9 |
18135-ZY6-003 |
GASKET, EX. GUIDE Price: $36.92 |
| 10 |
18211-ZY6-000 |
PORT, IDLE EX. Price: $44.46 |
| 11 |
18212-ZY6-000 |
GASKET, IDLE EX. PORT Price: $3.84 |
| 12 |
19252-ZW1-000 |
GROMMET, WATER TUBE Price: $10.18 |
| 13 |
19254-ZY6-000 |
PLATE, WATER TUBE Price: $4.44 |
| 14 |
19256-ZY6-000 |
TUBE, WATER RELIEF Price: $5.08 |
| 15 |
19277-ZZ3-030 |
COVER, FLUSH VALVE Price: $14.76 |
| 16 |
19279-ZW9-010 |
SEE PART DETAILS - PRI; SPRING, FLUSH VALVE Price: $2.16 |
| 17 |
19290-ZY6-003 |
VALVE ASSY., RELIEF Price: $61.14 |
| 18 |
19291-ZW9-000 |
VALVE, FLUSH Price: $8.08 |
| 19 |
19295-ZY6-000 |
COVER, RELIEF VALVE Price: $25.24 |
| 20 |
19297-ZW9-010 |
PKG, FLUSH VALVE This part replaces 19297-ZW9-000. Price: $2.10 |
| 21 |
19317-ZW9-000 |
O-RING, THERMOSTAT COVER Price: $7.06 |
| 22 |
23170-ZY6-000ZA |
CASE, MOUNT *NH8* (DARK GRAY) Price: $1,032.76 |
| 23 |
23172-ZY6-000 |
GASKET, MOUNT CASE Price: $134.72 |
| 24 |
23173-ZY3-010 |
SEE PART DETAILS - PRI; RUBBER, MOUNT CASE SEAL Price: $11.40 |
| 25 |
90002-ZY6-000 |
BOLT, FLANGE (10X40) Price: $8.28 |
| 26 |
90014-ZY6-000 |
BOLT, FLANGE (8X30) Price: $4.46 |
| 27 |
90014-ZZ5-M01 |
BOLT, FLANGE (6X25) Price: $2.56 |
| 29 |
90017-ZY6-000 |
BOLT, FLANGE (10X80) Price: $10.58 |
| 30 |
90018-ZY6-000 |
BOLT, HEX. (12X70) Price: $11.78 |
| 31 |
90019-ZY6-000 |
BOLT, HEX. (12X130) Price: $14.38 |
| 32 |
90030-ZY3-000 |
BOLT, FLANGE (6X22) Price: $1.26 |
| 33 |
90045-ZY6-000 |
BOLT, STUD (10X55) Price: $4.36 |
| 33 |
90045-ZY6-030 |
BOLT, STUD (10X55) Price: $4.36 |
| 34 |
90046-ZY3-000 |
BOLT, FLANGE (8X100) Price: $10.26 |
| 35 |
90056-ZY9-M01 |
BOLT, FLANGE (6X12) Price: $1.50 |
| 36 |
90102-ZW9-000 |
BOLT, FLANGE (6X12) Use from Frame SN 1005249. Price: $2.90 |
| 37 |
90131-ZV5-000 |
BOLT, DRAIN PLUG Price: $10.18 |
| 38 |
90559-ZV5-000 |
WASHER, PLAIN (12MM) Price: $4.04 |
| 39 |
90601-ZE2-000 |
WASHER, DRAIN PLUG (12MM) (Honda Code 2028793). Price: $3.26 |
| 40 |
90601-ZY3-030 |
CLAMP, TUBE (D10.5) (ENGINE NO.) Price: $2.28 |
| 41 |
90606-ZY6-003 |
CLAMP, TUBE (D10.5) (ENGINE NO.) Price: $4.40 |
| 42 |
91001-ZY3-003 |
BEARING, NEEDLE (20X28X13) (SOLID) Price: $49.28 |
| 43 |
91202-ZW5-003 |
SEAL, WATER (22X35X7) Price: $16.68 |
| 44 |
91303-800-000 |
O-RING (16MM) (Honda Code 0065094). Price: $2.80 |
| 45 |
91309-PJ7-010 |
O-RING (11.5X3.5) Price: $4.18 |
| 46 |
91324-PC6-000 |
O-RING (20.6X2.6) Price: $4.10 |
| 47 |
94301-06100 |
SEE PART DETAILS - PRI; PIN A, DOWEL (6X10) (Honda Code 0294256). Price: $2.82 |
| 48 |
94301-10160 |
SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206). Price: $3.10 |
| 49 |
94301-14200 |
SEE PART DETAILS - PRI; PIN A, DOWEL (14X20) Price: $3.10 |
| 50 |
95005-70003-30M |
BULK HOSE, VACUUM (7X3000) (7X550) Price: $34.08 |
| 51 |
95005-70003-30M |
BULK HOSE, VACUUM (7X3000) (7X550) Price: $34.08 |
| 52 |
95005-70003-30M |
BULK HOSE, VACUUM (7X3000) (7X550) Price: $34.08 |
| 53 |
95701-06018-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X18) Price: $2.04 |
