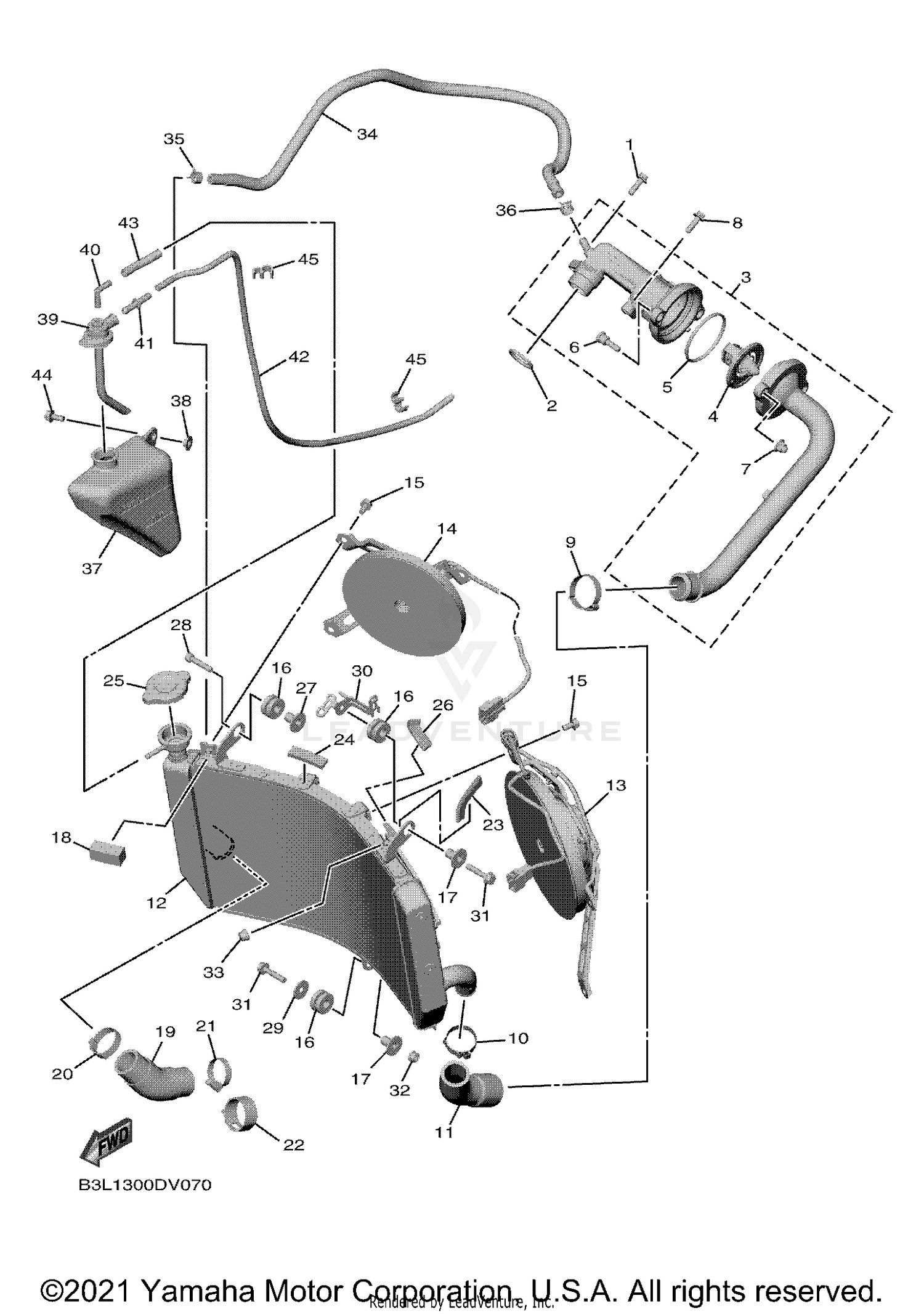

| Ref | Part Number | Description |
|---|
| 1 |
90110-06163-00 |
BOLT, HEXAGON SOCKET HEAD Price: $11.49 |
| 2 |
93210-26006-00 |
O-RING Price: $9.49 |
| 3 |
B3L-12410-01-00 |
THERMOSTAT ASSY Price: $255.99 |
| 4 |
4FM-12410-01-00 |
THERMOSTAT ASSY Price: $45.99 |
| 5 |
93210-54534-00 |
O-RING Price: $5.95 |
| 6 |
2CR-12615-00-00 |
BOLT Price: $12.99 |
| 7 |
90176-06017-00 |
NUT, CROWN Price: $2.90 |
| 8 |
90110-06163-00 |
BOLT, HEXAGON SOCKET HEAD Price: $11.49 |
| 9 |
90467-350A0-00 |
CLIP Price: $9.49 |
| 10 |
90467-320A0-00 |
CLIP Price: $8.49 |
| 11 |
2CR-12578-00-00 |
HOSE 3 Price: $10.99 |
| 12 |
2CR-12461-00-00 |
RADIATOR COMP Price: $524.99 |
| 13 |
2CR-12405-00-00 |
BLOWER ASSY Price: $347.99 |
| 14 |
2CR-12405-10-00 |
BLOWER ASSY Price: $340.99 |
| 15 |
5GJ-12675-00-00 |
BOLT, BLOWER HOLDING Price: $8.49 |
| 16 |
90480-15363-00 |
GROMMET Price: $9.49 |
| 17 |
90387-0614M-00 |
COLLAR Price: $12.49 |
| 18 |
3P6-21649-00-00 |
DAMPER Price: $7.49 |
| 19 |
2CR-12551-00-00 |
HOSE 7 Price: $19.99 |
| 20 |
90467-320A0-00 |
CLIP Price: $8.49 |
| 21 |
90450-35001-00 |
HOSE CLAMP ASSY Price: $6.49 |
| 22 |
5GV-1246E-00-00 |
COVER 2 Price: $5.49 |
| 23 |
5VN-24188-00-00 |
MOLD, FUEL TANK Price: $38.99 |
| 24 |
JX4-78329-00-00 |
SPACER 2 Price: $1.64 |
| 25 |
5SL-12462-01-00 |
CAP, RADIATOR This part replaces 5SL-12462-00-00. Price: $35.99 |
| 26 |
B3L-28245-00-00 |
CAP Price: $18.49 |
| 27 |
90387-0614M-00 |
COLLAR Price: $12.49 |
| 28 |
90110-06138-00 |
BOLT This part replaces 91317-06030-00. Price: $6.49 |
| 29 |
90201-063J2-00 |
WASHER, PLATE This part replaces 90201-06071-00. Price: $6.49 |
| 30 |
2CR-26279-10-00 |
GUIDE, CABLE Price: $10.49 |
| 31 |
95817-06030-00 |
BOLT,FLANGE This part replaces 95827-06030-00. Price: $4.65 |
| 32 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95607-06200-00. Price: $2.95 |
| 33 |
663-45119-01-00 |
CAP, GREASE NIPPLE Price: $2.40 |
| 34 |
2CR-12552-00-00 |
HOSE 8 Price: $30.99 |
| 35 |
90467-10135-00 |
CLIP This part replaces 90467-11090-00. Price: $9.49 |
| 36 |
90467-11044-00 |
CLIP Price: $9.49 |
| 37 |
2CR-21871-00-00 |
TANK, RECOVERY Price: $33.99 |
| 38 |
90387-06681-00 |
COLLAR Price: $10.49 |
| 39 |
2C0-21875-00-00 |
CAP Price: $17.99 |
| 40 |
26H-21828-00-00 |
ELBOW Price: $30.99 |
| 41 |
4XY-14568-00-00 |
JOINT Price: $7.49 |
| 42 |
2CR-21816-00-00 |
PIPE 1 Price: $14.49 |
| 43 |
90445-09040-00 |
HOSE (L50) Price: $3.95 |
| 44 |
95817-06014-00 |
BOLT, FLANGE This part replaces 95827-06014-00. Price: $2.80 |
