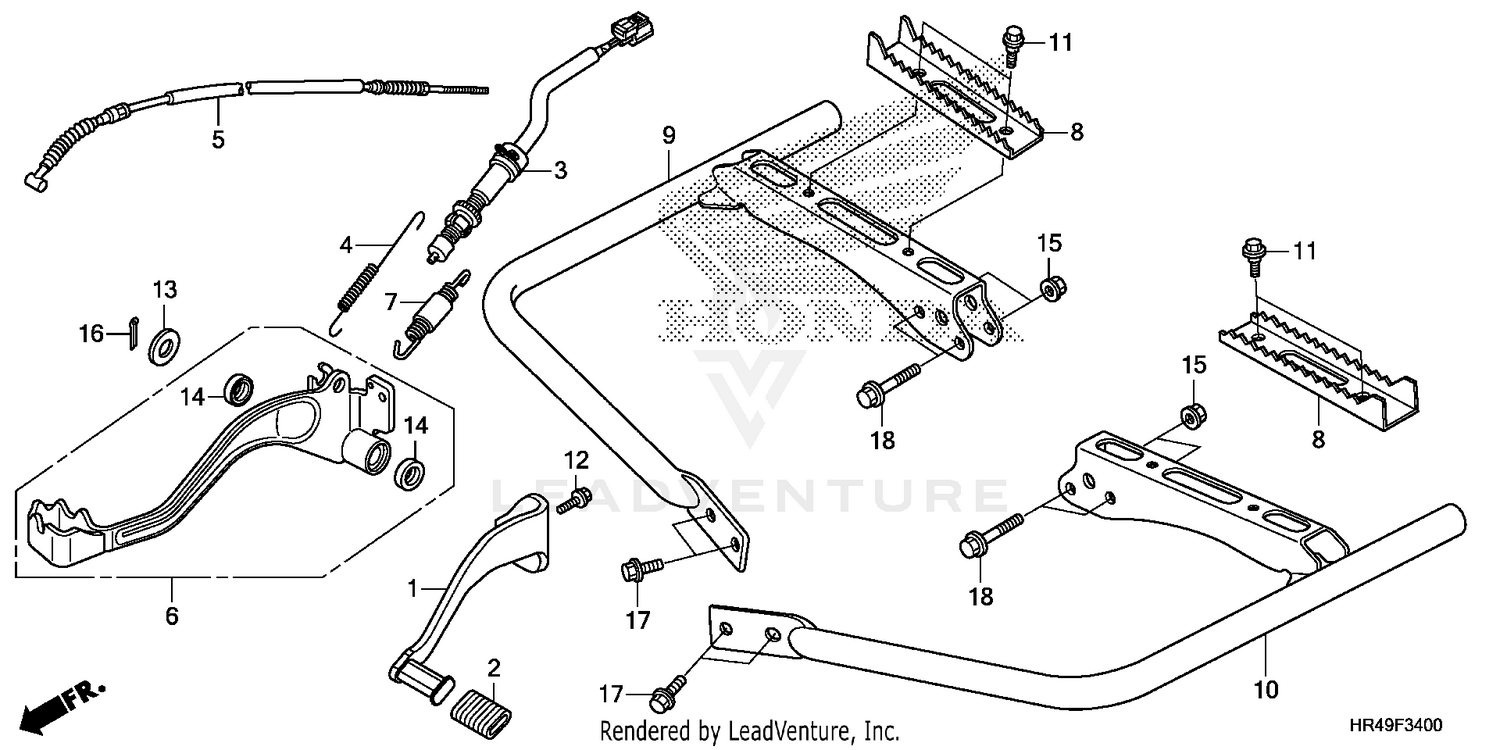

| Ref | Part Number | Description |
|---|
| 3 |
35350-HR3-A21 |
SWITCH ASSY., RR. STOP Price: $21.93 |
| 4 |
35357-HP5-600 |
SPRING, STOP SWITCH Price: $3.78 |
| 5 |
43470-HR3-A21 |
CABLE, FOOT BRAKE Price: $7.76 |
| 6 |
46510-HR3-A20 |
PEDAL ASSY., BRAKE Price: $43.35 |
| 7 |
46513-HR3-A20 |
SPRING ASSY., RR. BRAKE PEDAL Price: $6.00 |
| 8 |
50610-HR3-A20 |
STEP Price: $5.69 |
| 9 |
50611-HR6-B00 |
BRACKET, R. STEP Price: $17.82 |
| 10 |
50612-HR6-B00 |
BRACKET, L. STEP Price: $17.82 |
| 11 |
90111-HP0-A00 |
BOLT, FLANGE (6MM) Price: $3.35 |
| 13 |
90512-303-000 |
WASHER (17.5MM) Price: $2.02 |
| 14 |
91206-968-003 |
DUST SEAL (17X23X3) (NOK) Price: $4.64 |
| 15 |
94050-08000 |
NUT, FLANGE (8MM) NUT, FLANGE (10MM) Price: $0.98 |
| 16 |
94201-30450 |
PIN, COTTER (3.0X45) This part replaces 94201-30250. Price: $1.08 |
| 17 |
95701-08016-08 |
BOLT, FLANGE (8X16) Price: $1.83 |
