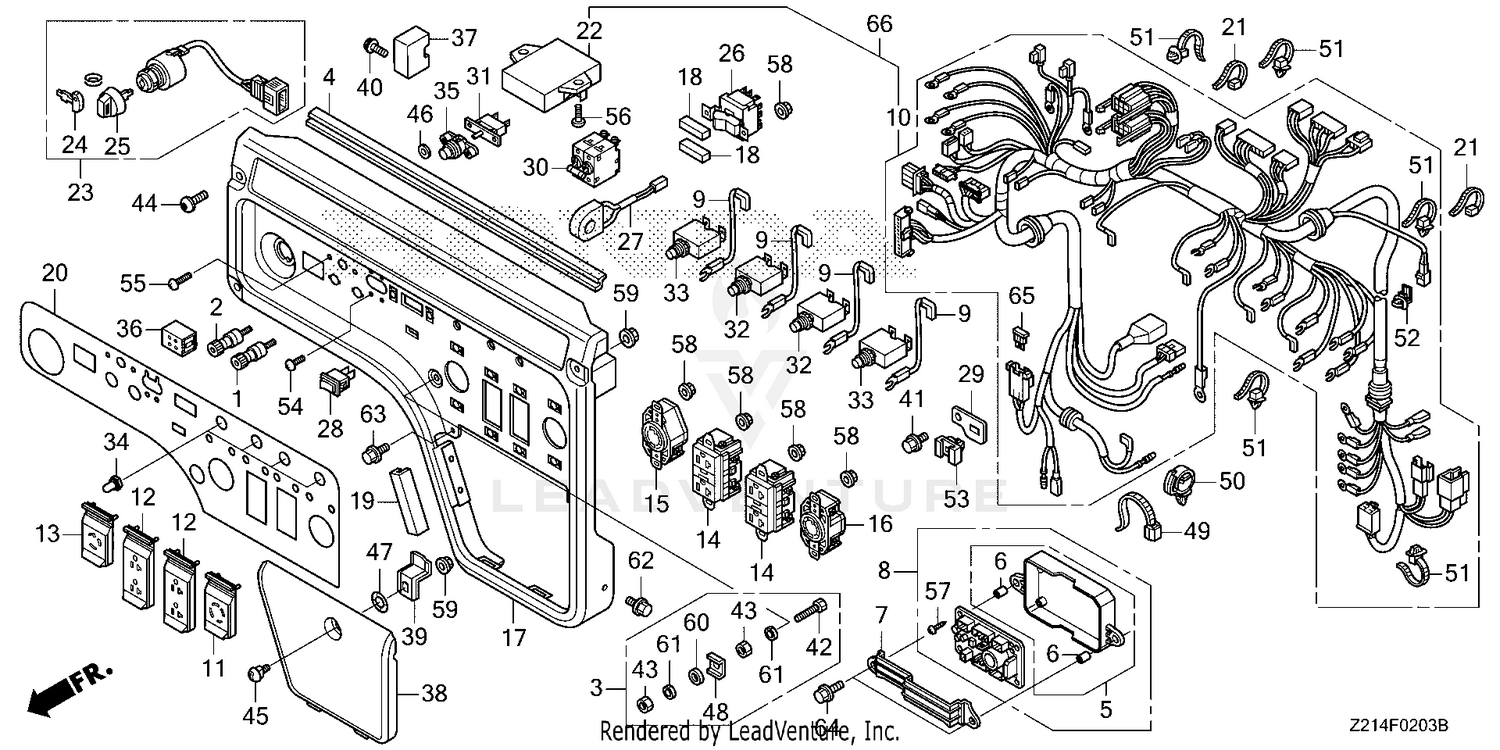

| Ref | Part Number | Description |
|---|
| 1 |
31408-880-000 |
SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (+) Price: $46.94 |
| 2 |
31409-880-000 |
SEE PART DETAILS - PRI; TERMINAL, D.C. OUTPUT (-) Price: $46.94 |
| 3 |
31428-Z22-000 |
TERMINAL SET, GROUND Price: $8.76 |
| 4 |
31462-Z23-F10 |
RUBBER, CONTROL PANEL Price: $10.46 |
| 5 |
31705-Z30-C40 |
CASE, AUTOMATIC VOLTAGE REGULATOR (NOT AVAILABLE) Price: $5.04 |
| 6 |
31706-Z30-C40 |
COLLAR, AUTOMATIC VOLTAGE REGULATOR CASE (NOT AVAILABLE) Price: $5.00 |
| 7 |
31707-Z30-C40 |
COVER, AUTOMATIC VOLTAGE REGULATOR (NOT AVAILABLE) Price: $6.24 |
| 8 |
31720-Z23-F10 |
CASE ASSY., AUTOMATIC VOLTAGE REGULATOR (NOT AVAILABLE) Price: $402.42 |
| 9 |
32101-Z23-F20 |
SUB-WIRE ASSY. (A) Price: $8.34 |
| 10 |
32150-Z22-C31 |
HARN, CONTL WIRE Price: $205.20 |
| 11 |
32320-Z37-R50 |
COVER, RECEPTACLE (30A-125/250V) Price: $19.42 |
| 12 |
32320-ZS9-W30 |
COVER, RECEPTACLE (20A-125V) Price: $20.04 |
| 13 |
32321-ZS9-W30 |
COVER, RECEPTACLE (30A-125V) Price: $20.00 |
| 14 |
32330-Z44-J32 |
RECEPTACLE (20A-125V) (GFCI) Price: $122.70 |
| 15 |
32332-Z22-E31 |
RECEPTACLE (30A-125V) Price: $90.80 |
| 16 |
32334-Z22-A31 |
RECEPTACLE (30A-125/250V) Price: $108.52 |
| 17 |
32345-Z22-C30ZA |
PANEL, CONTROL *R280* (EM-AG) (POWER RED) Price: $249.52 |
| 18 |
32347-ZS9-W30 |
RUBBER, WATERPROOF Price: $5.04 |
| 19 |
32349-Z23-F10 |
RUBBER, CONTROL PANEL (LOWER) Price: $3.22 |
| 20 |
32366-Z22-C30 |
MARK, PANEL (EM-AG) Price: $87.16 |
| 21 |
32903-Z22-000 |
TIE, CABLE (C) Price: $2.24 |
| 22 |
34100-Z22-C32 |
UNIT ASSY. ENG CONTL Price: $160.62 |
| 23 |
35100-Z1C-D22 |
SWITCH ASSY., COMBINATION Price: $97.72 |
| 24 |
35110-Z5T-W01 |
KEY Price: $12.82 |
| 25 |
35110-Z5T-W11 |
KEY ASSY., COMBINATION SWITCH (BLACK) Price: $11.46 |
| 26 |
35320-Z22-E31 |
SWITCH ASSY., VOLT CHANGE Price: $110.16 |
| 27 |
35694-Z23-003 |
SENSOR ASSY. (CT) Price: $106.40 |
| 28 |
36214-Z11-A01 |
SWITCH, AUTO-THROTTLE (OTAX) Price: $25.18 |
| 29 |
38217-Z22-A30 |
BRACKET, FUSE Price: $9.14 |
| 30 |
38220-Z30-B41 |
BREAKER, CIRCUIT (27A) Price: $179.24 |
| 31 |
38240-898-000 |
PROTECTOR, CIRCUIT (D.C.) Price: $37.06 |
| 32 |
38240-Z23-F20 |
PROTECTOR, CIRCUIT (20A) Price: $93.20 |
| 33 |
38241-Z23-F20 |
PROTECTOR, CIRCUIT (30A) Price: $27.84 |
| 34 |
38242-Z25-A62 |
COVER, CIRCUIT PROTECTOR Price: $18.32 |
| 35 |
38250-ZA8-701 |
LENS ASSY., PROTECTOR (Honda Code 1888676). Price: $19.96 |
| 36 |
38530-Z22-D31 |
LED ASSY., INDICATER Price: $36.02 |
| 37 |
06391-Z22-C31 |
UNIT KIT, BLUETOOTH (ISOLATE) Price: $165.01 |
| 38 |
50361-Z23-F10 |
COVER (LOWER) Price: $52.34 |
| 39 |
50362-Z23-F10 |
LOCK PLATE, COVER (LOWER) Price: $10.22 |
| 40 |
90003-MEL-000 |
BOLT, FLANGE (5X14) Price: $1.68 |
| 41 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 42 |
90111-Z22-000 |
BOLT, HEX. (6X28) Price: $3.32 |
| 43 |
90112-Z22-000 |
NUT, HEX. (6MM) Price: $1.36 |
| 44 |
90128-Z22-C30 |
BOLT, DISK (8X22) (TORX) Price: $3.90 |
| 45 |
90163-Z23-F10 |
BOLT, MAINTENANCE LID LOCK Price: $2.92 |
| 46 |
90401-ZR4-F30 |
WASHER (4MM) Price: $1.38 |
| 47 |
90444-397-000 |
WASHER, WAVE (12MM) Price: $5.58 |
| 48 |
90501-ZA7-640 |
RETAINER (6MM) Price: $3.84 |
| 49 |
90650-KV6-003 |
BAND, WIRE (95MM) Price: $4.30 |
| 50 |
90681-763-A01 |
CLIP, WIRE HARNESS Price: $11.04 |
| 51 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.98 |
| 52 |
91565-S0X-003 |
CLIP, CONNECTOR (DARK GREEN) Price: $4.56 |
| 53 |
91565-Z22-003 |
CLIP, CONNECTOR HOLDER Price: $2.28 |
| 54 |
93500-03005-0G |
SCREW, PAN (3X5) (NOT AVAILABLE) Price: Call Us |
| 55 |
93500-03016-0G |
SCREW, PAN (3X16) Price: $0.94 |
| 56 |
93892-05014-08 |
SEE PART DETAILS - PRI; SCREW-WASHER (5X14) (Honda Code 0660720). Price: $1.38 |
| 57 |
93911-24120 |
SCREW, TAPPING (4X10) (PO) Price: $1.14 |
| 58 |
94050-04000 |
NUT, FLANGE (4MM) Price: $1.54 |
| 59 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 60 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 61 |
94111-06000 |
SEE PART DETAILS - PRI; WASHER, SPRING (6MM) Price: $1.18 |
| 62 |
95701-06010-07 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) Price: $2.04 |
| 63 |
95701-06014-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884). Price: $1.26 |
| 64 |
95701-06016-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820. Price: $2.04 |
