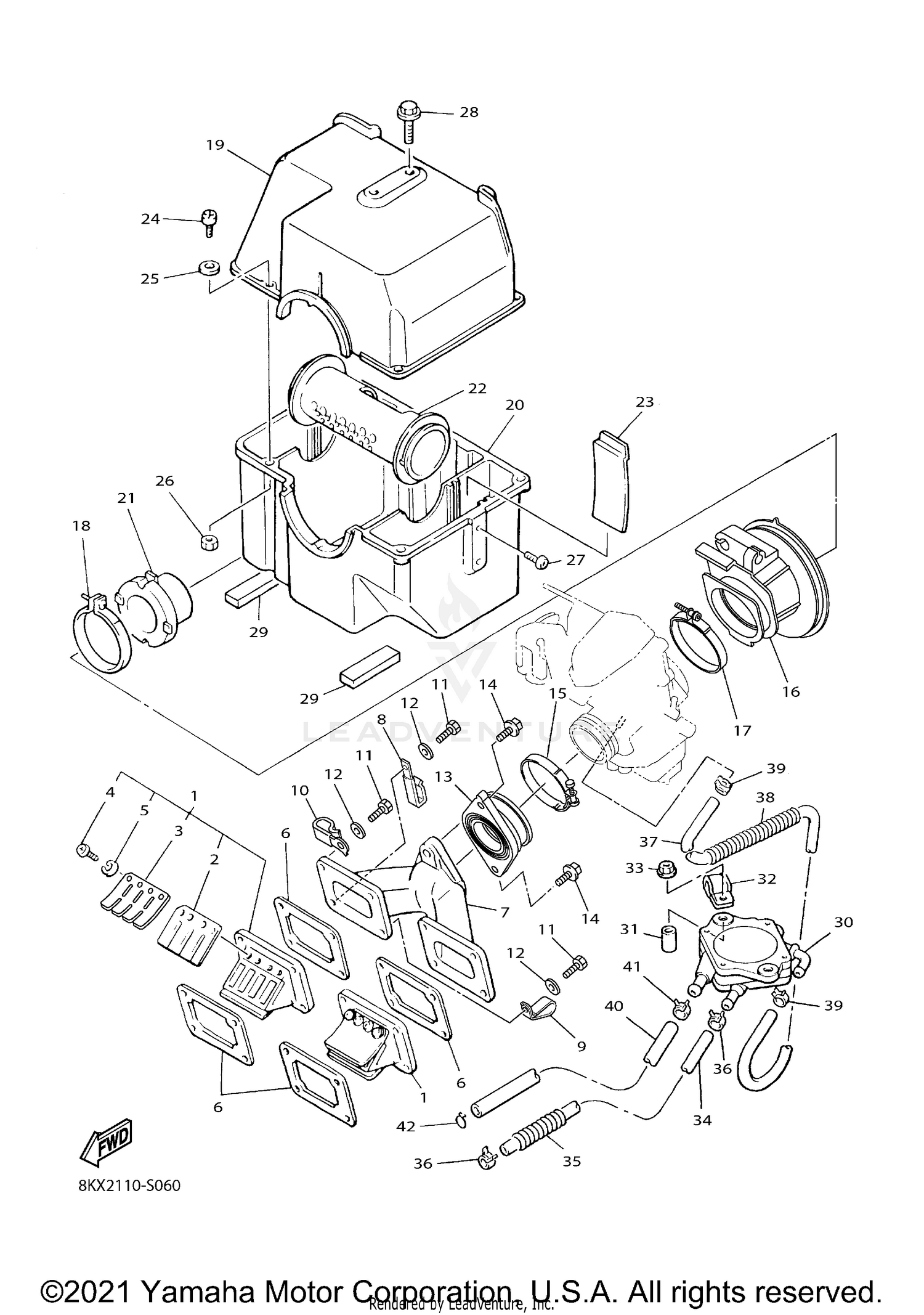

| Ref | Part Number | Description |
|---|
| 1 |
8KX-13610-01-00 |
REED VALVE ASSY Price: $160.99 |
| 2 |
8KX-13613-00-00 |
REED, VALVE Price: $12.49 |
| 3 |
8KX-13616-00-00 |
STOPPER, REED VALVE Price: $10.49 |
| 4 |
98580-03008-00 |
SCREW, PAN HEAD This part replaces 98502-03008-00. Price: $3.85 |
| 5 |
92990-03100-00 |
WASHER, SPRING This part replaces 92902-03100-00. Price: $9.49 |
| 6 |
8Y7-13556-01-00 |
GASKET, MANIFOLD Price: $10.49 |
| 7 |
83R-13565-00-00 |
JOINT, CARBURETOR Price: $98.99 |
| 8 |
90465-08277-00 |
CLAMP Price: $12.49 |
| 9 |
90461-10011-00 |
CLAMP Price: $13.49 |
| 10 |
90465-06376-00 |
CLAMP This part replaces 90465-08125-00. Price: $10.49 |
| 11 |
97017-06025-00 |
BOLT This part replaces 97027-06025-00. Price: $4.55 |
| 12 |
92907-06600-00 |
WASHER, PLATE Price: $1.00 |
| 13 |
8KX-13555-00-00 |
MANIFOLD, INTAKE Price: $62.99 |
| 14 |
95022-08025-00 |
BOLT, FLANGE Price: $9.49 |
| 15 |
90450-53007-00 |
HOSE CLAMP ASSY This part replaces 90450-53004-00. Price: $9.49 |
| 16 |
8KX-14453-00-00 |
JOINT, AIR CLEANER 1 Price: $31.99 |
| 17 |
90450-53012-00 |
HOSE CLAMP ASSY Price: $9.49 |
| 18 |
90450-99050-00 |
HOSE CLAMP ASSY Price: $15.49 |
| 19 |
8H8-14431-00-00 |
SILENCER, INTAKE 1 Price: $66.99 |
| 20 |
8H8-14441-00-00 |
SILENCER, INTAKE 2 Price: $118.99 |
| 21 |
83R-14465-00-00 |
PIPE Price: $25.99 |
| 22 |
8H8-14466-00-00 |
PIPE Price: $24.99 |
| 23 |
8H8-14477-00-00 |
PLATE Price: $4.45 |
| 24 |
98507-05016-00 |
SCREW, PAN HEAD This part replaces 98502-05016-00. Price: $1.80 |
| 25 |
92990-05600-00 |
WASHER, PLATE This part replaces 92902-05600-00. Price: $0.80 |
| 26 |
95317-05700-00 |
NUT This part replaces 95302-05700-00. Price: $9.49 |
| 27 |
98580-06010-00 |
SCREW, PAN HEAD This part replaces 98502-06010-00. Price: $9.49 |
| 28 |
90105-06175-00 |
BOLT,WASHER BASED This part replaces 90105-06176-00. Price: $3.85 |
| 29 |
83R-14425-00-00 |
DAMPER 1 Price: $8.49 |
| 30 |
8AT-24410-00-00 |
FUEL PUMP ASSY Price: $248.99 |
| 31 |
90387-105G5-00 |
COLLAR This part replaces 90387-063W4-00. Price: $11.49 |
| 32 |
90465-06100-00 |
CLAMP This part replaces 90465-08316-00. Price: $5.49 |
| 33 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 34 |
90445-11073-00 |
HOSE (L310) Price: $24.99 |
| 35 |
90501-084G9-00 |
SPRING, COMPRESSION Price: $4.70 |
| 36 |
90467-11044-00 |
CLIP This part replaces 90467-11032-00. Price: $9.49 |
| 37 |
90445-09033-00 |
HOSE (L420) Price: $42.99 |
| 38 |
90501-084J0-00 |
SPRING, COMPRESSION Price: $8.49 |
| 39 |
90467-09026-00 |
CLIP Price: $3.55 |
| 40 |
90445-11070-00 |
HOSE (L80) Price: $8.49 |
| 41 |
90467-11044-00 |
CLIP This part replaces 90467-11032-00. Price: $9.49 |
