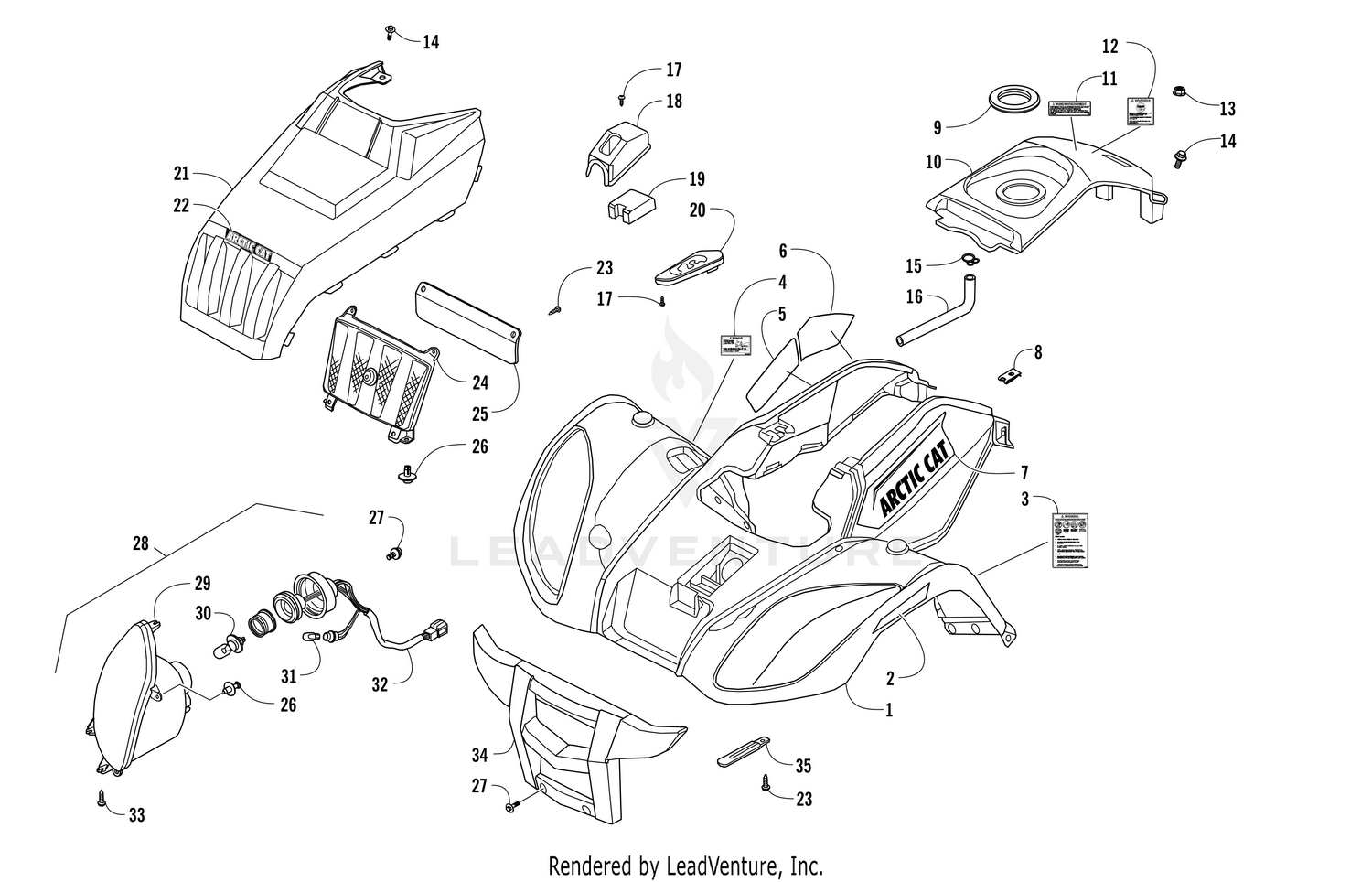

FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES [302036]

Parts (33)

Ref	Part Number	Description
2	1411-180	REFLECTOR,FRONT-RH Price: $15.66
2	1411-181	REFLECTOR,FRONT-LH Price: $15.66
3	1411-932	Decal, Warning - General Price: $12.95
4	0411-836	DECAL,WARNING HILL (MINI) Price: $11.89
5	5411-916	DECAL,SIDE-ARCTIC CAT-LOWER-RH (150) Price: $21.31
6	5411-944	DECAL,SIDE-ARCTIC CAT-RH (150) Price: $38.95
7	5411-945	DECAL,SIDE-ARCTIC CAT-LH (150) Price: $38.95
8	3304-061	NUT CLIP 5MM Price: $2.42
9	3303-721	TRAY TANK COVER Price: $12.51
11	1411-577	Decal, Warning - Not for Highways Price: $7.29
12	1411-377	DECAL,WARNING-AGE (14) Price: $16.80
13	3304-654	Nut, Flange Price: $1.27
14	3304-029	BOLT WASH 5*16 Price: $0.85
15	3303-349	CLIP B10 TUBE Price: $1.08
16	3305-701	TUBE ASSY FUEL DRAIN Price: $3.92
17	3304-650	SCREW TAPPING 5*16 (CIRCLE HEAD) Price: $1.56
18	3305-926	COVER CVT ELEMENT Price: $3.06
19	3305-096	CVT ELEMENT Price: $3.76
20	3305-092	GUIDE COVER CHANGE HANDLE Price: $7.23
21	3305-697	COVER FRONT (RED) Price: $80.95
22	2411-465	DECAL,"ARCTIC CAT" Price: $5.84
23	3304-651	SCREW TAPPING 4*12 Price: $1.23
24	3305-095	GRILLE FRONT (RED) Price: $14.08
25	3305-925	FENDER,INNER Price: $7.38
26	3304-057	CLIP FENDER Price: $2.00
27	3304-587	BOLT WASHER 6*16 Price: $1.27
29	3304-643	UNIT HEAD LIGHT RH Price: $134.95
29	3304-644	UNIT HEAD LIGHT LH Price: $202.95
30	3303-846	BULB HEAD LIGHT This part replaces 3303-846. Price: $45.95
31	3303-847	BULB POSITION LIGHT 12V5W Price: $6.43
32	3305-065	SOCKET COMP Price: $27.24
33	3304-645	SCREW TAPPING 5*12 Price: $1.41
34	3306-148	COVER BUMPER,FRONT (FRONT BUMPER/FASCIA) Price: $48.95
