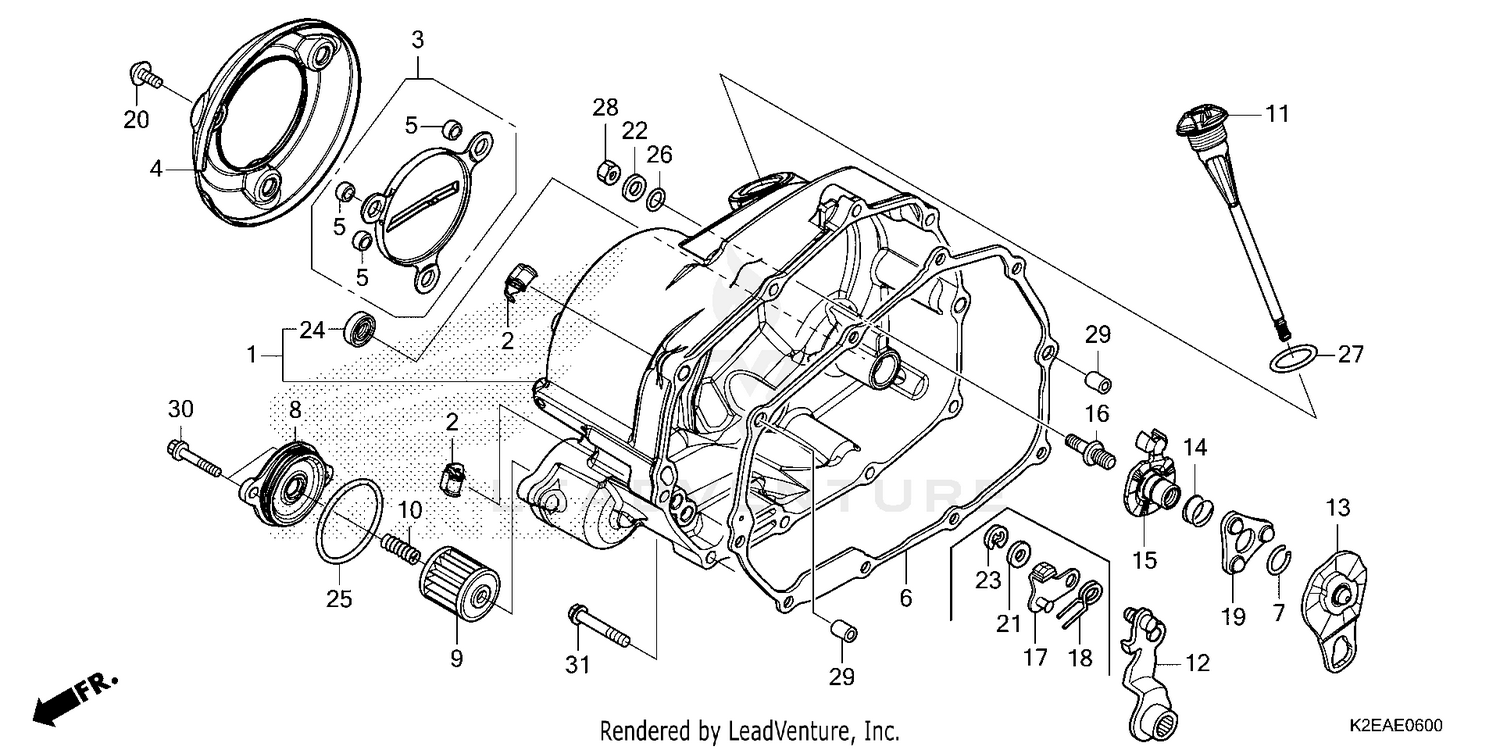

| Ref | Part Number | Description |
|---|
| 1 |
11330-K2E-T10 |
COVER, R. CRANKCASE Price: $79.51 |
| 2 |
11346-KTR-940 |
CLAMP A, OIL TEMP SENSOR CORD Price: $0.96 |
| 3 |
11370-K2E-T10 |
PROTECTOR, R. COVER Price: $11.78 |
| 4 |
11372-K2E-T10 |
PROTECTOR, R. COVER Price: $42.76 |
| 5 |
11373-K2E-T00 |
COLLAR (10MM) Price: $1.31 |
| 6 |
11394-K1M-T02 |
GASKET, R. CRANKCASE COVER (NICHIAS) Price: $6.69 |
| 7 |
13115-GN5-910 |
CLIP, PISTON PIN (13MM) Price: $0.87 |
| 8 |
15411-K0G-T20 |
COVER, OIL FILTER Price: $32.20 |
| 9 |
15412-MGS-D21 |
ELEMENT, OIL FILTER Price: $10.26 |
| 10 |
15414-MEB-670 |
SPRING, OIL FILTER Price: $3.00 |
| 11 |
15651-K2E-T10 |
DIPSTICK, OIL Price: $5.45 |
| 12 |
22810-K0G-T20 |
LEVER, CLUTCH Price: $42.04 |
| 13 |
22823-K0G-T20 |
PLATE Price: $8.19 |
| 14 |
22825-KWB-600 |
SPRING, CAM PLATE SIDE Price: $0.67 |
| 15 |
22830-K0G-T20 |
PLATE, CLUTCH LIFTER Price: $10.71 |
| 16 |
22846-K1M-T00 |
BOLT, CLUTCH ADJ. Price: $1.24 |
| 19 |
22860-K1M-T00 |
RETAINER, BALL Price: $5.00 |
| 20 |
90130-K0W-N00 |
SCREW, PAN (6X14) Price: $1.42 |
| 22 |
90485-K1M-T00 |
WASHER (8MM) Price: $1.24 |
| 24 |
91202-KRS-971 |
OIL SEAL (13.8X24X5) Price: $0.96 |
| 25 |
91302-K0G-911 |
O-RING (39.8X2.2) Price: $1.15 |
| 26 |
91303-001-010 |
O-RING (8MM) Price: $2.76 |
| 27 |
91307-KRM-840 |
O-RING (18X3) Price: $0.95 |
| 28 |
94030-08000 |
NUT, HEX. (8MM) Price: $1.12 |
| 29 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 30 |
96001-06018-00 |
BOLT, FLANGE (6X18) Price: $1.88 |
