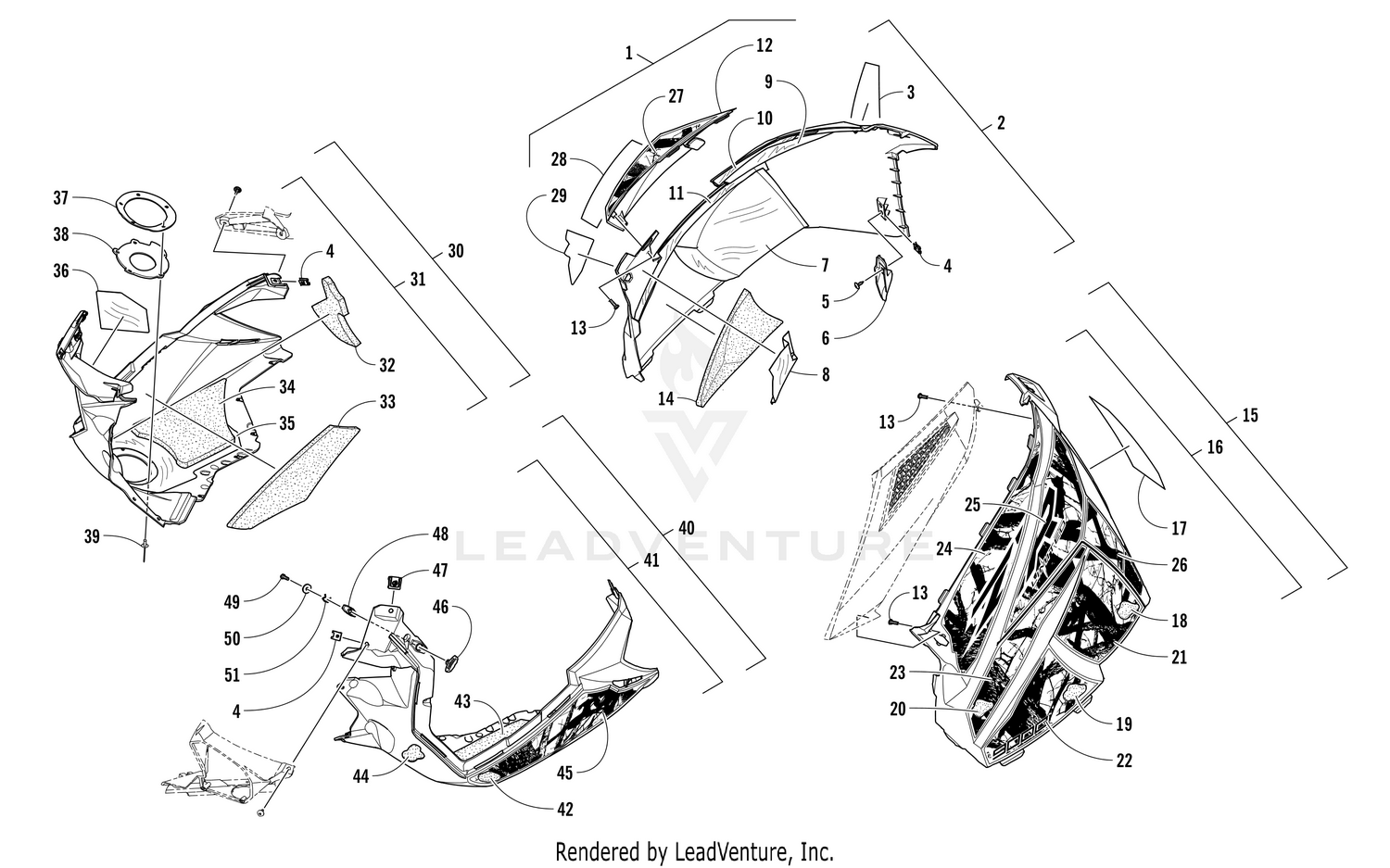

SKID PLATE AND SIDE PANEL ASSEMBLY [105091]

Parts (49)

Ref	Part Number	Description
3	3621-487	Decal, Warning - English Price: $12.07
4	1623-939	Nut, U Price: $1.30
5	2623-166	Screw, Self-Tapping Price: $1.66
6	7606-292	Hook, Mounting - Right Price: $3.14
6	7606-293	Hook, Mounting - Left Price: $3.14
7	7606-076	Foil, Protective - Lower - Rear - Right Price: $35.95
8	7606-498	Foil, Protective - Upper Front - Right Price: $5.95
9	7606-288	Foil, Protective - Upper - Right Price: $5.95
10	7606-432	Foil, Protective - Right Price: $4.11
11	7606-116	Foil, Protective - Middle - Right Price: $35.95
12	7606-091	Vent, Side Panel Price: $31.95
13	2623-211	Screw, Self-Tapping Price: $1.32
14	0617-754	Foam, Side Panel - Lower Front - Right Price: $16.92
17	3621-486	Decal, Warning - French Price: $12.07
18	0617-757	Foam, Side Panel - Lower Rear - Left Price: $18.13
19	0617-755	Foam, Side Panel - Lower Front - Left Price: $16.92
20	0617-759	Foam, Side Panel - Middle - Left Price: $16.92
21	3621-662	Decal, Side Panel - Lower Rear - Right Price: $57.95
21	3621-663	Decal, Side Panel - Lower Rear - Left Price: $2.37
22	3621-664	Decal, Side Panel - Lower Forward - "9000" - Right Price: $79.95
22	3621-665	Decal, Side Panel - Lower Forward - "9000" - Left Price: $28.95
23	3621-666	Decal, Side Panel - Mid Forward - Right Price: $57.95
23	3621-667	Decal, Side Panel - Mid Forward - Left Price: $2.09
24	3621-668	Decal, Side Panel - Upper Front - Right Price: $55.95
24	3621-669	Decal, Side Panel - Upper Front - Left Price: $5.70
25	3621-672	Decal, Side Panel - Rear Upper - Right Price: $47.95
26	3621-674	Decal, Side Panel - Rear Lower - Right Price: $18.13
26	3621-675	Decal, Side Panel - Rear Lower - Left Price: $2.24
27	3621-678	Decal, Side Panel - Upper - Vent - Right Price: $55.95
28	3621-676	Decal, Side Panel - Lower - Vent - Right Price: $77.95
29	3621-680	Decal, Side Panel - Upper Rear - Right Price: $9.01
32	0617-760	Foam, Skid Plate - Front - Right Price: $6.95
33	0617-762	Foam, Skid Plate - Middle - Right Price: $16.92
34	0617-764	Foam, Skid Plate - Lower - Right Price: $22.99
35	3612-192	Foil, Skid Plate - Right Price: $7.95
36	3612-274	Foil, Skid Plate - Right Price: $1.49
37	3612-193	Plate, Exhaust Outlet Price: $7.23
38	3612-191	Seal, Exhaust Outlet Price: $13.28
39	8061-708	Rivet Price: $1.08
42	0617-765	Foam, Skid Plate - Lower - Left Price: $16.92
43	0617-763	Foam, Skid Plate - Middle - Left Price: $16.92
44	0617-761	Foam, Skid Plate - Front - Left Price: $16.92
45	3621-656	Decal, Skid - Front - Right Price: $21.77
45	3621-657	Decal, Skid - Front - Left Price: $21.77
46	7606-265	Knob, Hold-Down Price: $1.70
47	2623-005	Clip, Retaining Price: $2.91
48	7606-296	Plate, Backing Price: $1.70
49	1623-933	Screw, Self-Tapping Price: $0.35
50	2623-171	Washer Price: $1.08
