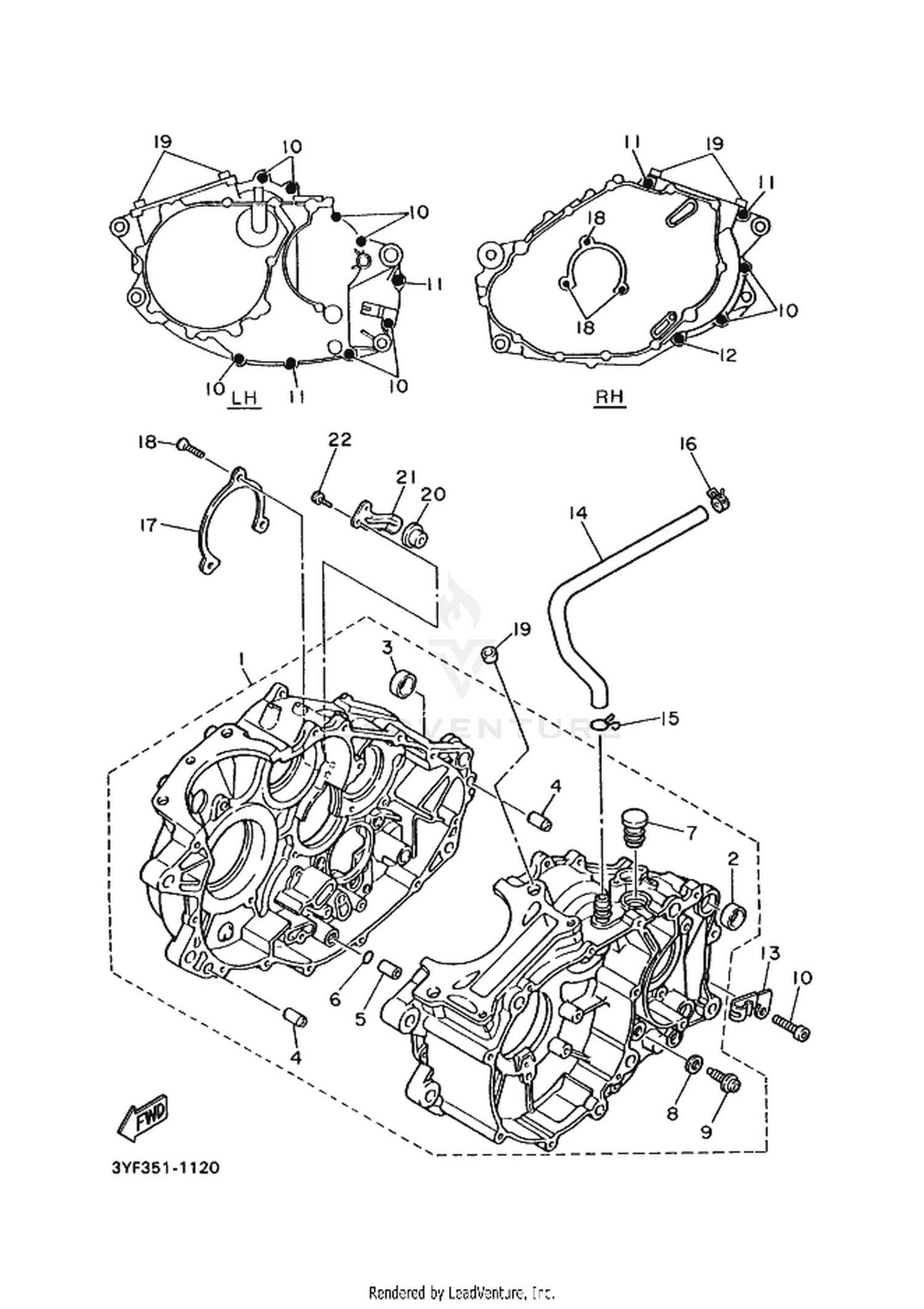

12 CRANKCASE
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3YF-15100-00 | CRANKCASE ASSY Price: Call Us |
| 4 | 99510-12016 | PIN, DOWEL Price: Call Us |
| 6 | 93210-07135 | O-RING Price: Call Us |
| 8 | 90201-08087 | WASHER, PLATE Price: Call Us |
| 10 | 91317-06030 | BOLT Price: Call Us |
| 11 | 91317-06045 | BOLT Price: Call Us |
| 12 | 91317-06060 | BOLT Price: Call Us |
| 13 | 90465-08344 | CLAMP Price: Call Us |
| 14 | 3TB-11166-00 | PIPE, BREATHER 1 Price: Call Us |
| 15 | 90467-14015 | CLIP Price: Call Us |
| 16 | 90467-17128 | CLIP Price: Call Us |
| 17 | 5Y1-15383-00 | PLATE, BEARING COVER Price: Call Us |
| 18 | 98707-06012 | SCREW, FLAT HEAD Price: Call Us |
| 19 | 99530-14016 | PIN, DOWEL Price: Call Us |
| 20 | 3Y6-15167-00 | PLUG, BLIND 1 Price: Call Us |
| 21 | 3Y6-15144-00 | PLATE, LOCK Price: Call Us |
