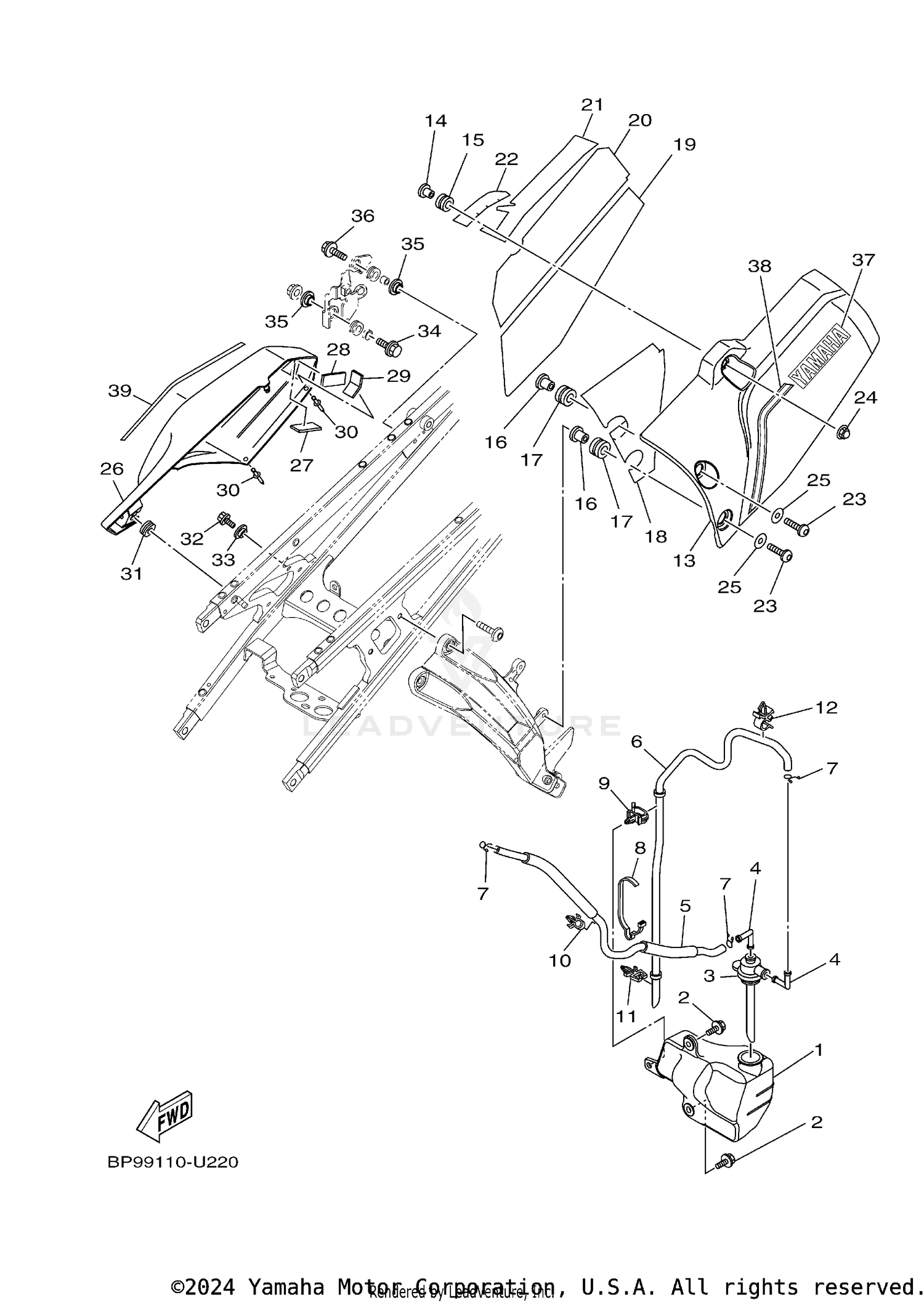

| Ref | Part Number | Description |
|---|
| 1 |
23P-21871-00-00 |
TANK, RECOVERY Price: $47.99 |
| 2 |
90119-06137-00 |
BOLT, WITH WASHER Price: $9.49 |
| 3 |
23P-21875-00-00 |
CAP Price: $16.49 |
| 4 |
26H-21828-00-00 |
ELBOW Price: $30.99 |
| 5 |
23P-21816-00-00 |
PIPE 1 Price: $19.99 |
| 6 |
23P-21877-00-00 |
PIPE, OVERFLOW Price: $5.49 |
| 7 |
90467-08021-00 |
CLIP This part replaces 90467-08075-00. Price: $9.49 |
| 8 |
90464-07M40-00 |
CLAMP Price: $18.49 |
| 9 |
90464-14M55-00 |
CLAMP Price: $2.55 |
| 10 |
90464-08008-00 |
CLAMP Price: $1.50 |
| 11 |
90464-07M56-00 |
CLAMP Price: $3.40 |
| 12 |
90464-09129-00 |
CLAMP Price: $2.22 |
| 13 |
2BS-14718-00-00 |
PROTECTOR, MUFFLER 1 Price: $87.99 |
| 14 |
90387-06273-00 |
COLLAR Price: $4.05 |
| 15 |
90480-12581-00 |
GROMMET Price: $8.49 |
| 16 |
90387-10102-00 |
COLLAR Price: $5.49 |
| 17 |
90480-01025-00 |
GROMMET Price: $4.55 |
| 18 |
2BS-1475P-00-00 |
SEAT Price: $35.99 |
| 19 |
2BS-1476P-00-00 |
SEAT Price: $39.99 |
| 20 |
2BS-1477P-00-00 |
SEAT Price: $28.99 |
| 21 |
2BS-1479P-00-00 |
SEAT 5 Price: $16.49 |
| 22 |
2BS-1471P-00-00 |
SEAT, 6 Price: $3.80 |
| 23 |
90111-06038-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.65 |
| 24 |
90176-06047-00 |
NUT, CROWN Price: $10.49 |
| 25 |
90201-06112-00 |
WASHER, PLATE Price: $4.50 |
| 27 |
1S3-82122-00-00 |
SEAT, BATTERY Price: $3.60 |
| 28 |
14B-28237-00-00 |
DAMPER 3 Price: $3.60 |
| 29 |
3D7-1442H-00-00 |
DAMPER 4 Price: $3.60 |
| 30 |
90269-06081-00 |
RIVET Price: $8.49 |
| 31 |
90480-12325-00 |
GROMMET Price: $9.49 |
| 32 |
95814-08016-00 |
BOLT, FLANGE This part replaces 95802-08016-00. Price: $10.49 |
| 33 |
90387-08079-00 |
COLLAR Price: $9.49 |
| 34 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95802-06020-00. Price: $3.50 |
| 35 |
90387-06066-00 |
COLLAR Price: $9.49 |
| 36 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95802-06025-00. Price: $1.75 |
| 37 |
99246-00100-00 |
EMBLEM, YAMAHA Price: $19.49 |
| 38 |
2BS-146E1-90-00 |
GRAPHIC 1 Price: $13.49 |
