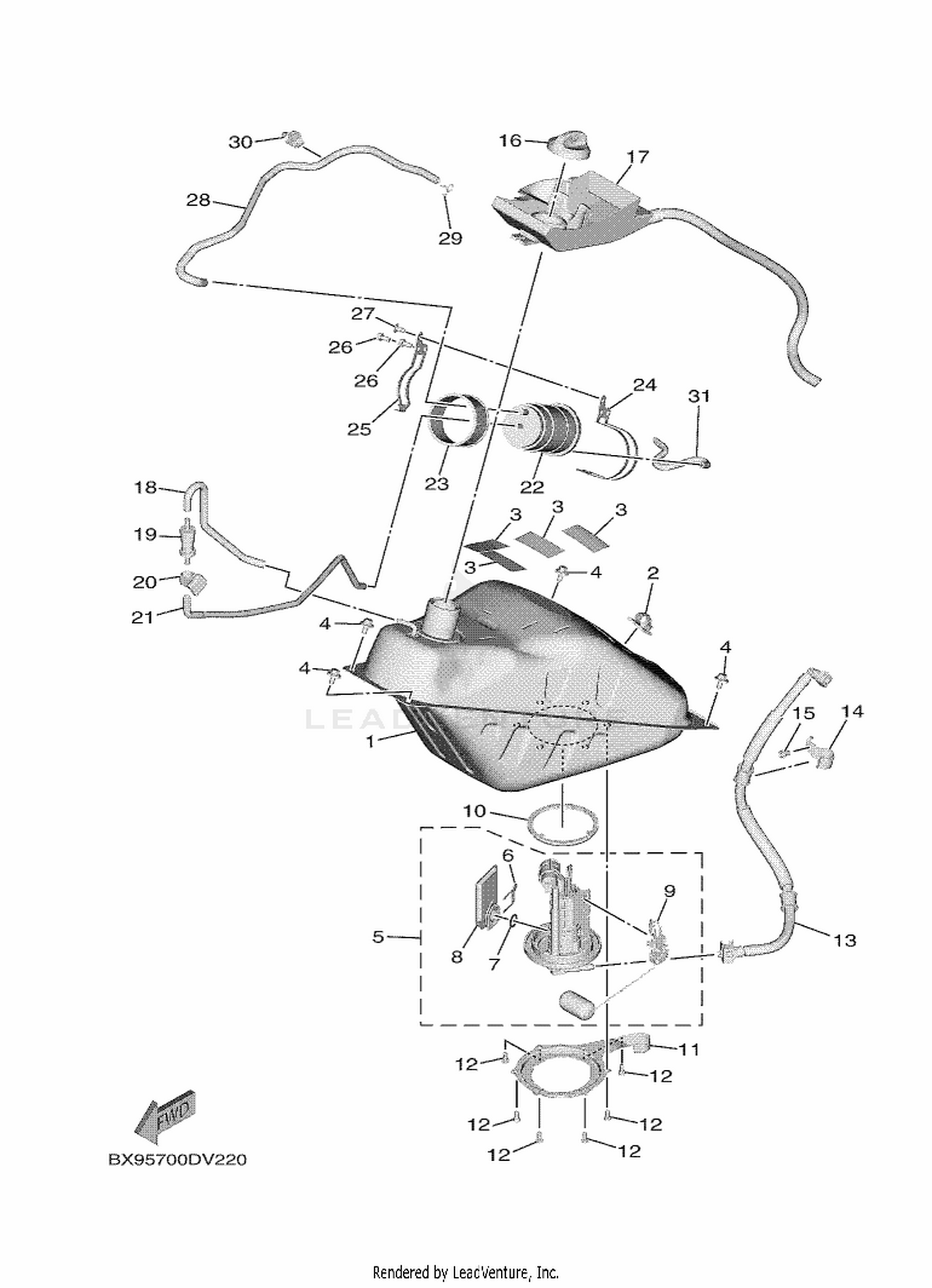

22 FUEL TANK
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B74-F4110-01 | FUEL TANK COMP. Price: Call Us |
| 2 | 90464-13185 | CLAMP Price: Call Us |
| 3 | 16S-F414G-00 | SEAL Price: Call Us |
| 4 | 90119-068A2 | BOLT, WITH WASHER Price: Call Us |
| 5 | B74-E3907-01 | FUEL PUMP COMP. Price: Call Us |
| 10 | 3C1-F4486-00 | O-RING Price: Call Us |
| 11 | B74-F4425-00 | BRACKET, FUEL PUMP 1 Price: Call Us |
| 12 | 91312-05010 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 13 | B74-E3971-01 | PIPE, FUEL 1 Price: Call Us |
| 14 | B74-F419A-00 | HOLDER Price: Call Us |
| 15 | 95E32-06012 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 16 | B74-F4610-00 | CAP ASSY Price: Call Us |
| 17 | B74-F414A-00 | COVER, FILLER Price: Call Us |
| 18 | B74-F4313-00 | PIPE 3 Price: Call Us |
| 19 | 1DW-F4180-02 | ROLL OVER VALVE ASSY Price: Call Us |
| 20 | B74-F4135-00 | CLAMP 1 Price: Call Us |
| 21 | B74-F4314-01 | PIPE 4 Price: Call Us |
| 22 | B74-F4170-00 | CANISTER ASSY Price: Call Us |
| 23 | B74-F483H-00 | BAND Price: Call Us |
| 24 | B74-F452E-00 | STAY Price: Call Us |
| 25 | B74-F454E-00 | STAY 2 Price: Call Us |
| 26 | 95E32-06012 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 27 | 90269-06816 | RIVET Price: Call Us |
| 28 | B74-F4315-01 | PIPE 5 Price: Call Us |
| 29 | 90467-09006 | CLIP Price: Call Us |
| 30 | 90464-10008 | CLAMP Price: Call Us |
