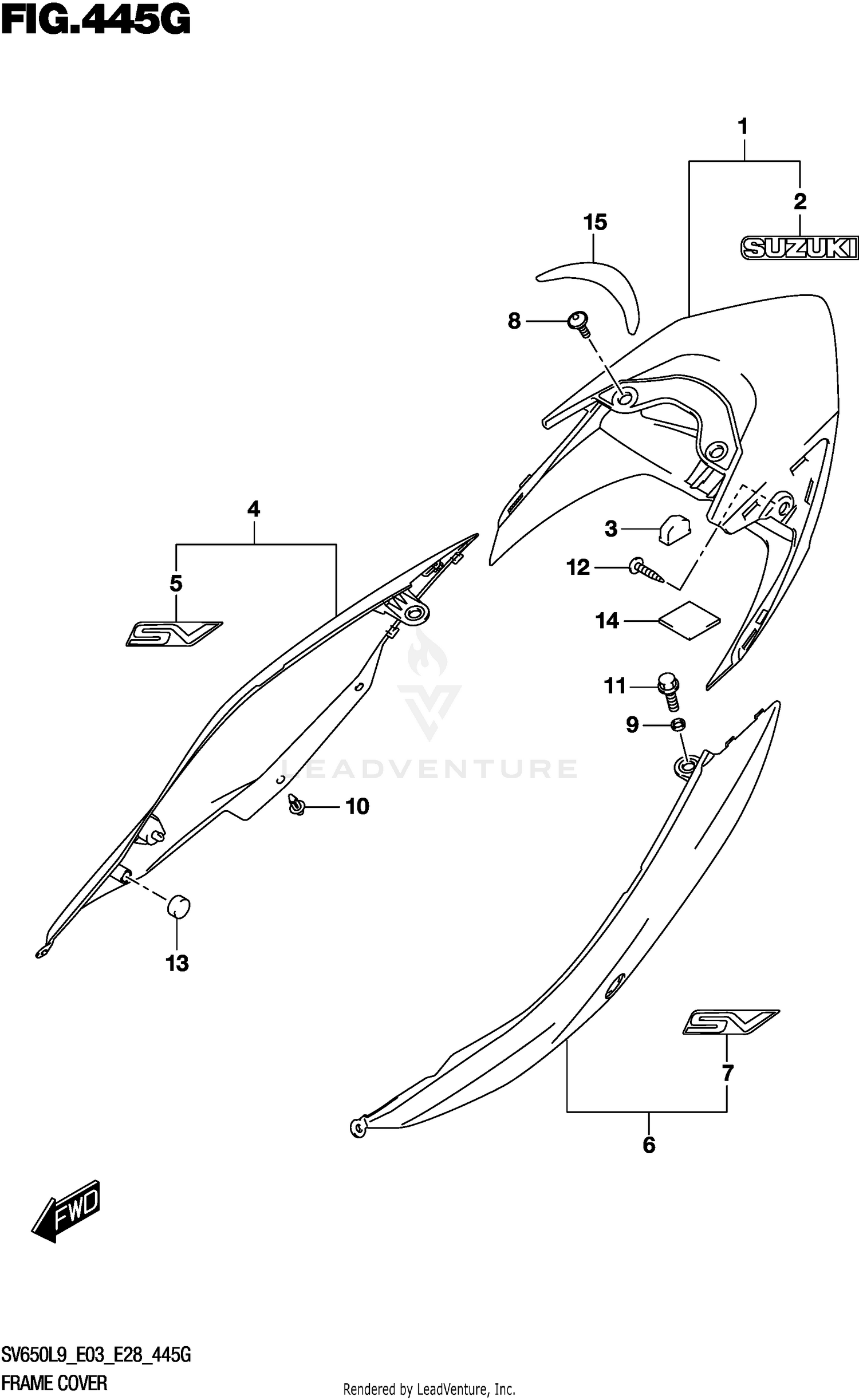

FRAME COVER (SV650AL9 E33) (FOR YVB,QEB)
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47310-18K01-4TX | COVER,FRAME RR CTR (BLACK) This part replaces 47310-18K00-4TX. Price: $197.47 |
| 3 | 47315-18K00 | CUSHION,FRAME COVER CTR Price: $13.76 |
| 8 | 09139-05074 | BOLT (5X13) Price: $3.02 |
| 9 | 09180-08052 | SPACER (8.5X12X2.5) Price: $1.25 |
| 10 | 09409-06314-5PK | CLIP This part replaces 09409-06314. Price: $3.23 |
| 11 | 01550-0812A | BOLT Price: $2.79 |
| 12 | 03541-0510A | SCREW Price: $1.73 |
| 13 | 09329-14003 | CUSHION (14X20X9) This part replaces 09329-14002. Price: $3.31 |
