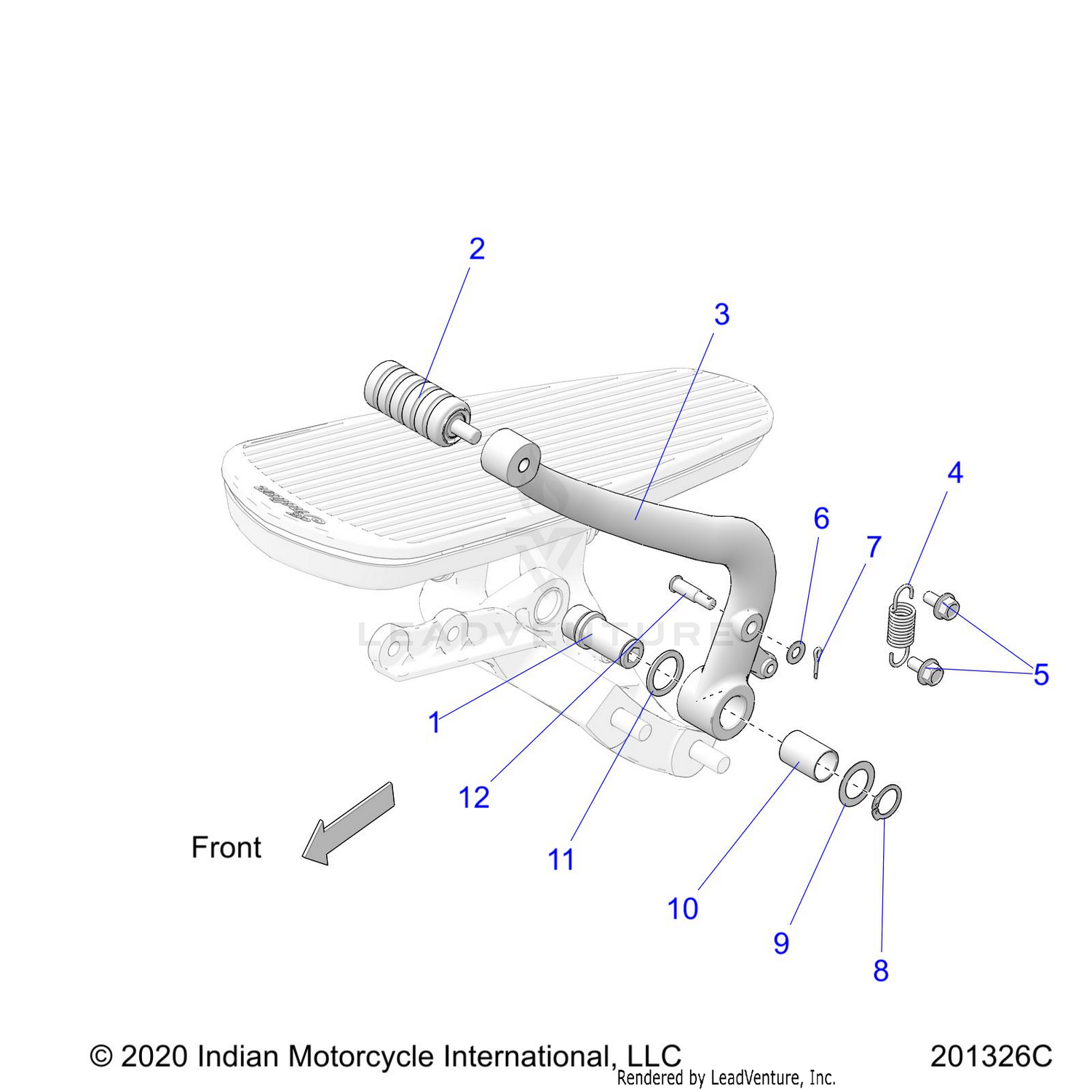

BRAKES, BRAKE PEDAL ASM. - N22DBABH/DBDBH ALL OPTIONS (201326C)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5140782 | PIN-THREADED PIVOT SHAFT Price: $34.99 |
| 2 | 5412493H | PEG-SHIFTER, BRAKE Price: $44.99 |
| 4 | 7042288H | SPRING-EXTENSION,BRAKE, RETURN Price: $44.99 |
| 5 | 7517704H | SCR-HXFL-M6X1.0X12 8.8 ZPB Price: $8.99 |
| 6 | 7556121H | WASHER-FL,6.0X0.8,0600090(10) Price: $1.49 |
| 7 | 7661010H | PIN, COTTER Price: $1.19 |
| 8 | 7710499H | RING, RETAINING Price: $8.99 |
| 9 | 7556075H | WASHER Price: $12.99 |
| 10 | 3514335H | BEARING-SHIFT PEDAL Price: $24.99 |
| 11 | 7556273H | WASHER-WAVE,M19 Price: $2.99 |
