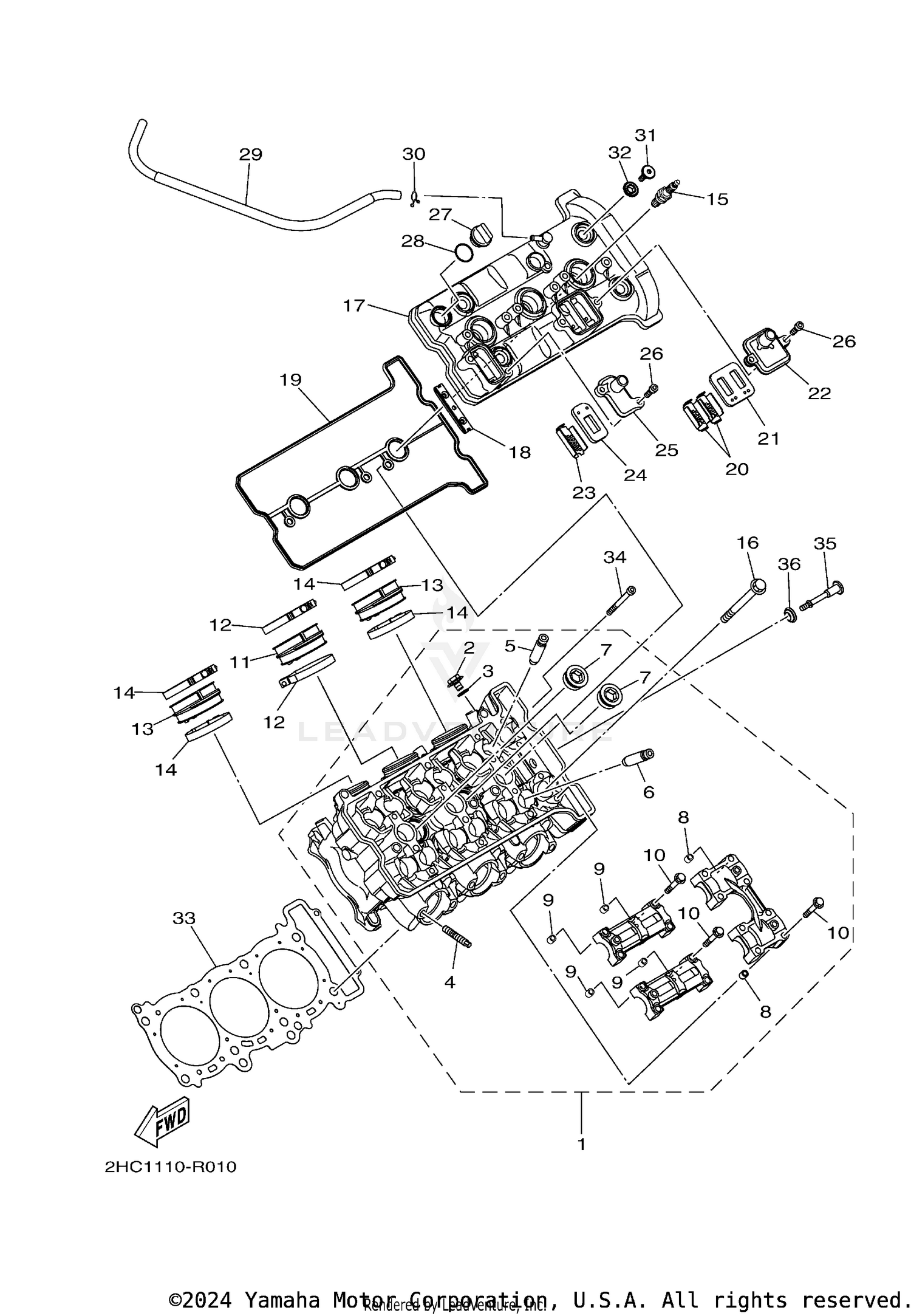

| Ref | Part Number | Description |
|---|
| 1 |
2HC-11101-08-00 |
CYLINDER HEAD ASSY Price: $1,298.99 |
| 2 |
95E32-08012-00 |
BOLT, FLANGE DEEP RE Price: $0.95 |
| 3 |
90430-08119-00 |
GASKET Price: $7.49 |
| 4 |
90116-08087-00 |
BOLT, STUD Price: $9.49 |
| 5 |
2C0-11133-11-00 |
GUIDE, VALVE 1 Price: $69.99 |
| 6 |
8HF-11134-10-00 |
GUIDE, VALVE 2 Price: $107.99 |
| 7 |
90340-27129-00 |
PLUG, STRAIGHT SCREW Price: $5.60 |
| 8 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 9 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 10 |
90105-06027-00 |
BOLT, FLANGE Price: $8.49 |
| 11 |
8HF-13595-00-00 |
JOINT Price: $64.99 |
| 12 |
90450-60004-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 13 |
8HF-13595-00-00 |
JOINT Price: $64.99 |
| 14 |
90450-60004-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 15 |
CR9-EB000-00-00 |
PLUG, SPARK (NGK CR9EB) Price: $11.99 |
| 16 |
90119-10004-00 |
BOLT, WITH WASHER Price: $9.99 |
| 17 |
2HC-11191-00-00 |
COVER, CYLINDER HEAD 1 Price: $145.99 |
| 18 |
5BE-12241-01-00 |
GUIDE, STOPPER 2 Price: $32.99 |
| 19 |
2HC-11193-00-00 |
GASKET, HEAD COVER 1 Price: $28.99 |
| 20 |
5VY-1482K-00-00 |
PLATE Price: $5.49 |
| 21 |
5SL-14890-00-00 |
REED VALVE ASSY Price: $97.99 |
| 22 |
5VY-14899-01-00 |
CAP, CASE Price: $38.99 |
| 23 |
5JW-1482K-01-00 |
PLATE Price: $5.99 |
| 24 |
5JW-14890-00-00 |
REED VALVE ASSY Price: $71.99 |
| 25 |
2HC-14889-00-00 |
CAP, CASE Price: $18.99 |
| 26 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 27 |
3Y1-15363-10-00 |
PLUG, OIL Price: $19.99 |
| 28 |
93210-19123-00 |
O-RING Price: $8.99 |
| 29 |
2HC-11166-00-00 |
PIPE, BREATHER 1 Price: $24.99 |
| 30 |
90467-100A1-00 |
CLIP Price: $8.49 |
| 31 |
90109-066F0-00 |
BOLT Price: $9.49 |
| 32 |
5VY-1111G-00-00 |
RUBBER, MOUNT 1 Price: $13.49 |
| 33 |
2HC-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $42.99 |
| 34 |
91317-06065-00 |
BOLT This part replaces 91312-06065-00. Price: $4.05 |
| 35 |
90109-06293-00 |
BOLT Price: $15.49 |
