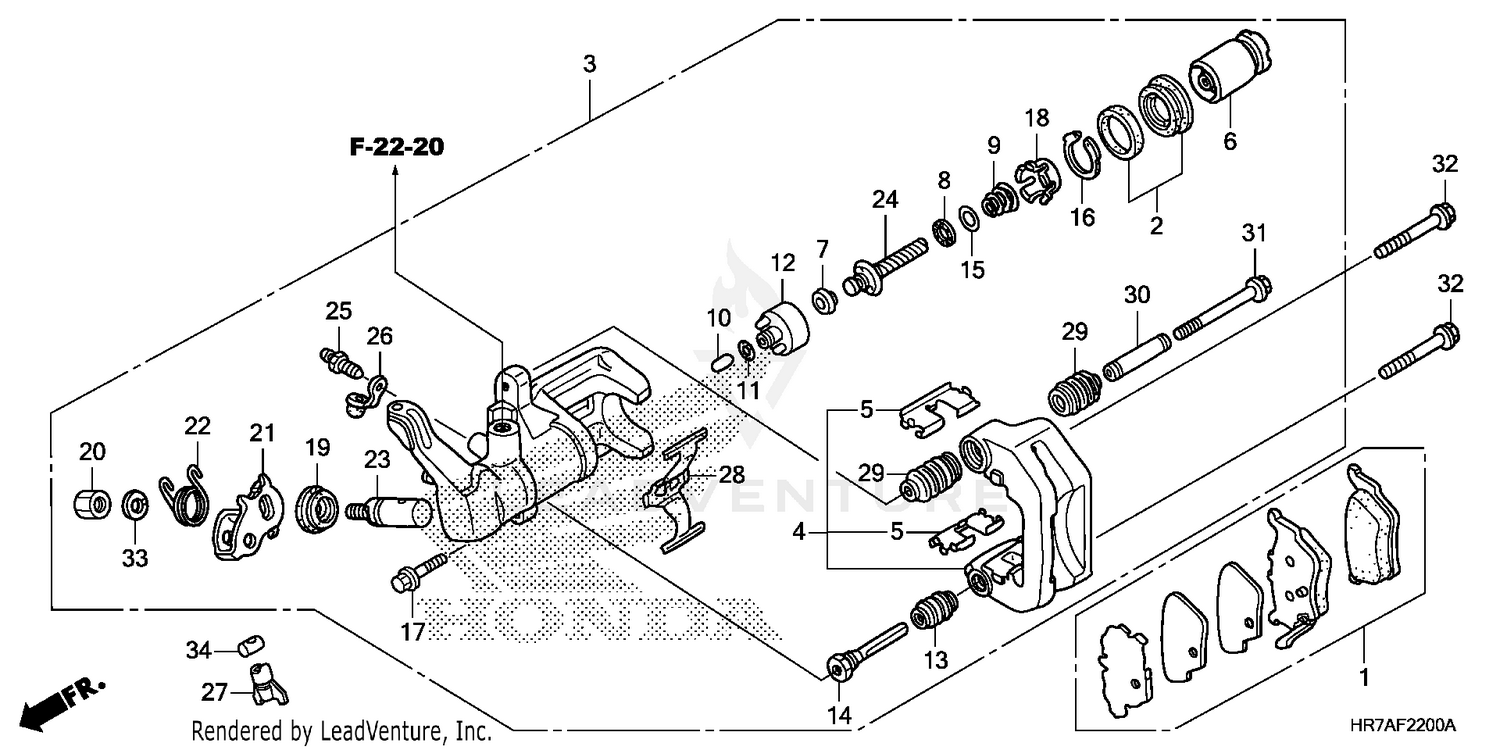

| Ref | Part Number | Description |
|---|
| 1 |
06435-HN8-016 |
PAD SET, RR. Price: $48.78 |
| 2 |
06451-HN8-006 |
SEAL SET, PISTON Price: $15.75 |
| 3 |
43150-HN8-006 |
CALIPER SUB-ASSY., RR. Price: $254.27 |
| 4 |
43210-HN8-006 |
BRACKET, RR. Price: $69.58 |
| 5 |
43211-HN8-006 |
RETAINER, BRACKET Price: $8.89 |
| 6 |
43215-SH3-931 |
PISTON ASSY. Price: $113.13 |
| 7 |
43218-T5B-003 |
CUP Price: $5.62 |
| 8 |
43223-SD2-932 |
BEARING A Price: $16.90 |
| 9 |
43224-SD2-931 |
SPRING B, ADJUSTING Price: $7.45 |
| 10 |
43229-SD2-931 |
ROD Price: $8.95 |
| 11 |
43232-TA0-A01 |
O-RING (NISSIN) Price: $1.07 |
| 12 |
43233-TR0-A01 |
PISTON, SLEEVE Price: $25.83 |
| 13 |
43234-S04-003 |
COVER, DUST Price: $5.88 |
| 14 |
43235-S84-A51 |
PIN A Price: $11.42 |
| 15 |
43236-S04-003 |
SPACER Price: $8.68 |
| 16 |
43238-SD2-931 |
RING, RETAINING Price: $10.92 |
| 17 |
43240-S6M-J51 |
BOLT, FLANGE (8X26) Price: $6.08 |
| 18 |
43241-SD2-931 |
GUIDE, SPRING Price: $10.65 |
| 19 |
43242-SD2-933 |
COVER, SHAFT Price: $12.32 |
| 20 |
43243-HN8-006 |
NUT (10MM) Price: $2.73 |
| 21 |
43245-HN8-006 |
LEVER, BRAKE LOCK Price: $11.36 |
| 22 |
43246-HN8-006 |
SPRING, ARM RETURN Price: $4.11 |
| 23 |
43248-SD2-933 |
SHAFT B (L. SIDE) Price: $33.48 |
| 24 |
43249-S04-003 |
BOLT, ADJUSTER Price: $24.47 |
| 25 |
43352-HC5-971 |
SCREW, BLEEDER (NISSIN) Price: $5.31 |
| 26 |
43353-461-771 |
CAP, BLEEDER Price: $6.35 |
| 27 |
43459-HB2-000 |
NUT, BRAKE ADJUSTING Price: $13.44 |
| 28 |
45108-HN8-006 |
SPRING, PAD Price: $8.44 |
| 29 |
45233-HN8-305 |
SLEEVE, BOOT Price: $8.53 |
| 30 |
45235-S3Y-003 |
SLEEVE Price: $15.18 |
| 31 |
45241-S3Y-003 |
BOLT, FLANGE (8X74) Price: $8.82 |
| 32 |
90131-MS6-900 |
BOLT, FLANGE (8X40) Price: $5.11 |
| 33 |
94111-10800 |
WASHER, SPRING (10MM) Price: $1.22 |
