Parts Catalog

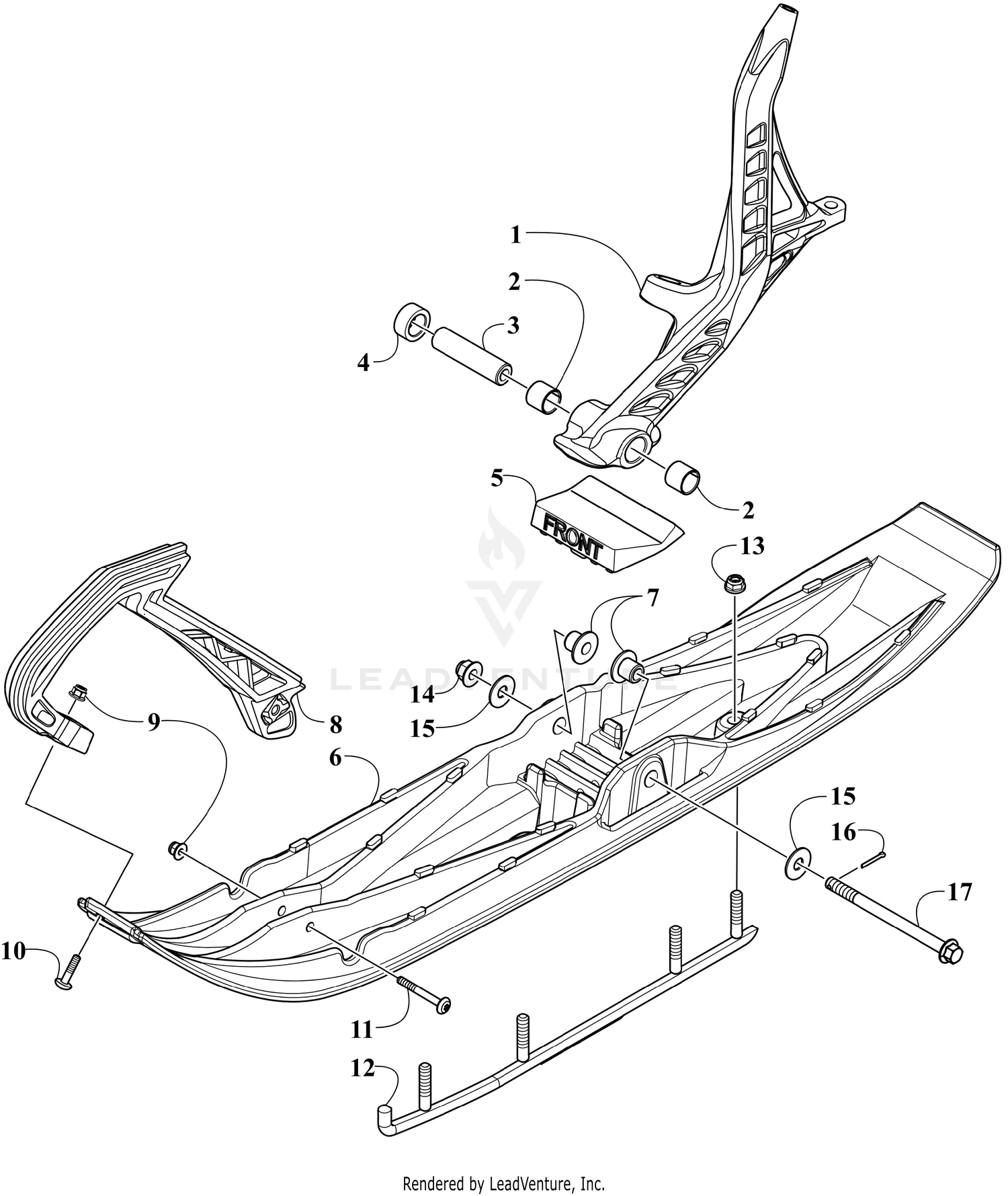

SKI AND SPINDLE ASSEMBLY [110924]

Parts (15)

Ref	Part Number	Description
2	0603-158	Bearing Price: $9.64
3	3603-670	Axle, Spindle Price: $36.95
4	2603-208	Spacer Price: $2.91
5	3603-777	Damper, Ski Price: $17.55
6	3603-605	Ski, Plastic Price: $109.95
7	2603-746	Insert Price: $2.61
8	2603-950	Handle, Plastic - Black Price: $35.95
9	8427-602	Nut, Hex Price: $0.23
10	8476-625	Screw, Machine Price: $1.92
11	8476-650	Screw, Machine Price: $1.70
12	0703-871	Wearbar Price: $67.95
13	8047-486	Nut, Lock Price: $1.07
14	0423-744	Nut, Lock Price: $2.02
15	1623-801	Washer Price: $1.07
16	0123-458	Pin, Cotter Price: $0.46
