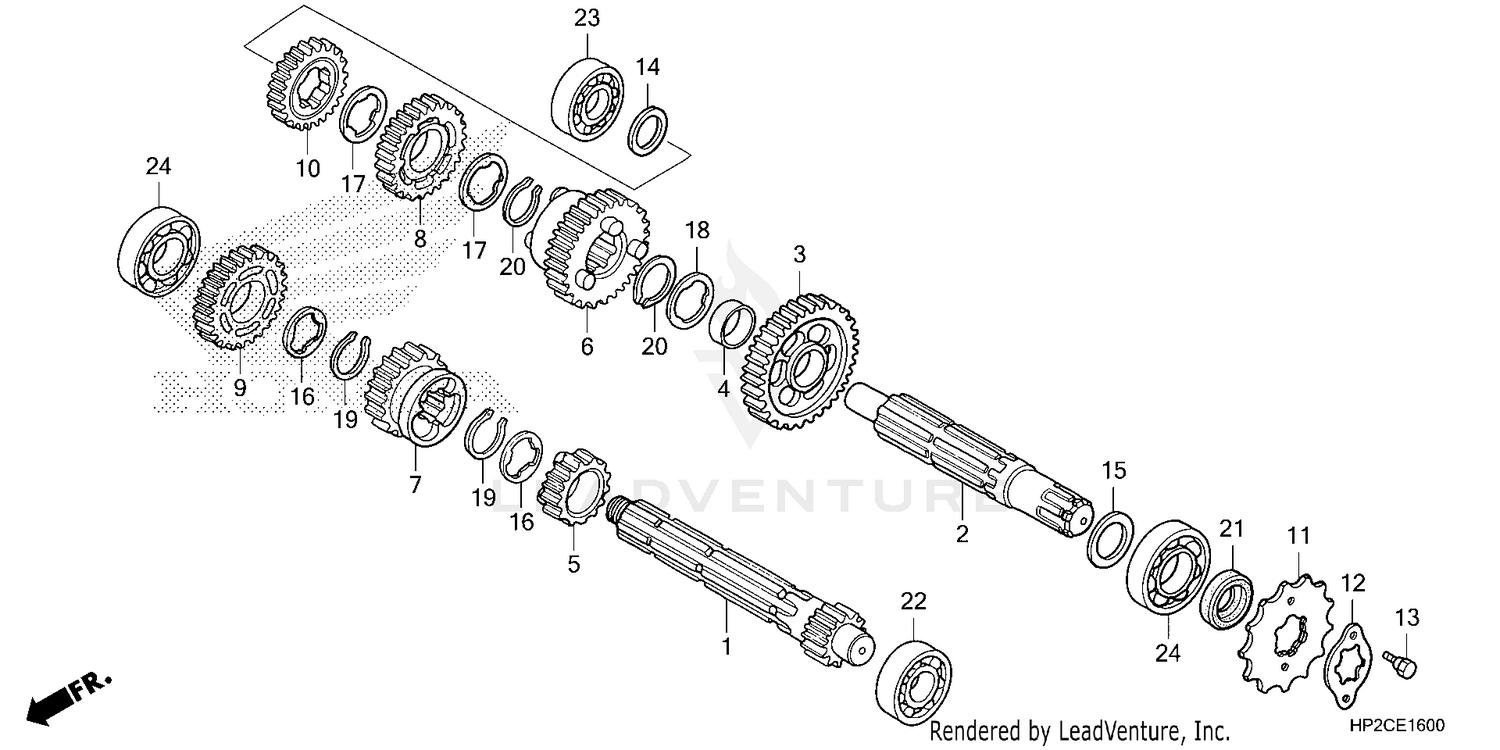

| Ref | Part Number | Description |
|---|
| 1 |
23211-KFM-900 |
MAINSHAFT (12T) Price: $23.82 |
| 2 |
23221-HF7-000 |
COUNTERSHAFT Price: $96.45 |
| 3 |
23421-GN5-910 |
GEAR, COUNTERSHAFT LOW (34T) Price: $68.95 |
| 4 |
23422-GB4-770 |
BUSH (20X9) Price: $20.89 |
| 5 |
23431-HF7-000 |
GEAR, MAINSHAFT SECOND (16T) Price: $55.44 |
| 6 |
23441-HF7-000 |
GEAR, COUNTERSHAFT SECOND (31T) Price: $111.33 |
| 7 |
23451-HF7-000 |
GEAR, MAINSHAFT THIRD (20T) Price: $92.35 |
| 8 |
23461-GK4-762 |
GEAR, COUNTERSHAFT THIRD (26T) Price: $56.89 |
| 9 |
23471-GN5-910 |
GEAR, MAINSHAFT FOURTH (24T) Price: $54.45 |
| 10 |
23481-HF7-000 |
GEAR, COUNTERSHAFT FOURTH (23T) Price: $66.13 |
| 11 |
23801-HF7-000 |
SPROCKET, DRIVE (13T) Price: $41.73 |
| 12 |
23802-041-010 |
PLATE, DRIVE SPROCKET FIXING Price: $2.31 |
| 13 |
90084-041-000 |
BOLT, DRIVE SPROCKET FIXING Price: $5.80 |
| 14 |
90451-GF6-000 |
WASHER, THRUST (12MM) Price: $2.55 |
| 15 |
90452-GB4-770 |
WASHER, THRUST (17MM) Price: $2.35 |
| 16 |
90461-035-000 |
WASHER, SPLINE (17MM) Price: $2.95 |
| 17 |
90461-459-010 |
WASHER, SPLINE (20MM) Price: $6.33 |
| 18 |
90461-GB4-770 |
WASHER, SPLINE (20X1.2) Price: $3.87 |
| 19 |
90601-001-000 |
CIRCLIP (OUTER) (17MM) Price: $1.65 |
| 20 |
90601-459-000 |
CIRCLIP (OUTER) (20MM) Price: $3.55 |
| 21 |
91203-GBG-900 |
OIL SEAL (17X29X5) (ARAI) Price: $8.78 |
| 22 |
96100-60010-00 |
BEARING, RADIAL BALL (6001) Price: $9.64 |
| 23 |
96100-62010-00 |
BEARING, RADIAL BALL (6201) Price: $10.15 |
