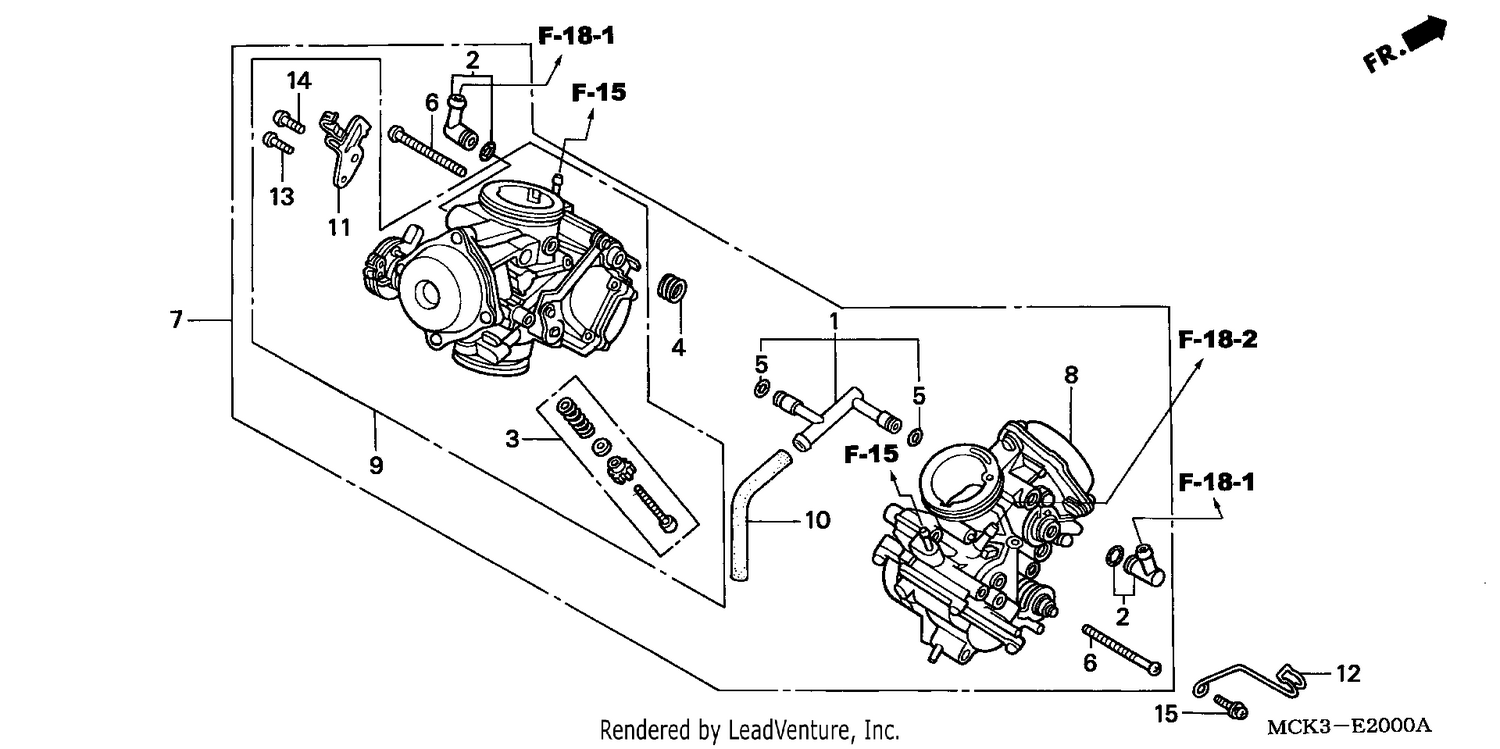

CARBURETOR (ASSY.)
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 16026MAH670 | JOINT SET Price: Call Us |
| 2 | 16026MR1004 | JOINT SET Price: Call Us |
| 3 | 16028MAH000 | SCREW SET Price: Call Us |
| 4 | 16053MG7601 | SPRING Price: Call Us |
| 5 | 16075GHB670 | O-RING, 1.3X7.0 Price: Call Us |
| 6 | 16082ME9671 | SCREW, PAN Price: Call Us |
| 7 | 16100MCKG01 | CARBURETOR ASSY. (VDKEC A) Price: Call Us |
| 8 | 16101MCKG01 | CARBURETOR ASSY., FR. Price: Call Us |
| 9 | 16102MCKG01 | CARBURETOR ASSY., RR. Price: Call Us |
| 10 | 16144MM8004 | TUBE Price: Call Us |
| 11 | 16169MM9621 | STAY COMP., WIRE Price: Call Us |
| 12 | 30701MAH000 | CLAMP, HIGH TENSION CORD Price: Call Us |
| 13 | 938920400810 | SCREW-WASHER, 4X8 Price: Call Us |
| 14 | 938920501210 | SCREW-WASHER, 5X12 Price: Call Us |
