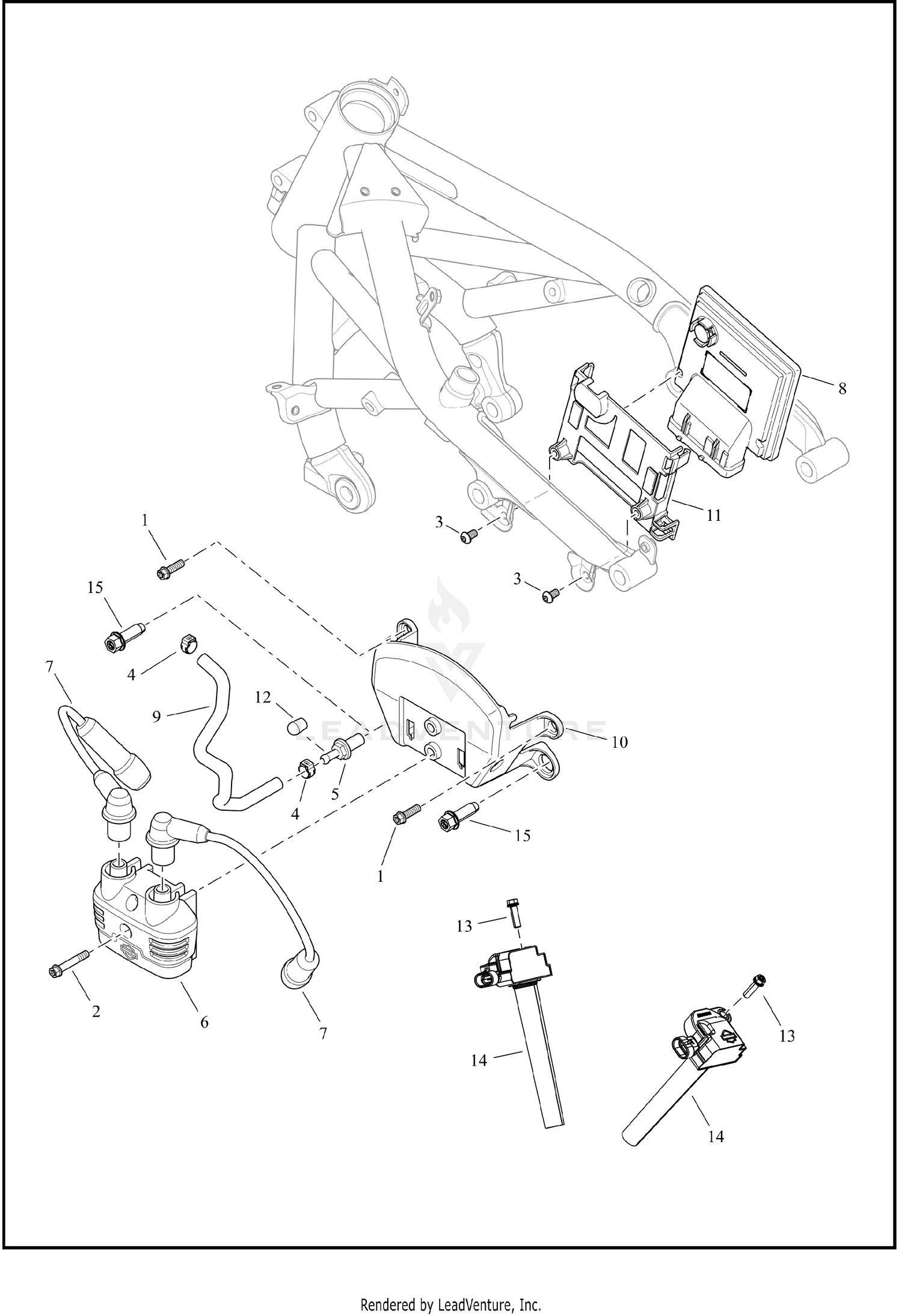

ELECTRONIC IGNITION SYSTEM
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 10200898 | SCREW,FLANGE,HEX,M6 X 20 Price: $0.54 |
| 2 | 10200900 | SCREW,FLANGE,HEX,M6 X 35 Price: $0.54 |
| 3 | 10200934 | SCREW,BHCS, M6X1.0-10 Price: $0.54 |
| 6 | 31600166 | COIL,IGN,DUAL Price: $122.28 |
| 7 | 31600169 | CABLE,S-PLG,COIL ELBOW Price: $13.66 |
| 8 | 41001748 | MODULE,ELEK CONT,ETC,DL Price: $429.65 |
| 10 | 69202117 | BRKT,ELEC MT,IGNITION COIL Price: $23.94 |
| 11 | 69202312 | ELEC MISC CMPNT,ECM CADDY Price: $18.29 |
| 13 | 10201140 | SCREW,FLANGE,HEX,M6 X 20 Price: $0.54 |
