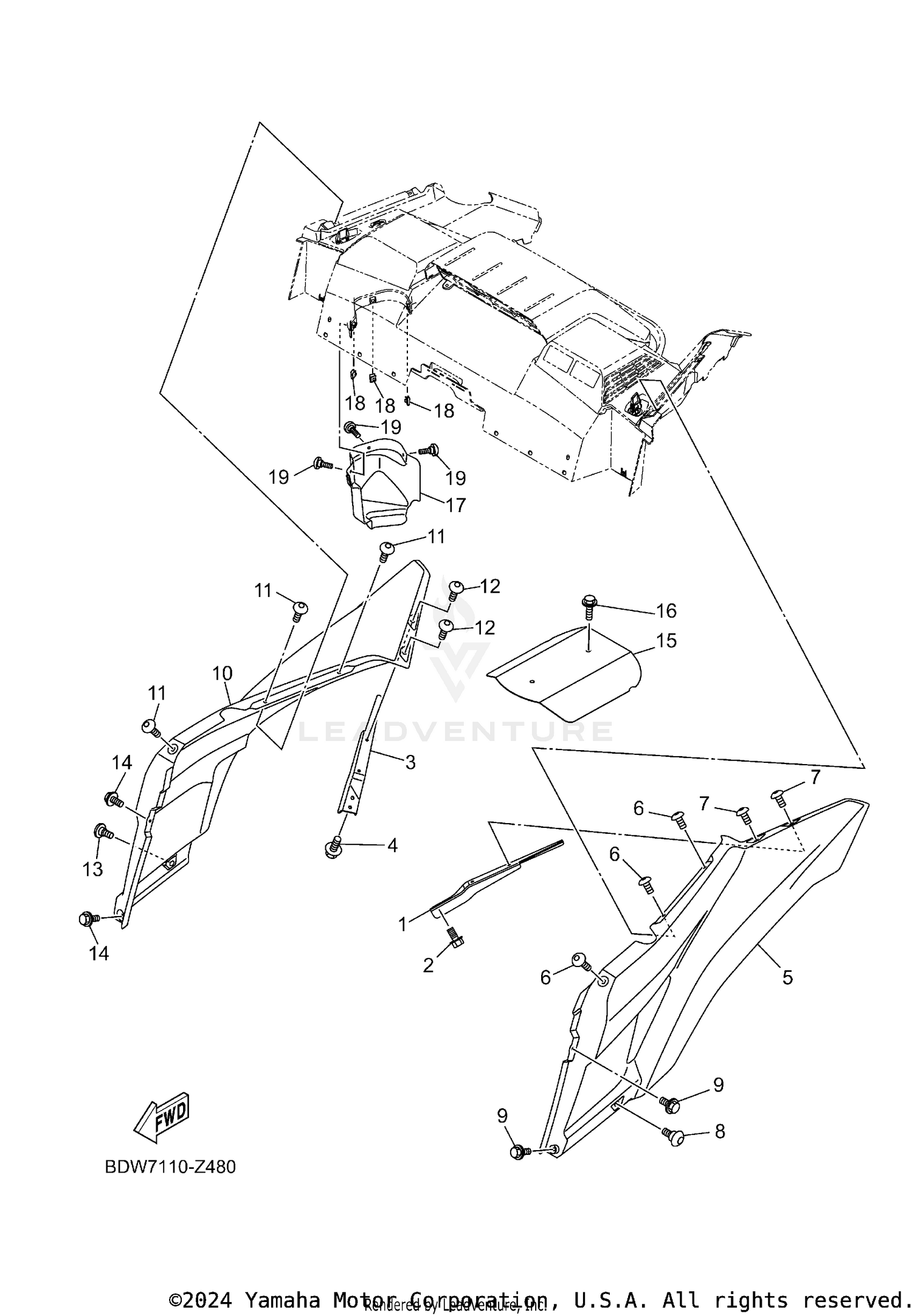

| Ref | Part Number | Description |
|---|
| 1 |
BDW-F1643-10-00 |
STAY, FENDER 3 Price: $14.49 |
| 2 |
95817-08016-00 |
BOLT,FLANGE (JN5) Price: $5.49 |
| 3 |
BDW-F1644-10-00 |
STAY, FENDER 4 Price: $14.49 |
| 4 |
95817-08016-00 |
BOLT,FLANGE (JN5) Price: $5.49 |
| 5 |
2HC-K8193-30-00 |
PANEL, REAR FENDER Price: $290.99 |
| 6 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 7 |
90111-06180-00 |
BOLT,HEX. SOCKET BUT Price: $2.20 |
| 8 |
90109-06061-00 |
BOLT Price: $12.49 |
| 9 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 10 |
2HC-K8194-30-00 |
PANEL, REAR FENDER Price: $669.99 |
| 11 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 12 |
90111-06180-00 |
BOLT,HEX. SOCKET BUT Price: $2.20 |
| 13 |
90109-06061-00 |
BOLT Price: $12.49 |
| 14 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 15 |
B5H-F2898-00-00 |
INSULATOR, HEAT Price: $11.49 |
| 16 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 17 |
2HC-F842M-01-00 |
COVER 1 Price: $14.49 |
| 18 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
