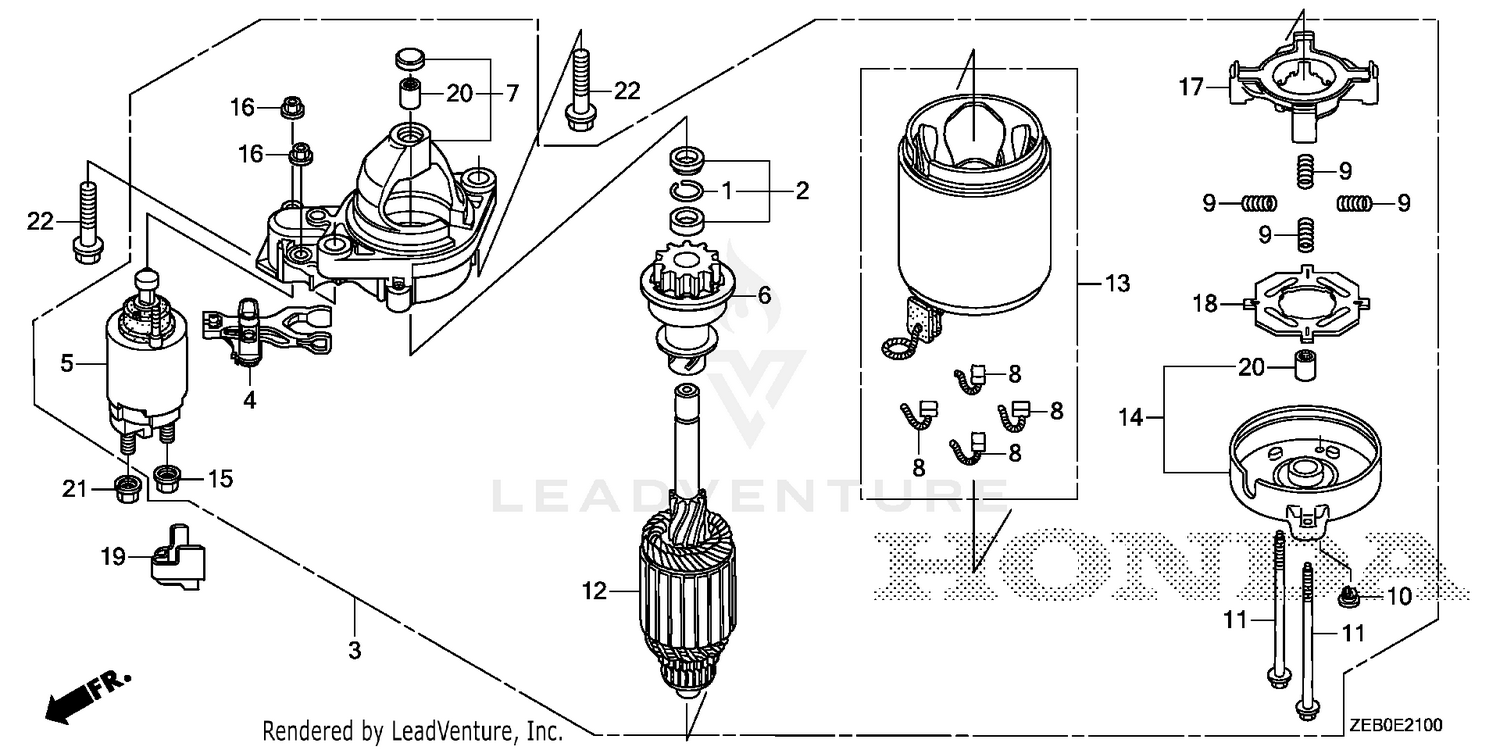

| Ref | Part Number | Description |
|---|
| 1 |
30201-PH9-004 |
RING, SNAP (DENSO) (Honda Code 3508322). Price: $3.64 |
| 2 |
30202-PZ1-003 |
SEE PART DETAILS - PRI; COLLAR SET, CLUTCH STOP Price: $22.22 |
| 3 |
31200-Z6M-003 |
STARTER MOTOR ASSY. Price: $387.48 |
| 4 |
31203-PH9-004 |
LEVER, PINION DRIVE (Honda Code 4840831). Price: $43.20 |
| 5 |
31204-Z6M-003 |
SWITCH ASSY., MAGNET Price: $193.06 |
| 6 |
31207-Z6M-003 |
CLUTCH, OVERRUNNING Price: $124.18 |
| 7 |
31208-Z6M-003 |
HOUSING, DRIVE SIDE Price: $114.28 |
| 8 |
31211-PH9-004 |
BRUSH (Honda Code 3620366). Price: $21.06 |
| 9 |
31212-PH9-004 |
SPRING, BRUSH (Honda Code 3508439). Price: $7.70 |
| 10 |
31213-P64-N01 |
COVER Price: $11.80 |
| 11 |
31214-PH9-004 |
BOLT, THROUGH (Honda Code 3508454). Price: $11.42 |
| 12 |
31217-Z0A-003 |
ARMATURE Price: $140.37 |
| 13 |
31218-P64-N01 |
SEE PART DETAILS - PRI; YOKE Price: $331.40 |
| 14 |
31219-Z6M-003 |
FRAME, COMMUTATOR END Price: $59.18 |
| 15 |
31220-PH9-004 |
NUT, HEX. (8MM) (Honda Code 3508470). Price: $4.50 |
| 16 |
31223-PA0-006 |
NUT, FLANGE (5MM) (Honda Code 0839688). Price: $4.72 |
| 17 |
31231-PH9-004 |
HOLDER, BRUSH (Honda Code 3508496). Price: $62.84 |
| 18 |
31233-PH9-004 |
INSULATOR, BRUSH HOLDER (Honda Code 3508504). Price: $38.62 |
| 19 |
31234-Z6L-000 |
COVER, TERMINAL Price: $4.90 |
| 20 |
91002-ZG4-801 |
BEARING A (Honda Code 3509684). Price: $10.50 |
| 21 |
94070-08080 |
NUT-WASHER (8MM) Price: $1.82 |
