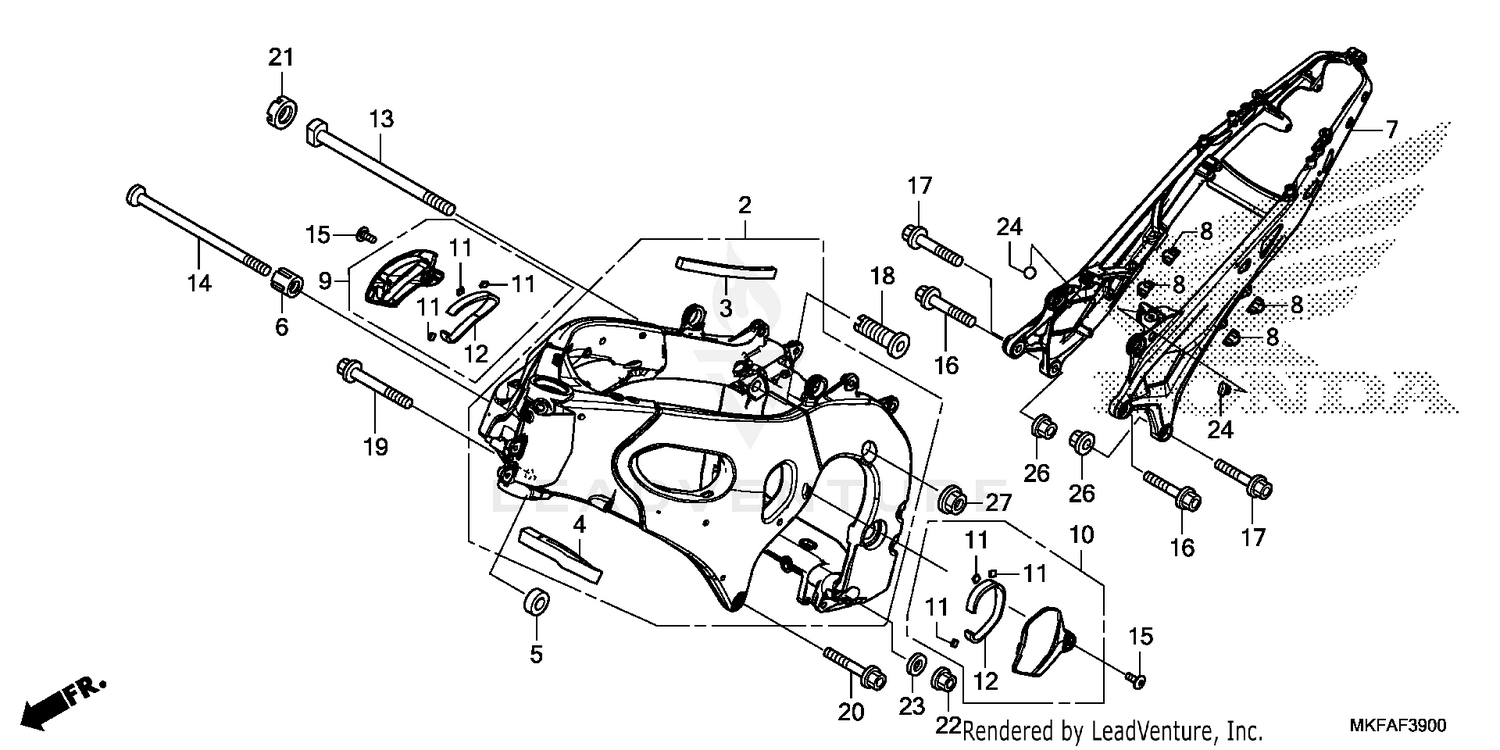

| Ref | Part Number | Description |
|---|
| 2 |
50010-MKF-A20ZA |
FRAME SET *NH461M* (TEMPLE BLACK METALLIC) Price: $3,018.51 |
| 3 |
50132-MFJ-J00 |
MAT A, PIVOT BRACKET Price: $2.73 |
| 4 |
50133-MFJ-J00 |
MAT B, PIVOT BRACKET Price: $2.69 |
| 5 |
50193-MKF-D40 |
COLLAR A, ENGINE HANGER Price: $8.76 |
| 6 |
50194-MFL-000 |
COLLAR C, ENGINE HANGER Price: $23.65 |
| 7 |
50200-MKF-D41ZA |
RAIL ASSY., SEAT *NH461M* (TEMPLE BLACK METALLIC) Price: $935.65 |
| 9 |
83215-MKF-D40 |
COVER, R. FRAME SIDE Price: $25.29 |
| 10 |
83265-MKF-D40 |
COVER, L. FRAME SIDE Price: $25.29 |
| 11 |
83266-MKF-D40 |
RUBBER, PROTECTOR Price: $2.24 |
| 12 |
83640-MGE-700 |
URETHANE, R. HEAT GUARD Price: $2.15 |
| 13 |
90101-MFL-000 |
BOLT, SPECIAL (12X261.5) Price: $18.20 |
| 14 |
90102-MFL-000 |
BOLT, SPECIAL (12X269.5) Price: $25.02 |
| 15 |
90108-MKF-D40 |
SCREW, SPECIAL (6MM) Price: $3.67 |
| 16 |
90109-MFL-000 |
BOLT, FLANGE (10X29) Price: $8.98 |
| 17 |
90110-MFL-000 |
BOLT, FLANGE (10X33.5) Price: $8.98 |
| 18 |
90152-MFL-000 |
BOLT, ADJUSTING (20X1.0X49.5) Price: $17.24 |
| 19 |
90163-MFL-D20 |
BOLT, FLANGE (12X50) Price: $5.58 |
| 20 |
90164-MFL-D20 |
BOLT, FLANGE (12X45) Price: $5.58 |
| 21 |
90303-MFJ-D00 |
NUT, LOCK (20MM) (P=1.0) Price: $9.09 |
| 22 |
90371-MFL-000 |
NUT, FLANGE (12MM) Price: $1.98 |
| 23 |
90439-SB2-010 |
WASHER, SPECIAL (24X12X2.3) Price: $15.20 |
| 24 |
90572-KV3-300 |
RUBBER, SEPARATOR MOUNTING Price: $4.62 |
| 26 |
94050-10000 |
NUT, FLANGE (10MM) Price: $1.62 |
