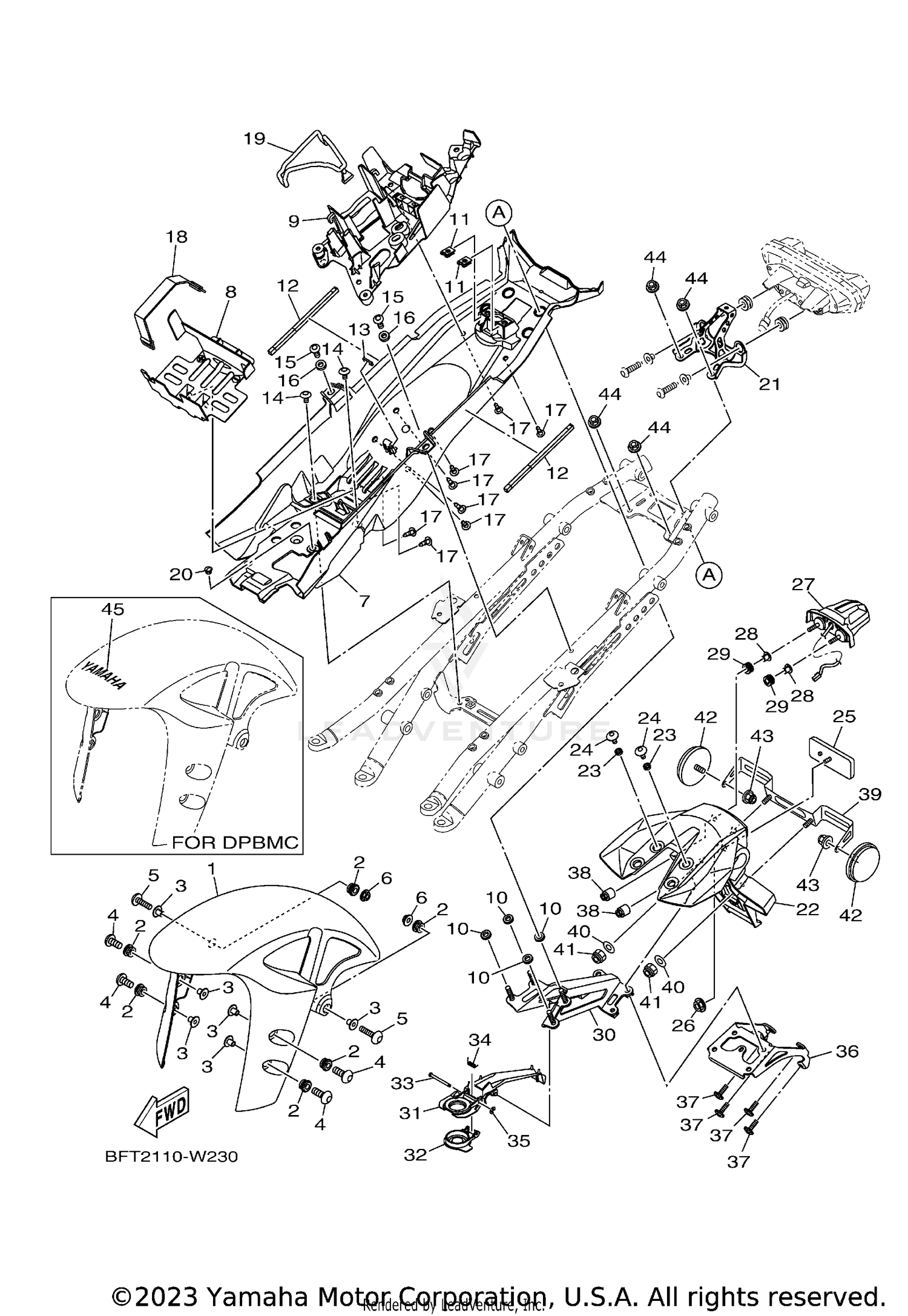

| Ref | Part Number | Description |
|---|
| 2 |
90480-12072-00 |
GROMMET Price: $9.49 |
| 3 |
90387-06159-00 |
COLLAR This part replaces 90387-065J6-00. Price: $9.49 |
| 4 |
90111-06043-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $5.49 |
| 5 |
90111-06030-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.75 |
| 6 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 7 |
B67-8212B-00-00 |
BOX, BATTERY 1 Price: $93.99 |
| 8 |
B67-8212C-00-00 |
BOX, BATTERY 2 Price: $19.49 |
| 9 |
B67-2162G-01-00 |
PLATE 1 This part replaces B67-2162G-00-00. Price: $24.99 |
| 10 |
90560-08326-00 |
SPACER Price: $5.49 |
| 11 |
90183-06069-00 |
NUT, SPRING Price: $7.49 |
| 12 |
1B7-2834E-00-00 |
DAMPER 3 Price: $3.85 |
| 13 |
90520-01001-00 |
DAMPER, PLATE Price: $9.49 |
| 14 |
90109-06201-00 |
BOLT Price: $6.49 |
| 15 |
90269-07077-00 |
RIVET Price: $9.49 |
| 16 |
90202-07015-00 |
WASHER, PLATE (122-21725-00) Price: $9.49 |
| 17 |
90269-06008-00 |
RIVET Price: $9.49 |
| 18 |
133-82131-00-00 |
BAND, BATTERY Price: $30.99 |
| 19 |
3YX-21376-00-00 |
BAND, TOOL Price: $17.49 |
| 20 |
90338-07043-00 |
PLUG Price: $9.49 |
| 21 |
B67-2117E-00-00 |
BRACKET, TAILLIGHT Price: $57.99 |
| 22 |
1RC-21629-01-00 |
GUARD, MUD Price: $41.99 |
| 23 |
90387-06106-00 |
COLLAR This part replaces 90387-06372-00. Price: $8.49 |
| 24 |
90111-06061-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 25 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
| 26 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 27 |
B67-84745-00-00 |
LICENSE LIGHT UNIT ASSY Price: $257.99 |
| 28 |
90387-05042-00 |
COLLAR Price: $6.49 |
| 29 |
90480-11009-00 |
GROMMET Price: $1.20 |
| 30 |
B67-2164F-00-00 |
STAY 1 Price: $51.99 |
| 31 |
B67-2163E-01-00 |
COVER, REAR FENDER This part replaces B67-2163E-00-00. Price: $7.99 |
| 32 |
1RC-2465B-01-00 |
CAP, ROTOR This part replaces 1RC-2465B-00-00. Price: $4.55 |
| 33 |
90249-03002-00 |
PIN Price: $5.49 |
| 34 |
90508-09007-00 |
SPRING, TORSION Price: $2.75 |
| 35 |
93430-02001-00 |
CIRCLIP, E-TYPE Price: $9.49 |
| 36 |
1RC-21682-00-00 |
STAY, PLATE Price: $38.99 |
| 37 |
90160-05012-00 |
SCREW, ROUND TAPPING Price: $8.49 |
| 38 |
1RC-2622H-00-00 |
WEIGHT Price: $7.49 |
| 39 |
1RC-84751-00-00 |
BRACKET, LICENSE Price: $36.99 |
| 40 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 41 |
95617-06100-00 |
NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 42 |
449-85131-02-00 |
REFLECTOR, REAR 1 Price: $33.99 |
| 43 |
95707-05500-00 |
NUT, FLANGE Price: $9.49 |
| 44 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
