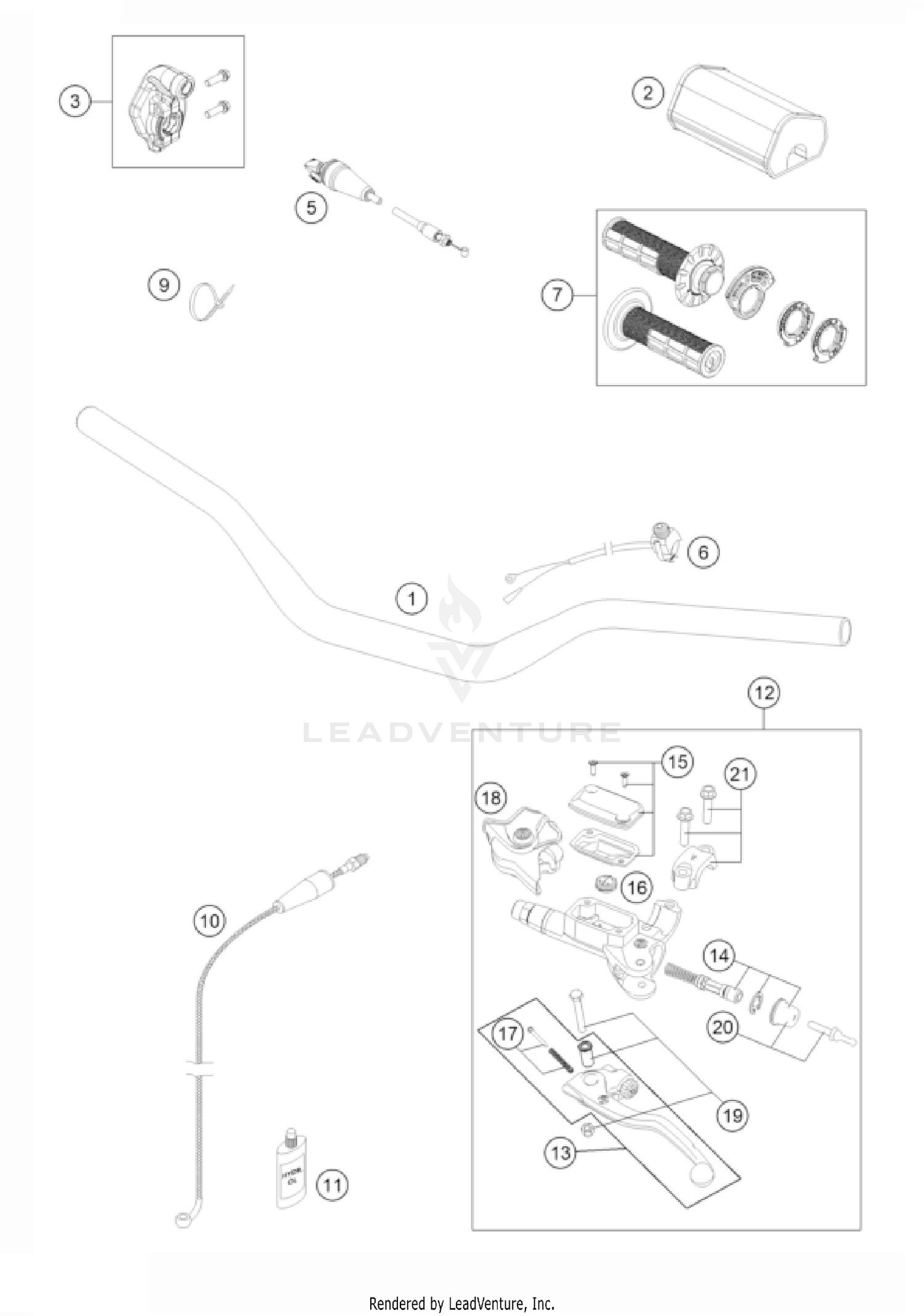

HANDLEBAR, CONTROLS
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2510200100030 | Handlebar D=28mm Price: $146.29 |
| 2 | 25102002144 | Handlebar pad cmpl. Price: $58.29 |
| 3 | 51702010044 | Housing throttle twist grip cpl. Price: $41.46 |
| 5 | 51702091000 | Throttle cable cmpl. 2 stroke Price: $104.38 |
| 6 | 50311089200 | SHORT CIRCUIT BUTTON 02 Price: $44.21 |
| 7 | 79002021200 | Grip set This part replaces 79002021100. Price: $36.99 |
| 9 | 44011076200 | CABLE TIE 200/3,6MM BLACK Price: $1.99 |
| 10 | 79232063000 | CLUTCH PIPE Price: $132.21 |
| 11 | 00062030000 | BRAKE FLUID DOT5.1 0,25L Price: $13.99 |
| 12 | 79202030044 | MASTER CYLINDER CPL. Price: $315.36 |
| 13 | 54802031000 | CLUTCH LEVER CPL. BREMBO 06 Price: $45.99 |
| 14 | 79202032044 | REP. KIT PISTON 9MM Price: $71.05 |
| 15 | 5480200310030 | COVER HYD. CLUTCH CPL. 2014 Price: $43.88 |
| 16 | 54802051000 | VALVE Price: $22.54 |
| 17 | 54802052000 | BOLT KPL. Price: $22.99 |
| 18 | 54802037000 | PROTECTION CAP 06 Price: $24.63 |
| 19 | 54802038100 | LEVER SCREW CPL. 06 Price: $29.99 |
| 20 | 54802046000 | PUSH ROD CPL. Price: $16.99 |
