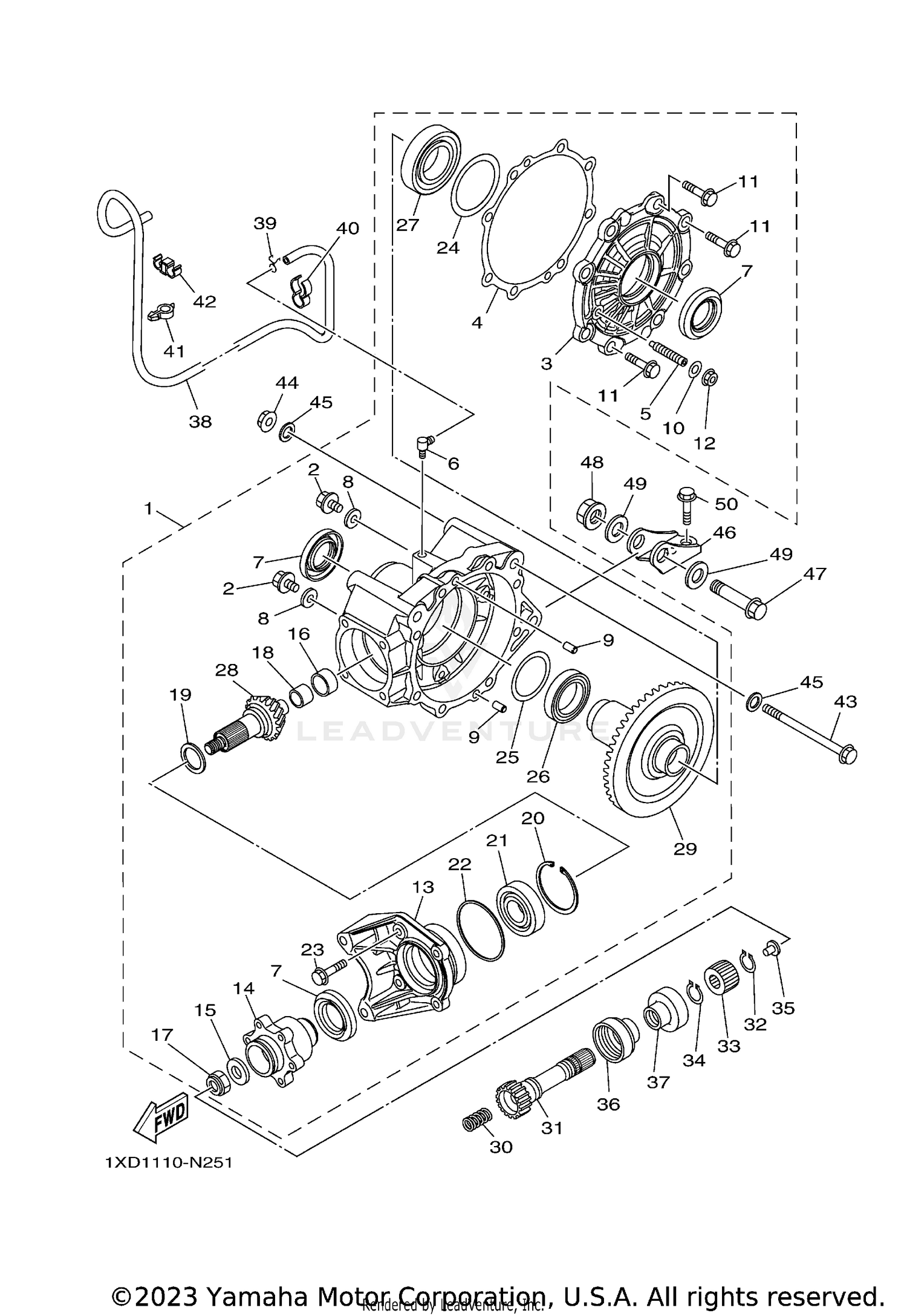

| Ref | Part Number | Description |
|---|
| 1 |
1XD-G6101-12-00 |
RR AXL GR CASE ASY Price: $605.99 |
| 2 |
1XD-E2228-00-00 |
BOLT Price: $5.49 |
| 3 |
1XD-G6152-00-00 |
HOUSING, BEARING Price: $117.99 |
| 4 |
1XD-G631A-00-00 |
GSKT., CASE Price: $14.49 |
| 5 |
1CT-G6156-00-00 |
STOPPER, RING GEAR Price: $13.49 |
| 6 |
1CT-E5371-00-00 |
BREATHER Price: $3.90 |
| 7 |
1XD-E511B-00-00 |
OIL SEAL Price: $9.99 |
| 8 |
1CT-E1195-00-00 |
GASKET Price: $6.99 |
| 9 |
1CT-E3362-00-00 |
PIN, DOWEL 1 Price: $3.95 |
| 10 |
1CT-G6819-00-00 |
GASKET Price: $4.95 |
| 11 |
1XD-E2157-10-00 |
BOLT Price: $10.99 |
| 12 |
1CT-E3275-00-00 |
NUT, ADJUSTING Price: $1.40 |
| 13 |
1XD-G2134-00-00 |
COVER Price: $108.99 |
| 14 |
1XD-G6126-00-00 |
COUPLING Price: $191.99 |
| 15 |
1CT-E1557-00-00 |
WASHER 1 Price: $23.99 |
| 16 |
1XD-E1428-00-00 |
BEARING 1 Price: $22.99 |
| 17 |
1CT-E6377-00-00 |
NUT, LOCK Price: $5.49 |
| 18 |
1XD-G5319-00-00 |
CLIP Price: $41.99 |
| 19 |
1XD-G7531-00-00 |
WHEEL, SPROCKET 1 Price: $64.99 |
| 20 |
1XD-E1486-00-00 |
CLIP Price: $8.49 |
| 21 |
93306-30574-00 |
BEARING Price: $79.99 |
| 22 |
1XD-E1614-00-00 |
OIL RING, PISTON Price: $3.85 |
| 23 |
1XD-G2478-00-00 |
BOLT, LOCK PLATE Price: $2.50 |
| 24 |
1XD-G5567-00-00 |
SHIM Price: $21.99 |
| 25 |
1XD-G5577-00-00 |
SHIM Price: $21.99 |
| 26 |
1XD-E7051-00-00 |
BEARING This part replaces 1XD-E142B-00-00. Price: $34.99 |
| 27 |
1XD-E1429-00-00 |
BEARING 2 Price: $55.99 |
| 28 |
1XD-G6121-00-00 |
GEAR, DRIVE PINION Price: $267.99 |
| 29 |
1XD-G6110-00-00 |
RING GEAR COMP. Price: $367.99 |
| 30 |
90501-20361-00 |
SPRING, COMPRESSION Price: $14.49 |
| 31 |
1XD-G6172-00-00 |
SHAFT, DRIVE Price: $45.99 |
| 32 |
99009-19400-00 |
CIRCLIP Price: $9.49 |
| 33 |
5KM-46126-00-00 |
COUPLING Price: $71.99 |
| 34 |
93410-22039-00 |
CIRCLIP Price: $9.49 |
| 35 |
5KM-46559-00-00 |
DAMPER Price: $8.49 |
| 36 |
5KM-46137-00-00 |
SEAL 2 Price: $17.99 |
| 37 |
5KM-46136-00-00 |
SEAL 1 Price: $9.49 |
| 38 |
90445-07032-00 |
HOSE (L1920) Price: $20.10 |
| 39 |
90467-07029-00 |
CLIP Price: $2.60 |
| 40 |
90464-15065-00 |
CLAMP Price: $8.49 |
| 41 |
90464-12830-00 |
CLAMP This part replaces 90464-10833-00. Price: $1.60 |
| 42 |
90464-09013-00 |
CLAMP Price: $4.15 |
| 43 |
95812-12130-00 |
BOLT, FLANGE Price: $10.49 |
| 44 |
90185-12002-00 |
NUT, SELF-LOCKING Price: $13.49 |
| 45 |
92990-12200-00 |
WASHER, PLAIN This part replaces 92902-12200-00. Price: $9.49 |
| 46 |
1XD-F1981-00-00 |
BRKT., RR. AXLE Price: $4.25 |
| 47 |
90105-12082-00 |
BOLT, FLANGE Price: $11.49 |
| 48 |
90185-12002-00 |
NUT, SELF-LOCKING Price: $13.49 |
| 49 |
92990-12200-00 |
WASHER, PLAIN This part replaces 92902-12200-00. Price: $9.49 |
