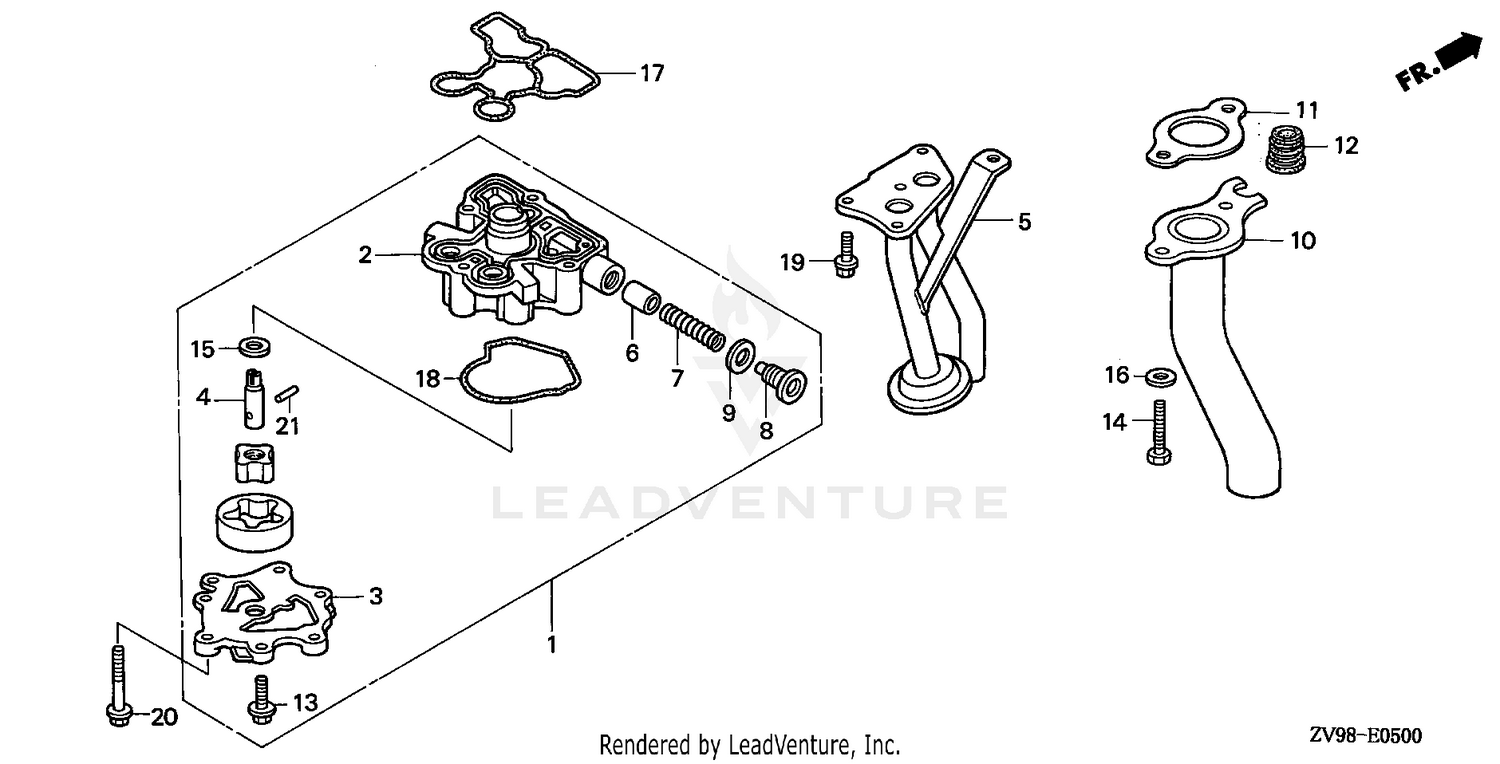

| Ref | Part Number | Description |
|---|
| 1 |
15100-ZV7-000 |
PUMP ASSY., OIL Price: $201.24 |
| 2 |
15111-ZV7-000 |
BODY, OIL PUMP Price: $140.58 |
| 3 |
15121-ZV7-000 |
COVER, OIL PUMP Price: $41.88 |
| 4 |
15136-ZV7-000 |
SHAFT, OIL PUMP Price: $15.56 |
| 5 |
15220-ZV7-000 |
STRAINER, OIL Price: $87.32 |
| 6 |
15231-413-020 |
VALVE, RELIEF (Honda Code 0690453). Price: $28.12 |
| 7 |
15232-KT8-000 |
SPRING, RELIEF VALVE Price: $5.18 |
| 8 |
15236-ZV5-010 |
SEE PART DETAILS - PRI; BOLT, SEALING (14MM) Price: $6.76 |
| 9 |
15302-PE0-300 |
WASHER, SEALING (14MM) (Honda Code 1600014). Price: $8.46 |
| 10 |
18330-ZV7-010 |
PIPE, EX. Price: $103.80 |
| 11 |
18333-ZV7-000 |
GASKET, EX. PIPE Price: $7.38 |
| 12 |
19252-ZV5-000 |
GROMMET, WATER TUBE Price: $8.54 |
| 14 |
90115-ZV5-000 |
BOLT, HEX. (8X25) Price: $5.24 |
| 15 |
90456-333-000 |
WASHER, THRUST (11MM) Price: $3.34 |
| 16 |
90507-ZV4-000 |
WASHER, PLAIN (8MM) Use up to Frame SN 4800712. Price: $3.02 |
| 17 |
91301-ZV7-010 |
SEE PART DETAILS - PRI; O-RING, PUMP COVER This part replaces 91301-ZV7-000. Price: $8.32 |
| 18 |
91302-ZV7-000 |
O-RING, PUMP COVER Price: $5.94 |
| 19 |
95701-06016-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820. Price: $2.04 |
