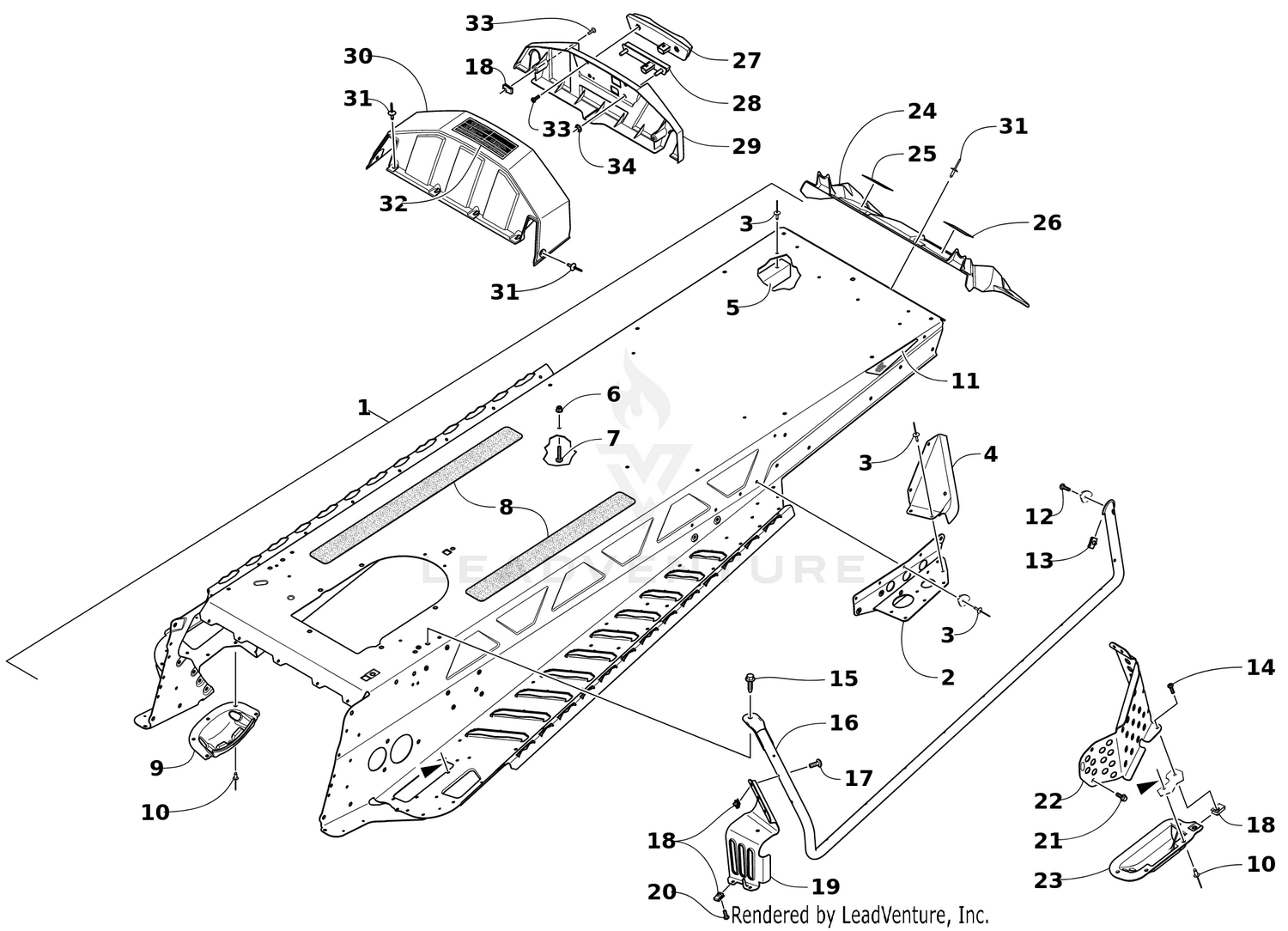

TUNNEL AND SNOWFLAP ASSEMBLY [106158]

Parts (38)

Ref	Part Number	Description
0	2707-757	Chassis Assembly Price: $2,673.95
2	2707-066	Bracket, Mounting - Suspension - Right - Black Price: $65.83
2	2707-067	Bracket, Mounting - Suspension - Left - Black Price: $65.83
3	8060-686	Rivet - Zinc Price: $0.46
4	1607-386	Close-Off, Running Board - Right Price: $35.95
4	1607-387	Close-Off, Running Board - Left Price: $35.95
5	1607-460	Protector, Tunnel Price: $71.95
6	8427-602	Nut, Hex Price: $0.23
7	1423-221	SCREW, M6X1.0 DOG-POINT Price: $1.45
8	6606-982	Pad, Fuel Tank - Right Price: $7.23
8	6606-983	Pad, Fuel Tank - Left Price: $7.23
9	1607-109	Protector, Chain Case Price: $5.90
10	8061-708	Rivet Price: $1.08
11	2621-932	Decal, Reflector - Right Price: $1.51
11	2621-933	Decal, Reflector - Left Price: $1.51
12	2623-059	Screw, Machine Price: $2.17
13	0423-577	Clip, U-Nut Price: $0.46
14	8470-520	Screw, Machine Price: $0.48
15	2623-060	Screw, Cap Price: $2.42
16	2707-070	Roll, Tunnel - Right Price: $200.95
16	2707-071	Roll, Tunnel - Left Price: $200.95
17	8468-535	Screw, Machine Price: $1.07
18	1623-637	Clip, U-Nut Price: $2.61
19	0607-996	Footrest - Right Price: $28.95
19	0607-997	Footrest - Left Price: $28.95
20	8470-516	Screw, Machine Price: $0.35
21	8408-613	Screw, Cap Price: $1.66
22	1607-346	Shield, Brake Disc Price: $52.95
23	0607-351	Protector, Brake Disc Price: $13.28
25	5611-853	Decal, Warning - Towing (English) Price: $2.81
26	5611-852	Decal, Warning - Towing (French) Price: $2.54
27	0609-898	Taillight, LED Price: $70.95
28	0609-941	Light, Reverse Price: $48.95
29	6606-889	Close-Off, Tunnel - Inner Price: $31.95
30	6606-792	Close-Off, Tunnel Price: $45.95
31	8061-706	Rivet Price: $1.07
32	2621-926	Decal, Capacity Price: $5.34
33	8477-516	Screw, Machine Price: $0.71
