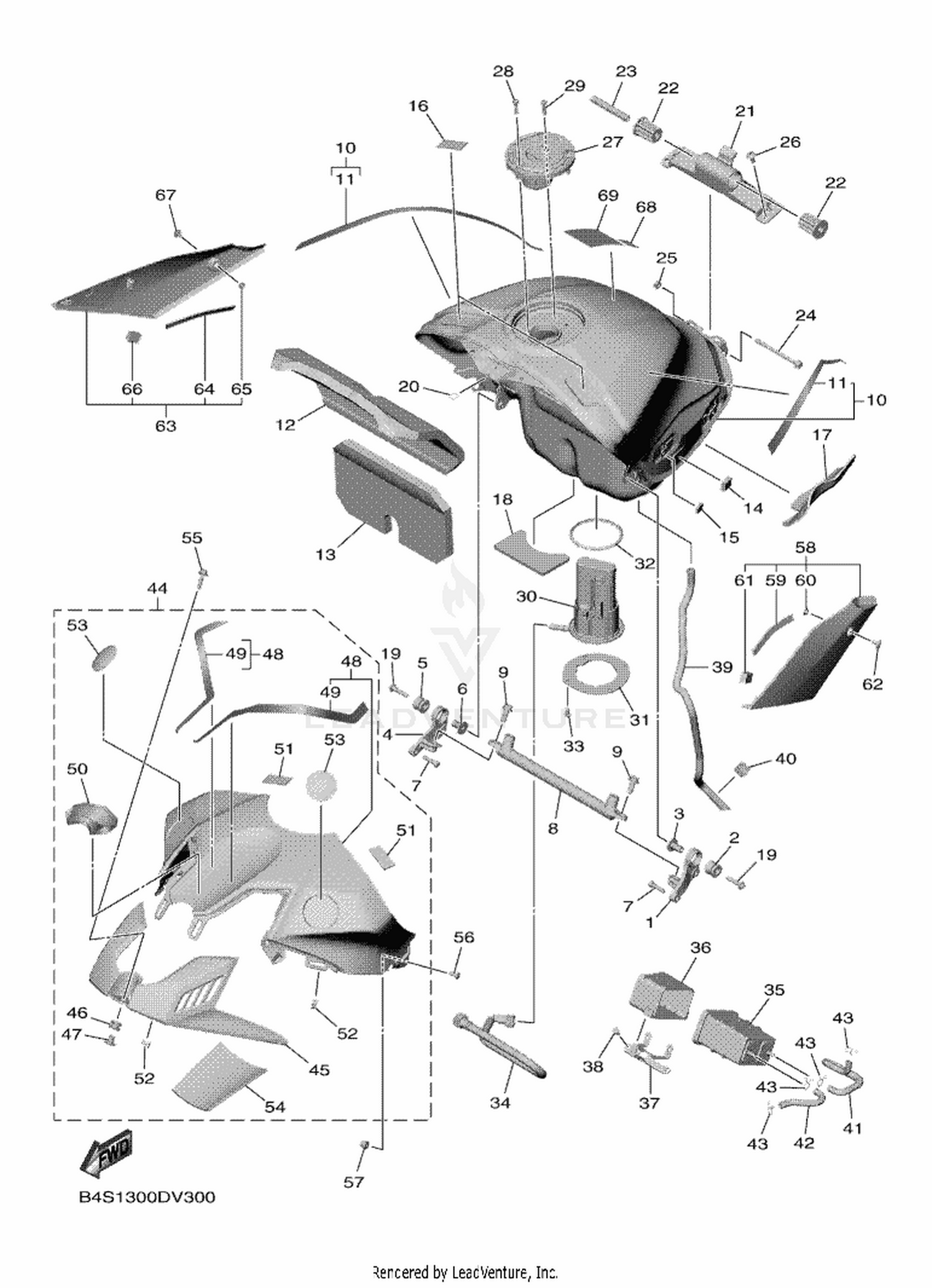

| Ref | Part Number | Description |
|---|
| 1 |
2CR-24191-00 |
BRACKET, FUEL TANK 1 Price: Call Us |
| 3 |
90387-06091 |
COLLAR Price: Call Us |
| 4 |
2CR-24192-00 |
BRACKET, FUEL TANK 2 Price: Call Us |
| 6 |
90387-06091 |
COLLAR Price: Call Us |
| 7 |
91312-06025 |
BOLT Price: Call Us |
| 8 |
B3L-2142V-00 |
CROSS BAR Price: Call Us |
| 9 |
90110-08097 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 12 |
2CR-2414H-00 |
DAMPER, PLATE 1 Price: Call Us |
| 13 |
2CR-2414J-00 |
DAMPER, PLATE 2 Price: Call Us |
| 14 |
4D9-24741-00 |
PAD, SEAT Price: Call Us |
| 15 |
5PW-2411J-01 |
DAMPER, SIDE COVER Price: Call Us |
| 16 |
2PP-2411G-00 |
HOOK, SIDE COVER 1 Price: Call Us |
| 17 |
B3L-24141-00 |
PROTECTOR, FUEL TANK Price: Call Us |
| 18 |
B3L-2414G-00 |
SEAL Price: Call Us |
| 19 |
90110-06346 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 20 |
90183-05M02 |
NUT, SPRING Price: Call Us |
| 21 |
B3L-2413Y-00 |
BRACKET, TANK FITTING Price: Call Us |
| 22 |
5SL-24183-00 |
DAMPER, LOCATING 3 Price: Call Us |
| 23 |
90387-06055 |
COLLAR Price: Call Us |
| 24 |
95812-06090 |
BOLT, FLANGE Price: Call Us |
| 25 |
95702-06500 |
NUT, WITH WASHER Price: Call Us |
| 26 |
90111-06071 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 27 |
2CR-24602-00 |
CAP ASSY Price: Call Us |
| 28 |
90110-05112 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 29 |
91312-05010 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 30 |
2CR-13907-01 |
FUEL PUMP COMP. Price: Call Us |
| 31 |
2CR-24491-00 |
BRACKET, FUEL PUMP Price: Call Us |
| 32 |
1RC-24486-00 |
O-RING Price: Call Us |
| 33 |
90119-05015 |
BOLT, WITH WASHER Price: Call Us |
| 34 |
B3L-13971-00 |
PIPE, FUEL 1 Price: Call Us |
| 35 |
2CR-24170-00 |
CANISTER ASSY Price: Call Us |
| 36 |
2CR-24182-00 |
DAMPER, LOCATING 2 Price: Call Us |
| 37 |
2CR-2419F-00 |
BRACKET, CANISTOR Price: Call Us |
| 38 |
90149-06084 |
SCREW Price: Call Us |
| 39 |
2CR-24312-00 |
PIPE 2 Price: Call Us |
| 40 |
90480-14032 |
GROMMET Price: Call Us |
| 41 |
B3L-24314-00 |
PIPE 4 Price: Call Us |
| 42 |
B3L-24315-00 |
PIPE 5 Price: Call Us |
| 43 |
90467-090A2 |
CLIP Price: Call Us |
| 46 |
90480-12023 |
GROMMET Price: Call Us |
| 47 |
90387-06203 |
COLLAR Price: Call Us |
| 52 |
90464-04005 |
CLAMP Price: Call Us |
| 53 |
1RC-2413B-01 |
EMBLEM Price: Call Us |
| 55 |
90110-06233 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 56 |
98902-05014 |
SCREW, BIND Price: Call Us |
| 57 |
90179-05523 |
NUT Price: Call Us |
| 59 |
90520-03016 |
DAMPER, PLATE Price: Call Us |
| 60 |
90387-05035 |
COLLAR Price: Call Us |
| 61 |
4D9-24741-00 |
PAD, SEAT Price: Call Us |
| 62 |
90111-05057 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 64 |
90520-03016 |
DAMPER, PLATE Price: Call Us |
| 65 |
90387-05035 |
COLLAR Price: Call Us |
| 66 |
4D9-24741-00 |
PAD, SEAT Price: Call Us |
| 67 |
90111-05057 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 68 |
B88-2817K-10 |
LABEL, FUEL Price: Call Us |
