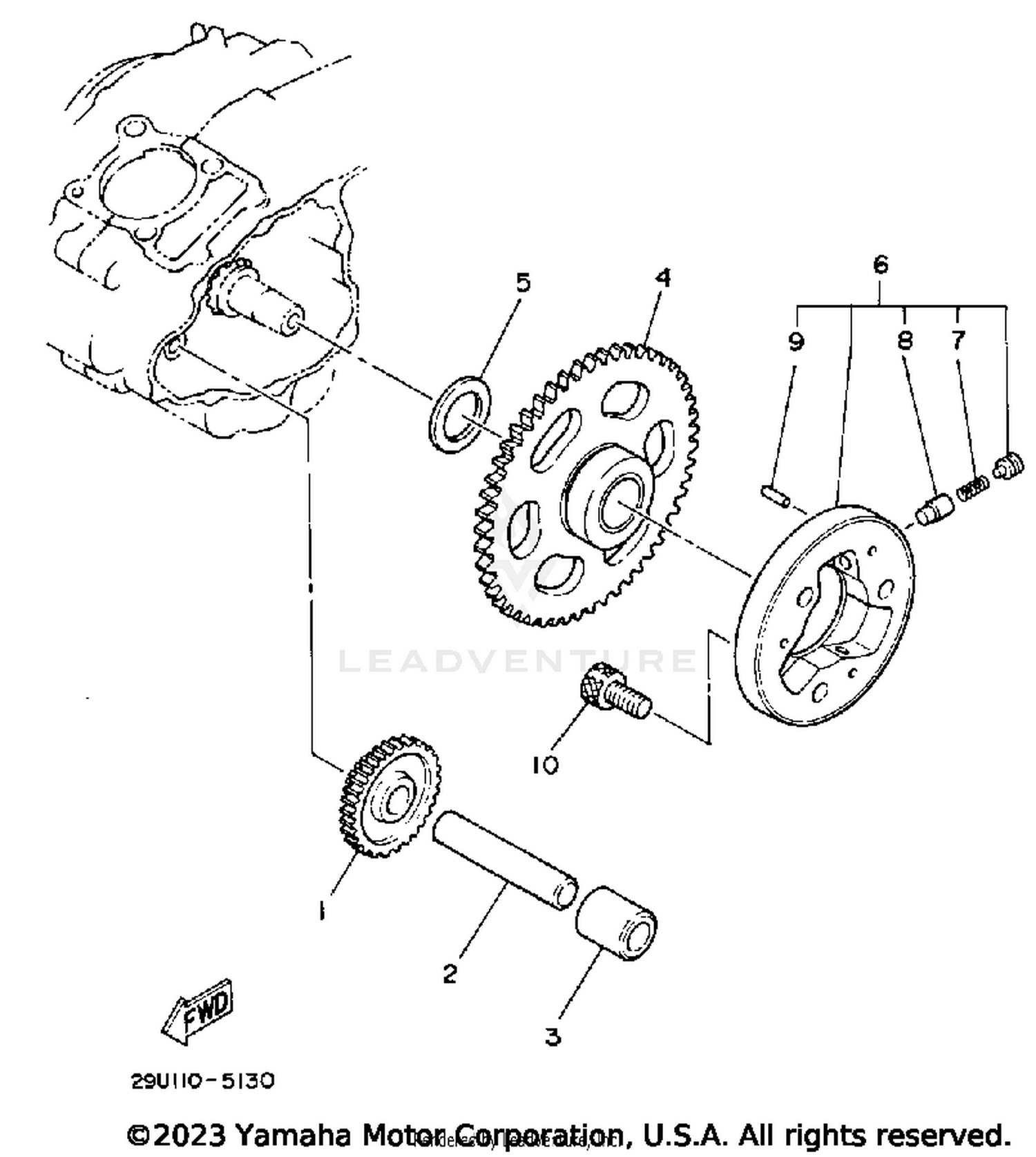

STARTER CLUTCH
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2HT-15512-00-00 | GEAR, IDLER 1 (41T/10T) Price: $100.99 |
| 2 | 24W-15521-00-00 | SHAFT 1 Price: $14.99 |
| 3 | 90387-125H3-00 | COLLAR Price: $5.49 |
| 4 | 5H0-15517-00-00 | GEAR, IDLER 2 (56T) Price: $166.99 |
| 5 | 90201-256K6-00 | WASHER, PLATE (0.9T) Price: $4.75 |
| 6 | 4H7-15580-10-00 | STARTER CLUTCH OUTER ASSY Price: $203.99 |
| 7 | 90501-04596-00 | SPRING, COMPRESSION Price: $10.49 |
| 8 | 1J7-15583-01-00 | CAP, STARTER CLUTCH SPRING This part replaces 341-15583-05-00. Price: $19.99 |
| 9 | 93615-12088-00 | PIN, DOWEL Price: $8.49 |
