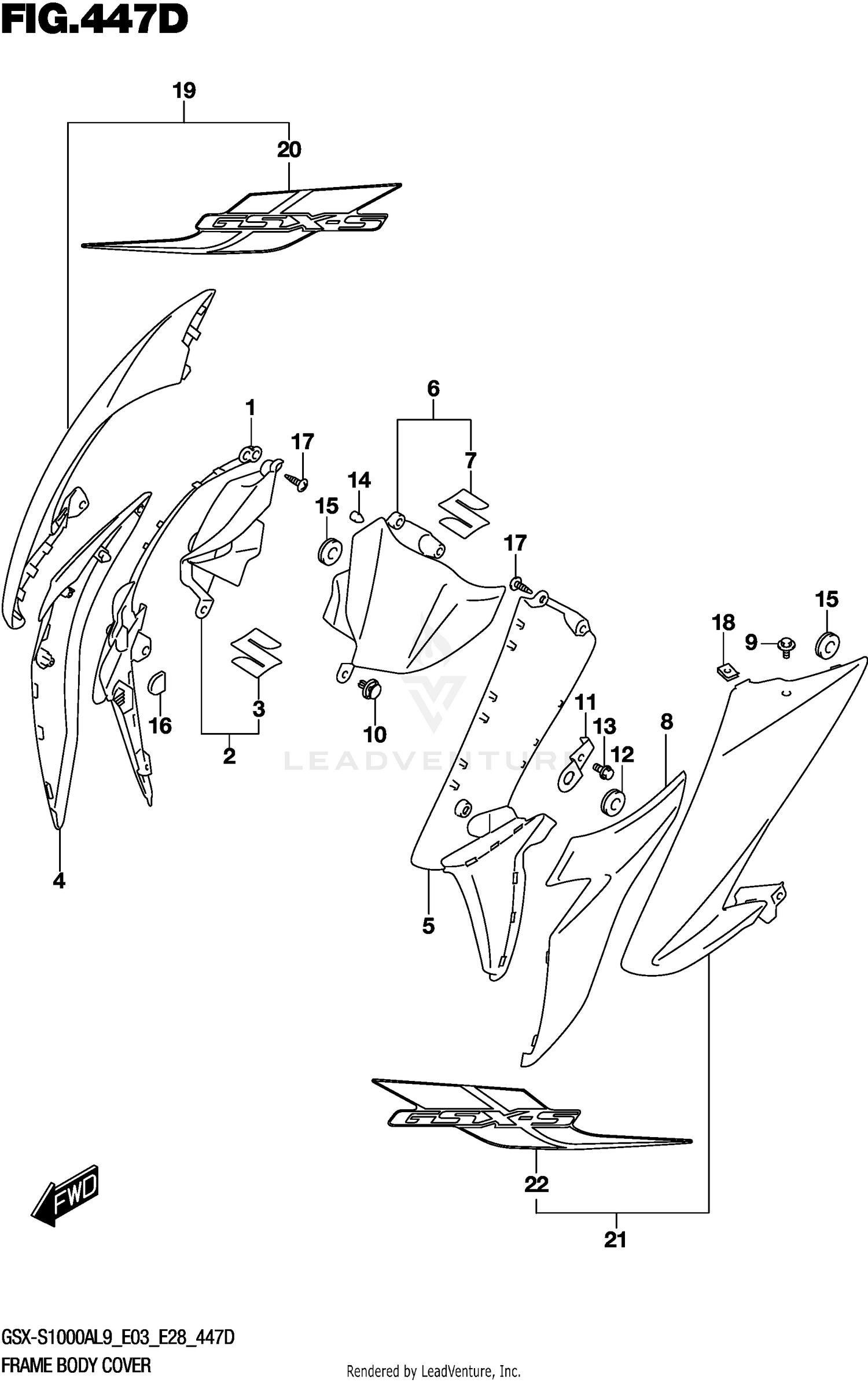

FRAME BODY COVER (GSX-S1000YAL9 E03)
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47531-04K00 | COVER,FRAME BODY INNER RH Price: $26.97 |
| 2 | 47570-04K00 | COVER ASSY,INTAKE RH Price: $53.95 |
| 5 | 47541-04K00 | COVER,FRAME BODY INNER LH Price: $30.39 |
| 6 | 47580-04K00 | COVER ASSY,INTAKE LH Price: $54.98 |
| 9 | 09139-05064 | SCREW (5X13) Price: $3.09 |
| 10 | 94479-35F00 | CLIP Price: $6.94 |
| 11 | 47539-04K00 | BRACKET,FRAME BODY COVER Price: $11.81 |
| 12 | 09320-08018 | CUSHION (8X26X7) Price: $3.70 |
| 13 | 01547-0612B | BOLT Price: $1.48 |
| 14 | 09321-06036 | CUSHION This part replaces 09321-06013. Price: $1.84 |
| 15 | 09320-06504 | CUSHION Price: $6.04 |
| 16 | 09329-18001 | CUSHION Price: $2.30 |
| 17 | 03541-0516A | SCREW Price: $1.65 |
| 18 | 09148-05052 | NUT (M5) Price: $4.10 |
