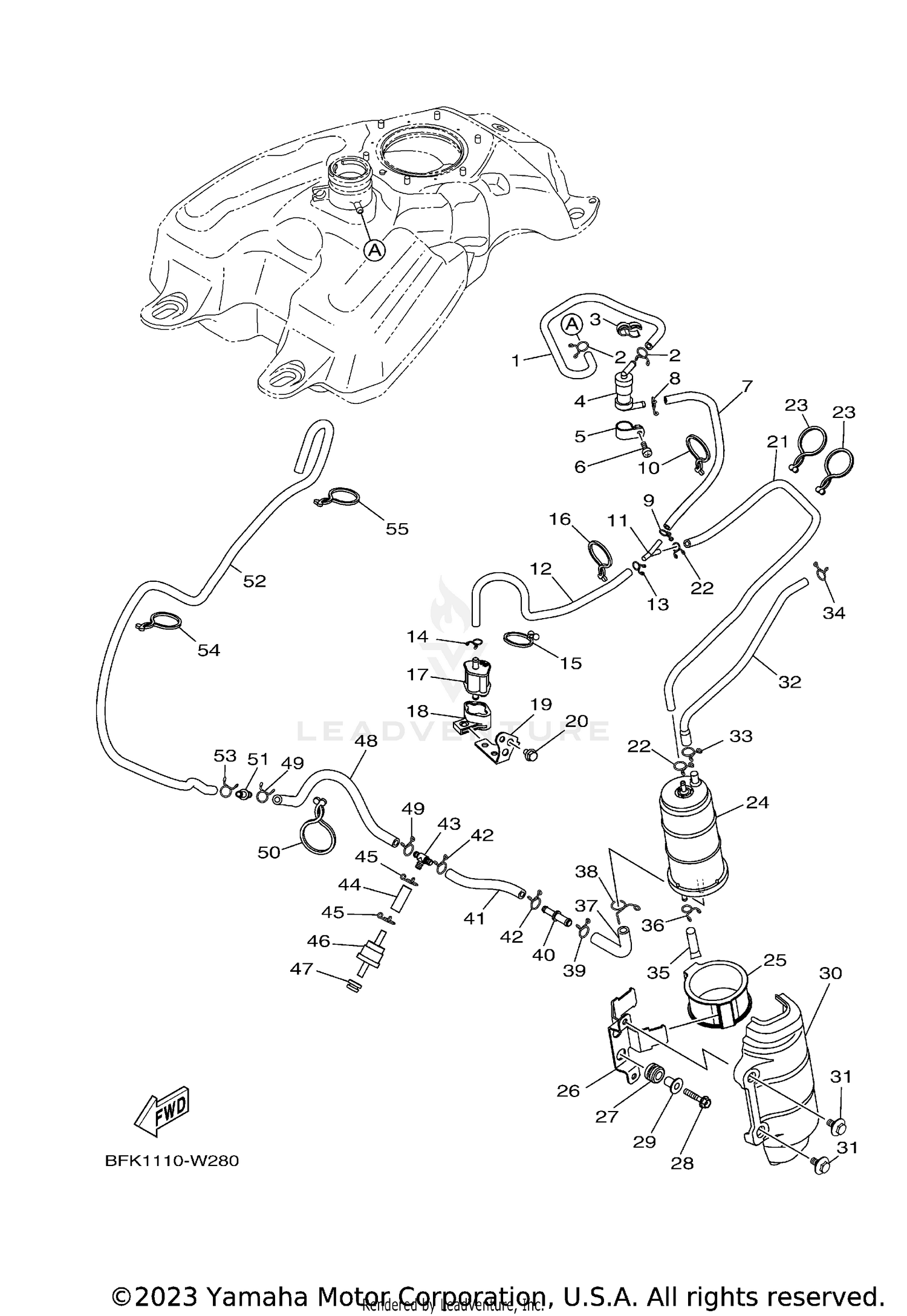

FUEL TANK 2
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BFK-2247A-01-00 | HOSE 1 Price: $28.99 |
| 2 | 90467-090A2-00 | CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 3 | 90464-15065-00 | CLAMP Price: $8.49 |
| 4 | BFK-F4180-00-00 | ROLL OVER VALVE AS Price: $12.49 |
| 5 | 90464-15014-00 | CLAMP Price: $3.65 |
| 6 | 98907-05012-00 | SCREW, BIND Price: $9.49 |
| 7 | 90445-09045-00 | HOSE (L260) Price: $14.49 |
| 8 | 90467-090A2-00 | CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 9 | 90467-08017-00 | CLIP Price: $11.49 |
| 10 | 90464-30040-00 | CLAMP Price: $9.49 |
| 11 | 90413-05013-00 | WAY 3 Price: $5.99 |
| 12 | BFK-2247D-00-00 | HOSE 4 Price: $20.99 |
| 13 | 90467-08017-00 | CLIP Price: $11.49 |
| 14 | 90467-090A2-00 | CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 15 | 90464-25267-00 | CLAMP Price: $8.49 |
| 16 | 90464-30040-00 | CLAMP Price: $9.49 |
| 17 | 3B4-24380-11-00 | PIPE JOINT ASSY Price: $48.99 |
| 18 | 3B4-24398-00-00 | BAND 1 Price: $9.49 |
| 19 | BFK-F832Y-00-00 | BRKT., RELEASE VAL Price: $2.45 |
| 20 | 95812-06010-00 | BOLT, FLANGE This part replaces 95802-06010-00. Price: $3.20 |
| 21 | BFK-2247B-00-00 | HOSE 2 Price: $33.99 |
| 22 | 90467-08017-00 | CLIP Price: $11.49 |
| 23 | 90464-30040-00 | CLAMP Price: $9.49 |
| 24 | BFK-F4170-00-00 | CANISTER ASSY Price: $24.99 |
| 25 | BFK-F483H-01-00 | BAND Price: $6.49 |
| 26 | BFK-F115R-01-00 | BRACKET, CANISTER Price: $11.49 |
| 27 | 90480-14023-00 | GROMMET Price: $8.49 |
| 28 | 95D32-06030-00 | BOLT, FLANGE DEEP Price: $0.35 |
| 29 | 90387-06136-00 | COLLAR Price: $8.49 |
| 30 | BFK-F419E-00-00 | COVER, CANISTER Price: $6.49 |
| 31 | 90109-06086-00 | BOLT Price: $6.49 |
| 32 | BFK-2416A-01-00 | HOSE Price: $23.99 |
| 33 | 90467-100A1-00 | CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 34 | 90467-090A2-00 | CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 35 | BFK-E443E-01-00 | PIPE, DRAIN Price: $1.70 |
| 36 | 90467-08017-00 | CLIP Price: $11.49 |
| 37 | BFK-2247C-00-00 | HOSE 3 Price: $12.49 |
| 38 | 90467-12052-00 | CLIP Price: $10.49 |
| 39 | 90467-110A3-00 | CLIP Price: $8.49 |
| 40 | BFK-14568-00-00 | JOINT Price: $2.60 |
| 41 | 90445-11050-00 | HOSE (L105) Price: $27.99 |
| 42 | 90467-100A1-00 | CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 43 | 90413-06031-00 | WAY 3 Price: $9.49 |
| 44 | 90445-11065-00 | HOSE (L30) Price: $3.65 |
| 45 | 90467-100A1-00 | CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 46 | BG4-24362-00-00 | VALVE, CHECK 1 Price: $45.99 |
| 47 | 90480-10003-00 | GROMMET Price: $9.49 |
| 48 | 90445-11073-00 | HOSE (L310) Price: $24.99 |
| 49 | 90467-100A1-00 | CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 50 | 90464-37257-00 | CLAMP Price: $2.40 |
| 51 | 4XY-14568-00-00 | JOINT Price: $7.49 |
| 52 | BFK-2312F-00-00 | HOSE, BREATHER Price: $18.99 |
| 53 | 90467-090A2-00 | CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 54 | 90464-30040-00 | CLAMP Price: $9.49 |
