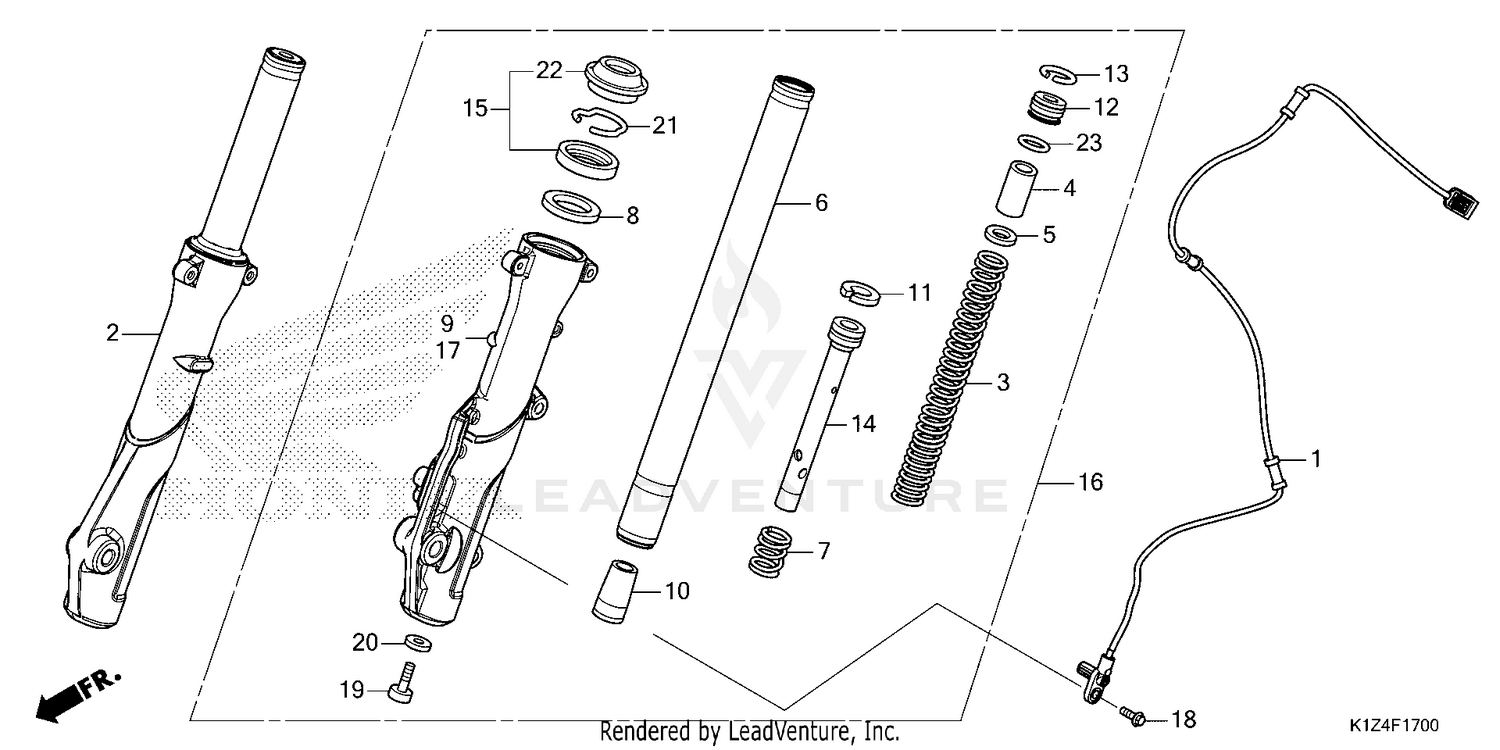

| Ref | Part Number | Description |
|---|
| 1 |
38520-K1Z-J51 |
SENSOR, FR. Price: $15.00 |
| 2 |
51400-K1Y-D51 |
FORK ASSY., FR. R Price: $85.60 |
| 3 |
51401-K1Z-J11 |
SPRING, FR. FORK (SHOWA) Price: $2.50 |
| 4 |
51402-K97-T01 |
COLLAR, SPRING Price: $1.47 |
| 5 |
51403-KW6-961 |
PLATE, SPRING JOINT Price: $1.69 |
| 6 |
51410-K1Z-J11 |
PIPE, FR. FORK (SHOWA) Price: $32.82 |
| 7 |
51412-GC4-003 |
SPRING, FR. FORK REBOUND Price: $7.55 |
| 8 |
51412-KK4-003 |
RING, BACK-UP (SHOWA) Price: $8.29 |
| 9 |
51420-K96-T01 |
CASE COMP, FR. R Price: $34.78 |
| 10 |
51432-K1N-V01 |
PIECE, OIL LOCK Price: $1.46 |
| 11 |
51437-GS3-003 |
RING, PISTON Price: $9.80 |
| 12 |
51454-K1N-V01 |
SEAT, SPRING (UPPER) Price: $2.08 |
| 13 |
51456-355-003 |
RING, STOPPER (SHOWA) Price: $8.09 |
| 14 |
51470-K1Z-J11 |
PIPE, SEAT (SHOWA) Price: $4.00 |
| 15 |
51490-KRM-852 |
SEAL SET, FR. FORK (SHOWA) Price: $25.49 |
| 16 |
51500-K1Y-D51 |
FORK ASSY., FR. L Price: $87.89 |
| 17 |
51520-K1Y-D51 |
CASE COMP, FR. L Price: $42.14 |
| 18 |
90105-K77-V10 |
BOLT, FLANGE (6X18) Price: $0.75 |
| 19 |
90116-383-721 |
BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA) Price: $6.44 |
| 20 |
90544-283-000 |
WASHER, SPECIAL (8MM) (SHOWA) Price: $3.27 |
| 21 |
90601-354-000 |
RING, OIL SEAL STOP (SHOWA) Price: $6.44 |
| 22 |
91254-GAA-003 |
DUST SEAL (SHOWA) Price: $20.60 |
