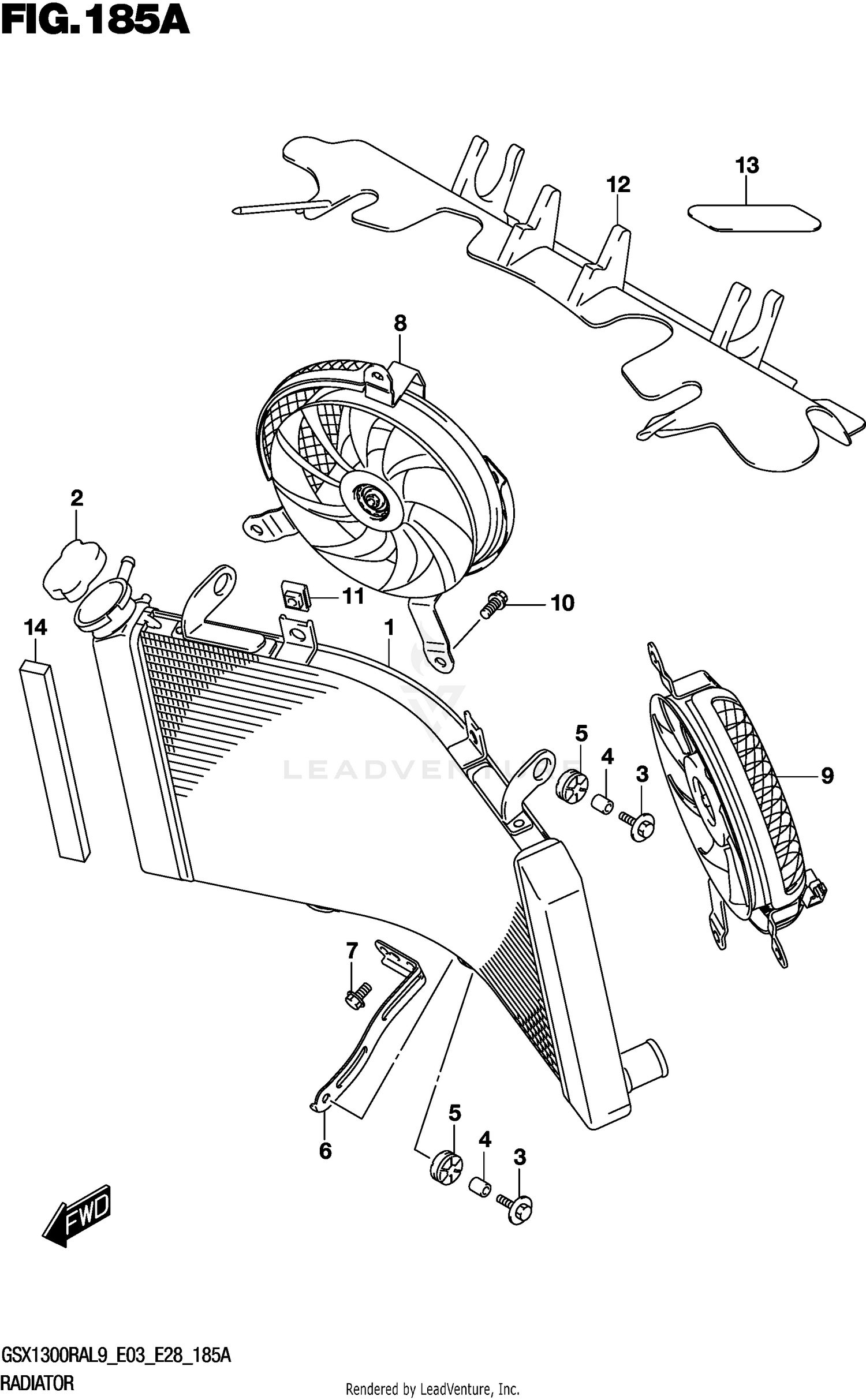

RADIATOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 17710-15H10 | RADIATOR ASSY, WATER Price: $1,209.13 |
| 2 | 17730-08J00 | CAP, RADIATOR Price: $52.50 |
| 3 | 09118-06097 | BOLT (6X25) Price: $3.02 |
| 4 | 09180-06290 | SPACER (6.5X10X12) Price: $2.45 |
| 5 | 09320-10051 | CUSHION Price: $3.80 |
| 6 | 17750-24F00 | BRACKET, RADIATOR LOWER Price: $11.83 |
| 7 | 01550-0612A | BOLT Price: $2.37 |
| 8 | 17810-15H00 | FAN ASSY, RADIATOR RH Price: $501.50 |
| 9 | 17820-15H00 | FAN ASSY, RADIATOR LH Price: $583.04 |
| 10 | 17711-08J00 | BOLT, FAN ASSY Price: $6.01 |
| 11 | 17712-40F00 | NUT,FAN ASSY Price: $5.96 |
| 12 | 17771-15H00 | SHIELD, HEAT Price: $39.84 |
