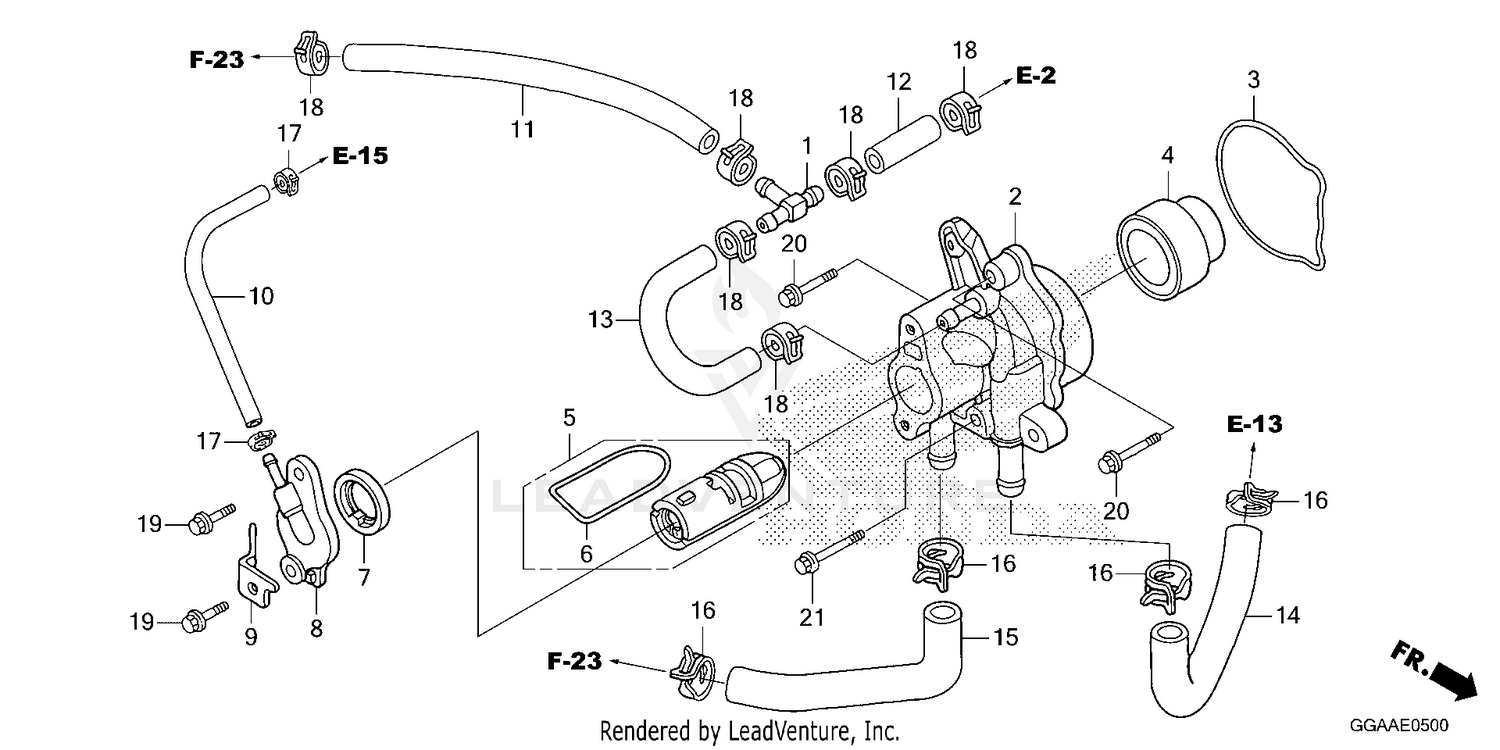

| Ref | Part Number | Description |
|---|
| 1 |
16961-MCT-010 |
JOINT, THREE WAY Price: $14.05 |
| 2 |
19210-GET-003 |
WATER PUMP Price: $112.60 |
| 3 |
19216-GET-000 |
GASKET, WATER PUMP BODY Price: $6.64 |
| 4 |
19230-GET-003 |
MAGNET (OUTER) Price: $38.51 |
| 5 |
19300-GET-013 |
THERMOSTAT ASSY. Price: $38.09 |
| 6 |
19301-GET-000 |
O-RING Price: $2.84 |
| 7 |
19305-GET-013 |
RUBBER, SEAL Price: $5.24 |
| 8 |
19315-GET-010 |
COVER, THERMOSTAT Price: $14.73 |
| 9 |
19317-GET-000 |
STAY, HARNESS CLIP Price: $3.67 |
| 10 |
19320-GET-000 |
TUBE A Price: $7.04 |
| 11 |
19330-GET-000 |
TUBE C, AIR BREATHER Price: $10.65 |
| 12 |
19331-GET-000 |
TUBE D, AIR BREATHER Price: $2.98 |
| 13 |
19332-GET-000 |
TUBE E, AIR BREATHER Price: $7.04 |
| 14 |
19501-GET-000 |
HOSE A, WATER Price: $10.27 |
| 15 |
19502-GET-000 |
HOSE B, WATER Price: $10.27 |
| 16 |
90701-MF5-003 |
CLAMP, WATER HOSE (21MM) Price: $6.45 |
| 17 |
95002-40850-08 |
CLAMP, TUBE (D8.5) Price: $2.65 |
| 18 |
95002-41050-08 |
CLAMP, TUBE (D10.5) Price: $2.65 |
| 19 |
96001-06020-00 |
BOLT, FLANGE (6X20) Price: $1.42 |
| 20 |
96001-06022-00 |
BOLT, FLANGE (6X22) Price: $1.42 |
