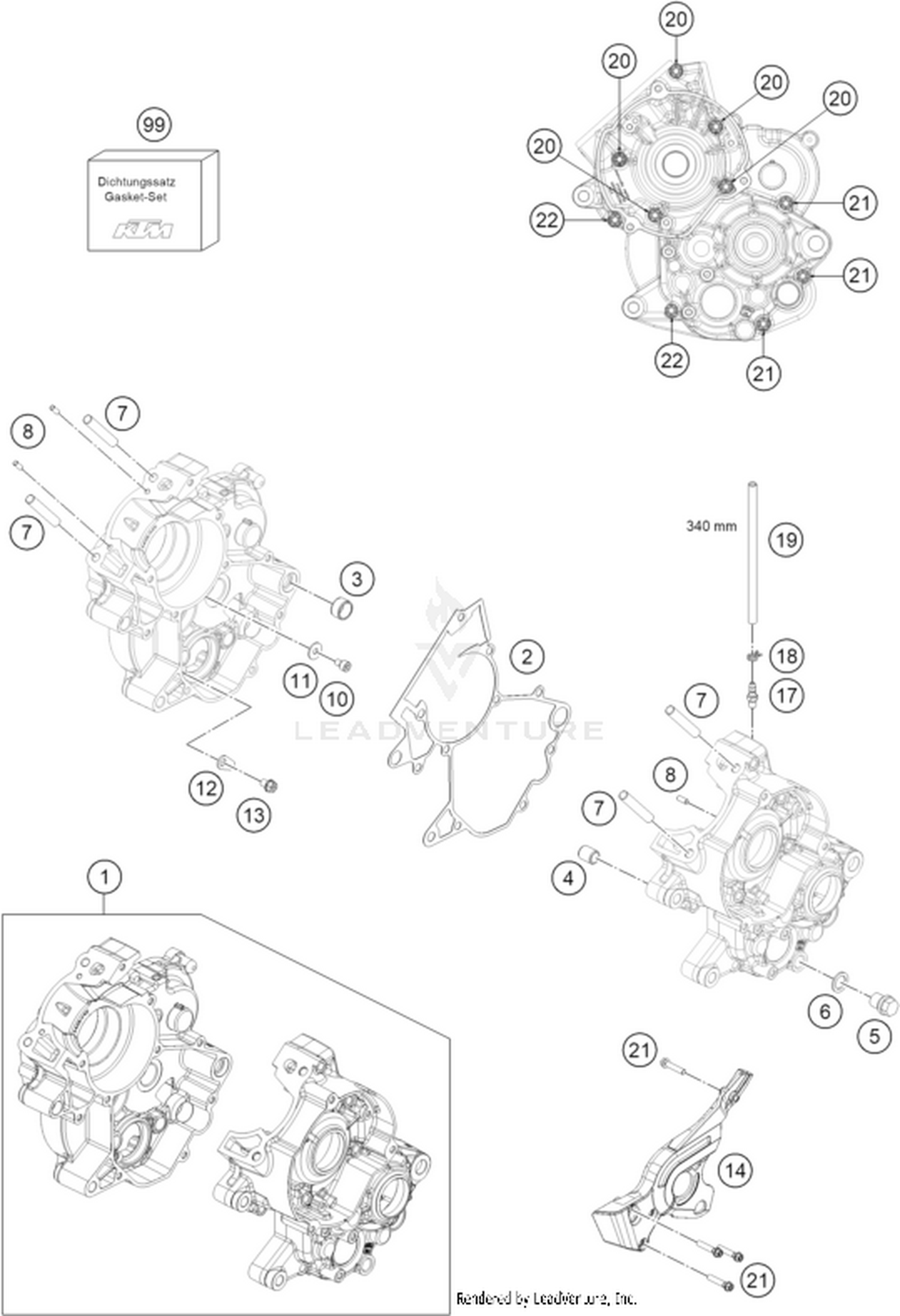

30 ENGINE CASE

30 ENGINE CASE

Parts (17)

RefPart NumberDescription
1 A40530000044 Motor Housing cpl. with bearin Price: Call Us
2 46230039000 ENGINE CASE GASKET Price: Call Us
3 58330023000 DOWEL 17 X 14 X 9,5 Price: Call Us
4 46230024000 DOWEL 12X9X14,5 Price: Call Us
6 58038022000 CU-seal ring DIN7603-12X18X1.5 Price: Call Us
7 0835080326 STUD DIN 835 M8X32 Price: Call Us
8 0402040980 Needle roll.DIN5402 NRB 4X9.8 Price: Call Us
10 0912050083 SHCS DIN 912 M5x8 Price: Call Us
12 54634049000 RETAINING PLATE Price: Call Us
13 0025060106S Hex collar screw M6x10 ISA30 S Price: Call Us
14 A40503096000 Front sprocket cover Price: Call Us
17 58336020190 VACUUM CONECTION M6/3MM '97 Price: Call Us
18 45230089000 YDNAC-CLAMP 10068 (6,8MM) Price: Call Us
19 31007007101 PVC-HOSE 4X6MM Price: Call Us
20 0025060556 HH collar screw M6x55 TX30 Price: Call Us
21 0025060306 HH collar screw M6x30 TX30 Price: Call Us
22 0025060406 HH collar screw M6x40 TX30 Price: Call Us
