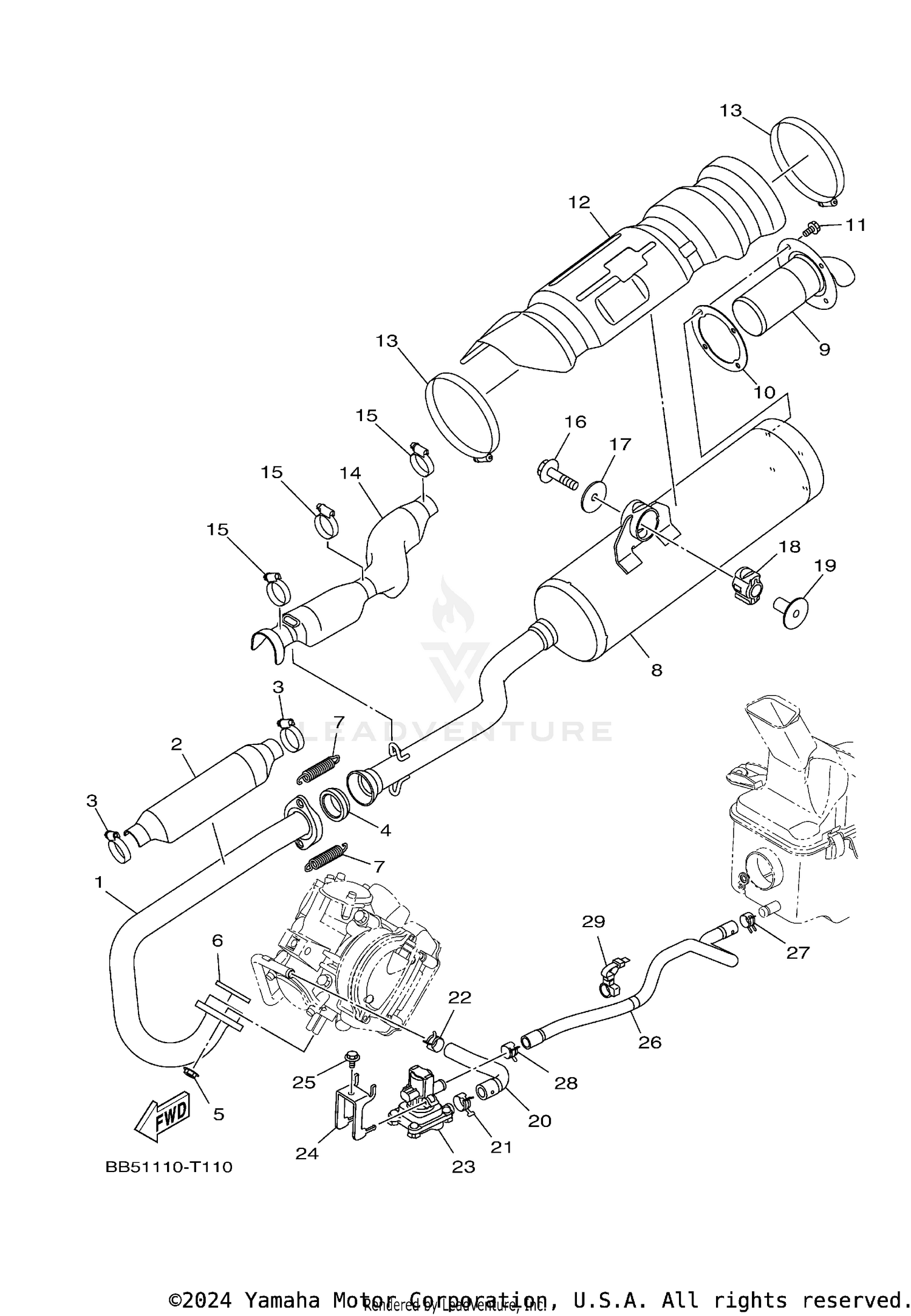

| Ref | Part Number | Description |
|---|
| 1 |
BB5-E4611-01-00 |
PIPE, EXHAUST 1 Price: $84.99 |
| 2 |
BB5-E4628-00-00 |
PROTECTOR, EXHAUST PIPE Price: $25.99 |
| 3 |
90450-38003-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 4 |
BB5-E4714-00-00 |
GASKET, MUFFLER Price: $35.99 |
| 5 |
95702-08500-00 |
NUT, WITH WASHER Price: $1.05 |
| 6 |
3GD-14613-00-00 |
GASKET, EXHAUST PIPE Price: $15.49 |
| 7 |
90506-26012-00 |
SPRING, TENSION Price: $15.49 |
| 8 |
DD5-E4711-00-00 |
MUFFLER 1 Price: $367.99 |
| 9 |
2BG-E4780-00-00 |
SPARK ARRESTER ASSY Price: $75.99 |
| 10 |
2BG-E4755-00-00 |
GASKET, SILENCER Price: $23.99 |
| 11 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 12 |
BB5-E4718-00-00 |
PROTECTOR, MUFFLER 1 Price: $36.99 |
| 13 |
90450-99805-00 |
HOSE CLAMP ASSY Price: $48.99 |
| 14 |
BB5-E4728-00-00 |
PROTECTOR, MUFFLER 2 Price: $39.99 |
| 15 |
90450-38003-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 16 |
95817-10050-00 |
BOLT, FLANGE This part replaces 95812-10050-00. Price: $8.49 |
| 17 |
90201-10149-00 |
WASHER, PLATE Price: $9.49 |
| 18 |
BB5-14737-00-00 |
DAMPER, MUFFLER Price: $26.99 |
| 19 |
90387-10113-00 |
COLLAR Price: $6.49 |
| 20 |
BB5-14881-00-00 |
HOSE, BEND 1 Price: $40.99 |
| 21 |
90467-20085-00 |
CLIP Price: $10.49 |
| 22 |
90467-18179-00 |
CLIP Price: $2.55 |
| 23 |
5VK-14803-00-00 |
AIR INDUCTION SYSTEM ASSY Price: $341.99 |
| 24 |
2MB-F1159-00-00 |
BRACKET Price: $2.00 |
| 25 |
95812-06010-00 |
BOLT, FLANGE Price: $3.20 |
| 26 |
BB5-E4882-00-00 |
HOSE, BEND 2 Price: $5.99 |
| 27 |
90467-16009-00 |
CLIP Price: $6.49 |
| 28 |
90467-17128-00 |
CLIP This part replaces 90467-17089-00. Price: $9.49 |
