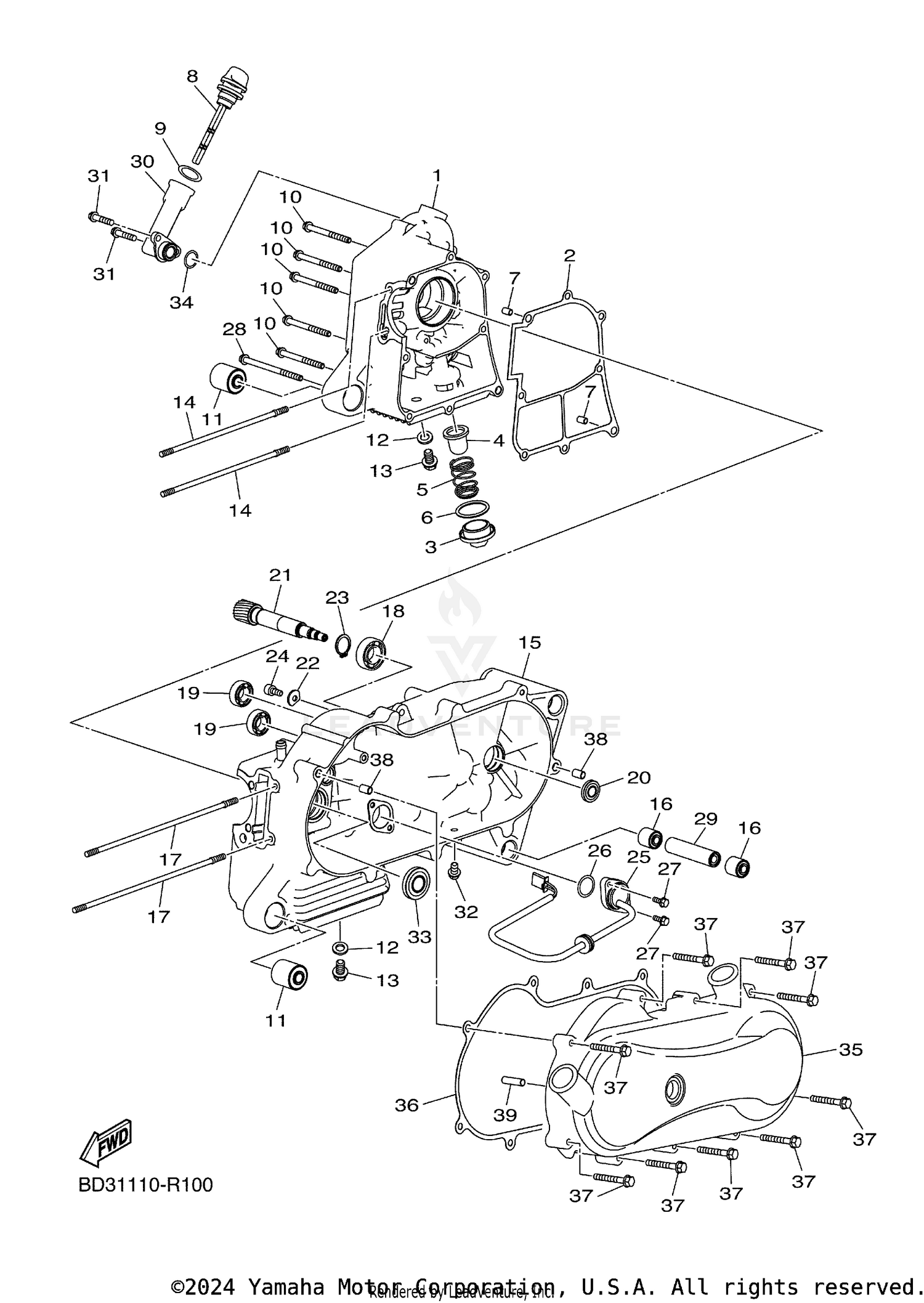

| Ref | Part Number | Description |
|---|
| 1 |
BD3-E5121-00-00 |
CRANKCASE 2 Price: $308.99 |
| 2 |
BD3-E5314-10-00 |
GASKET, CRANKCASE 1 This part replaces BD3-E5314-00-00. Price: $33.99 |
| 3 |
BD3-E5351-00-00 |
PLUG, DRAIN Price: $25.99 |
| 4 |
BD3-E3411-00-00 |
STRAINER, OIL Price: $17.49 |
| 5 |
BD3-E3469-00-00 |
SPRING Price: $4.95 |
| 6 |
BD3-E119B-00-00 |
O-RING Price: $11.49 |
| 7 |
BD3-E3516-00-00 |
PIN, DOWEL Price: $5.49 |
| 8 |
BD3-E5362-00-00 |
PLUG, OIL LEVEL Price: $15.49 |
| 9 |
BD3-E2843-00-00 |
O-RING Price: $6.49 |
| 10 |
BD3-H1826-10-00 |
BOLT Price: $4.55 |
| 11 |
BD3-E4844-00-00 |
DAMPER Price: $22.99 |
| 12 |
BD3-E5158-00-00 |
WASHER Price: $4.05 |
| 13 |
BD3-G2544-10-00 |
BOLT Price: $8.49 |
| 14 |
BD3-G2742-10-00 |
BOLT Price: $18.49 |
| 15 |
BD3-E5111-10-00 |
CRANKCASE 1 Price: $825.99 |
| 16 |
BD3-E5328-00-00 |
SPACER, DAMPER Price: $13.49 |
| 17 |
BD3-G3143-10-00 |
BOLT Price: $18.49 |
| 18 |
BD3-E1428-00-00 |
BEARING 1 Price: $48.99 |
| 19 |
BD3-E1429-00-00 |
BEARING 2 Price: $33.99 |
| 20 |
BD3-E511A-00-00 |
OIL SEAL Price: $14.49 |
| 21 |
BD3-E6111-00-00 |
GEAR, PRIMARY DRIVE Price: $187.99 |
| 22 |
BD3-E511B-10-00 |
OIL SEAL Price: $5.99 |
| 23 |
BD3-E5744-00-00 |
CIRCLIP Price: $2.85 |
| 24 |
BD3-G3886-10-00 |
BOLT Price: $4.25 |
| 25 |
BD3-H2540-10-00 |
NEUTRAL SWITCH ASSY This part replaces BD3-H2540-00-00. Price: $71.99 |
| 26 |
BD3-E2439-00-00 |
O-RING Price: $8.49 |
| 27 |
BD3-G4581-10-00 |
BOLT Price: $2.45 |
| 28 |
BD3-G5154-10-00 |
BOLT Price: $5.99 |
| 29 |
BD3-E5327-10-00 |
SPACER, ENGINE MOUNT Price: $39.99 |
| 30 |
BD3-E5112-00-00 |
PIPE, OIL Price: $78.99 |
| 31 |
BD3-E2623-10-00 |
BOLT Price: $4.35 |
| 32 |
BD3-G5241-10-00 |
BOLT, FLANGE W/WASHER Price: $5.49 |
| 33 |
BD3-E5315-00-00 |
SEAL, CRANKCASE Price: $36.99 |
| 34 |
BD3-E5114-00-00 |
O-RING Price: $5.99 |
| 35 |
BD3-E5411-10-00 |
COVER, CRANKCASE 1 Price: $327.99 |
| 36 |
BD3-E5451-10-00 |
GASKET, CRANKCASE COVER 1 This part replaces BD3-E5451-00-00. Price: $45.99 |
| 37 |
BD3-G1148-10-00 |
BOLT Price: $4.25 |
| 38 |
BD3-E3516-00-00 |
PIN, DOWEL Price: $5.49 |
